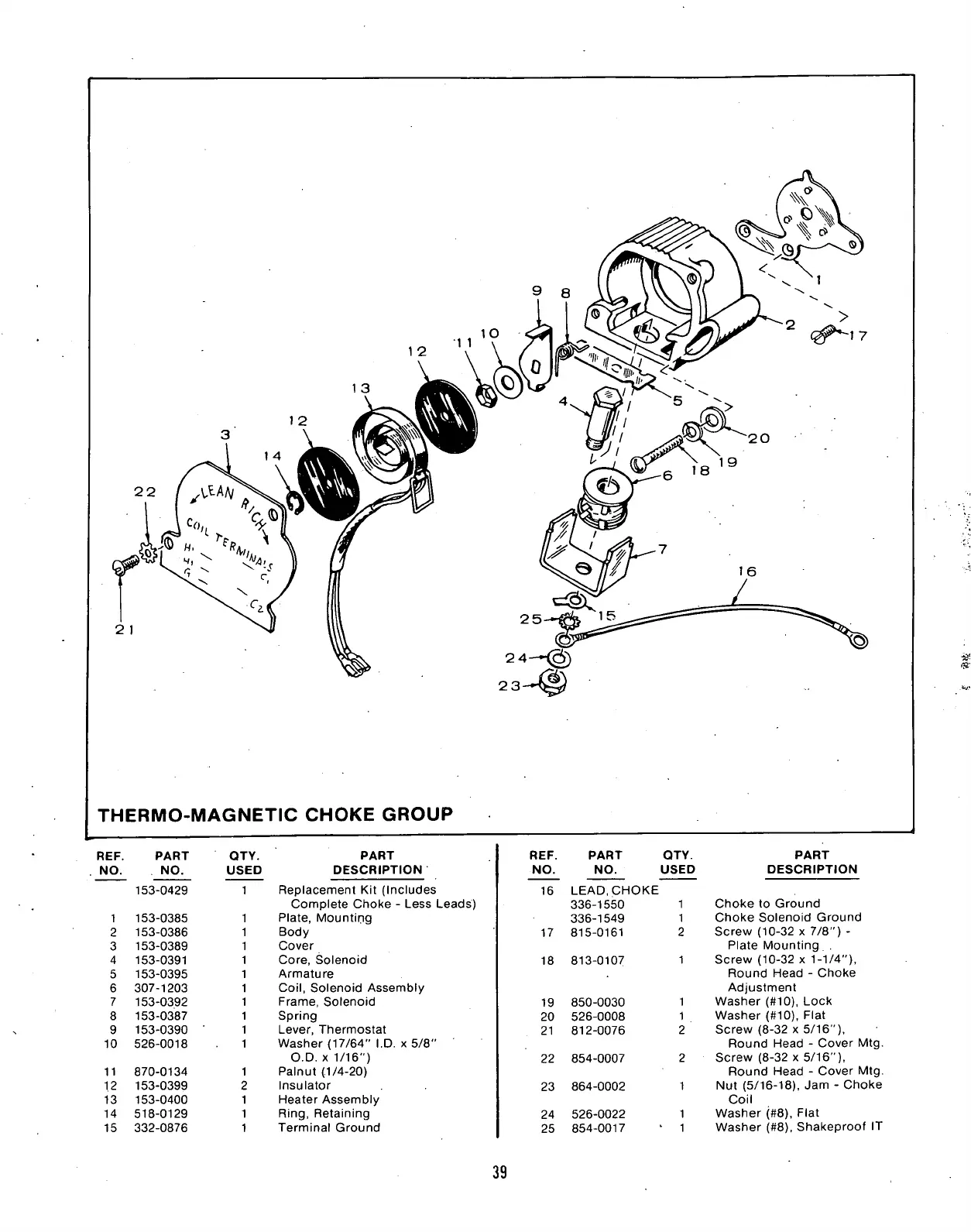

REF.
PART
QTY.
PART
REF.
PART
QTY.
PART
NO. NO.
USED
DESCRIPTION
NO. NO.
USED
DESCRIPTION
153-0429
1
Replacement Kit (Includes
Complete Choke - Less Leads)
16
LEAD,
CHOKE
336-1550
1 Choke to Ground
1
153-0385
1
Plate,
Mounting
336-1549 1
Choke Solenoid Ground
2
153-0386
1
Body
17 815-0161
2
Screw (10-32 x 7/8") -
3
153-0389
1
Cover
Plate Mounting .
4
153-0391
1
Core,
Solenoid
18
813-0107
1
Screw (10-32 x
1-1/4"),
5
153-0395
1
Armature
Round Head - Choke
6 307-1203
1
Coil,
Solenoid Assembly
Adjustment
7
153-0392
1
Frame, Solenoid
19
850-0030
1
Washer (#10), Lock
8 153-0387
1
Spring
20
526-0008
1
Washer (#10), Flat
9
153-0390 '
1
Lever,
Thermostat
21
812-0076
2
Screw (8-32 x 5/16"),
10 526-0018
1
Washer (17/64" I.D. x 5/8"
Round Head - Cover Mtg.
O.D. x
1/16")
22
854-0007
2
Screw (8-32 x 5/16"),
11
870-0134
1
Palnut (1/4-20)
Round Head - Cover Mtg.
12 153-0399
Insulator
23
864-0002
1
Nut (5/16-18), Jam - Choke
13
153-0400
1
Heater Assembly Coil
14
518-0129
1
Ring,
Retaining
24
526-0022
1
Washer (#8), Flat
15 332-0876
1
Terminal Ground
25
854-0017
1
Washer (#8), Shakeproof IT
39
