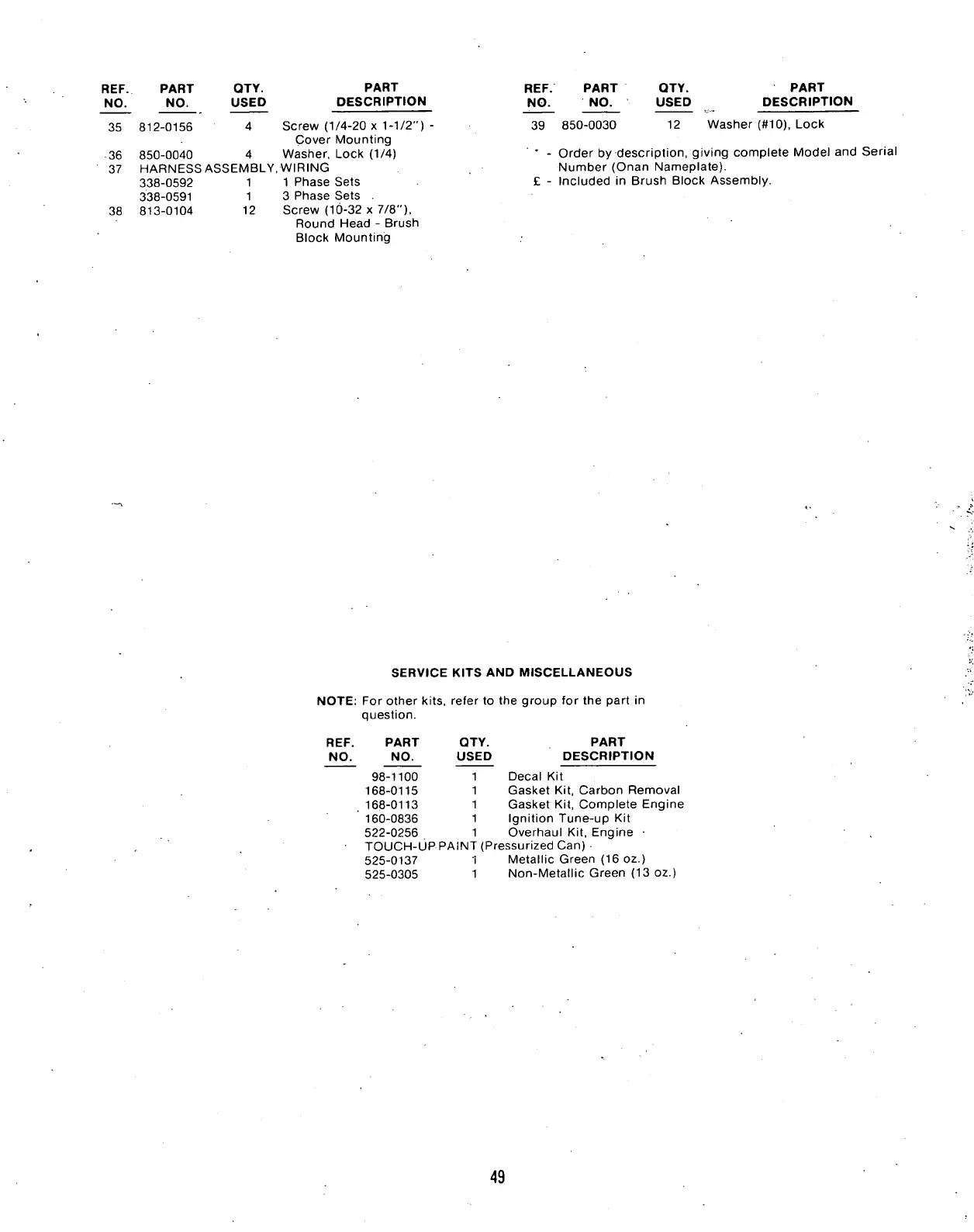

Onan NH Series User Manual

REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
35 812-0156
36
37
38
4 Screw (1/4-20 x 1-1/2")
Cover Mounting
850-0040 4 Washer, Lock (1/4)
HARNESS ASSEMBLY, WIRING
338-0592 1 1 Phase Sets
338-0591 1 3 Phase Sets .
813-0104 12 Screw (10-32 x 7/8"),
Round Head - Brush
Block Mounting
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
39 850-0030
12 Washer (#10), Lock
* - Order by description, giving complete Model and Serial
Number (Onan Nameplate).
£ - Included in Brush Block Assembly.
SERVICE KITS AND MISCELLANEOUS
NOTE:
For other kits.
refer to the group for the part in
question.
REF.
PART QTY.
PART
NO. NO.
USED
DESCRIPTION
98-1100 1
Decal Kit
168-0115 1
Gasket Kit, Carbon Removal
168-0113
1 Gasket Kit, Complete Engine
' 160-0836
1 Ignition Tune-up Kit
522-0256
1
Overhaul Kit, Engine •
TOUCH-UP PAINT (Pressurized Can) •
525-0137
1
Metallic Green (16 oz.)
525-0305
1
Non-Metallic Green (13 oz.)
49

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
