Onan NH Series User Manual

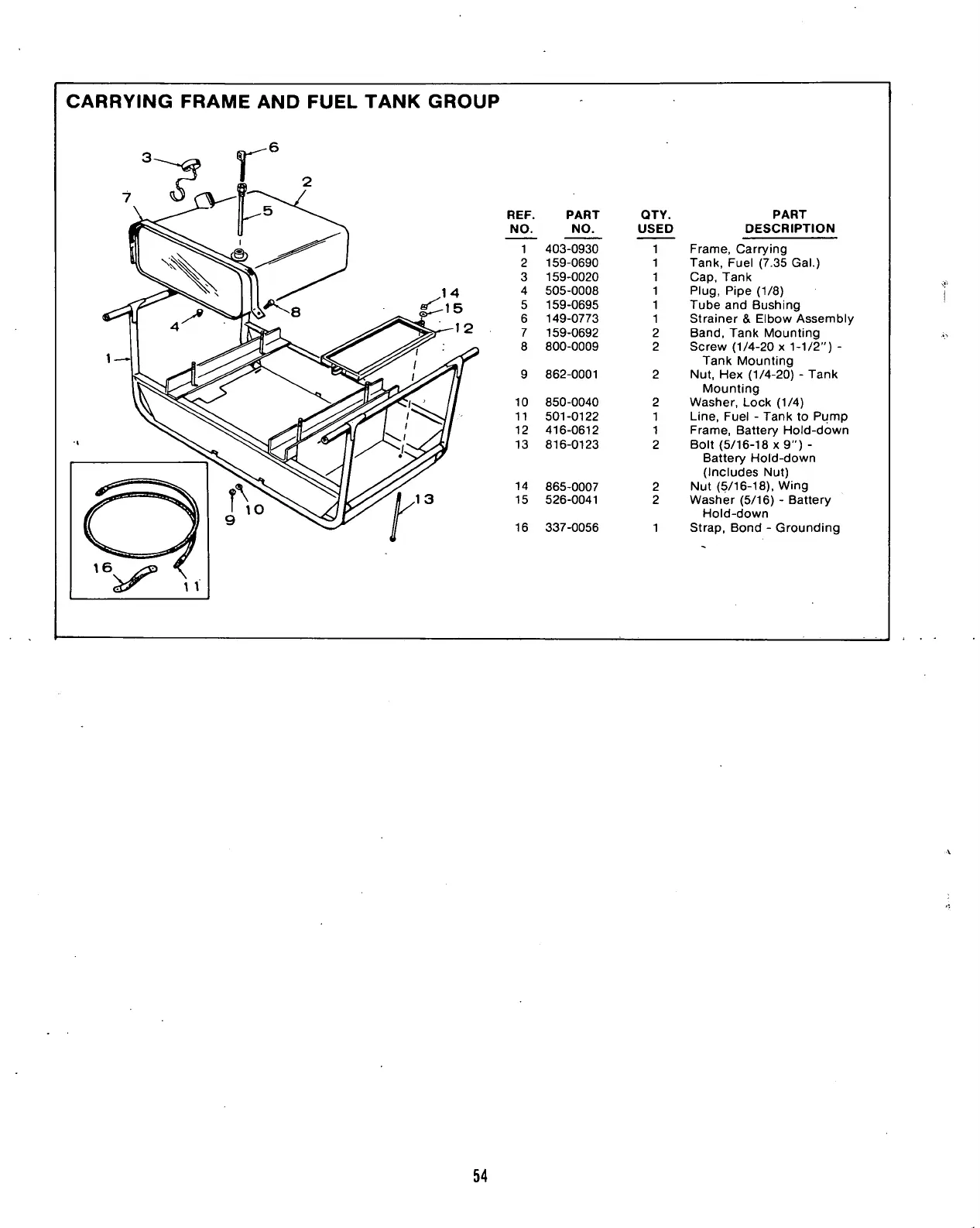

CARRYING FRAME AND FUEL TANK GROUP
REF.
NO.
1
2
3
4
5
6
7
8
PART
NO.
403-0930
159-0690
159-0020
505-0008
159-0695
149-0773
159-0692
800-0009
9 862-0001
10
11
12
13
850-0040
501-0122
416-0612
816-0123
14 865-0007
15 526-0041
16 337-0056
QTY. PART
USED DESCRIPTION
Frame, Carrying
Tank, Fuel (7.35 Gal.)
Cap, Tank
Plug, Pipe (1/8)
Tube and Bushing
Strainer & Elbow Assembly
2 Band, Tank Mounting
2 Screw (1/4-20 x 1-1/2") -
Tank Mounting
2 Nut, Hex (1/4-20) - Tank
Mounting
2 Washer, Lock (1/4)
1 Line, Fuel - Tank to Pump
1 Frame, Battery Hold-down
2 Bolt (5/16-18x9")-
Battery Hold-down
(Includes Nut)
2 Nut (5/16-18), Wing
2 Washer (5/16) - Battery
Hold-down
1 Strap, Bond - Grounding
54

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
