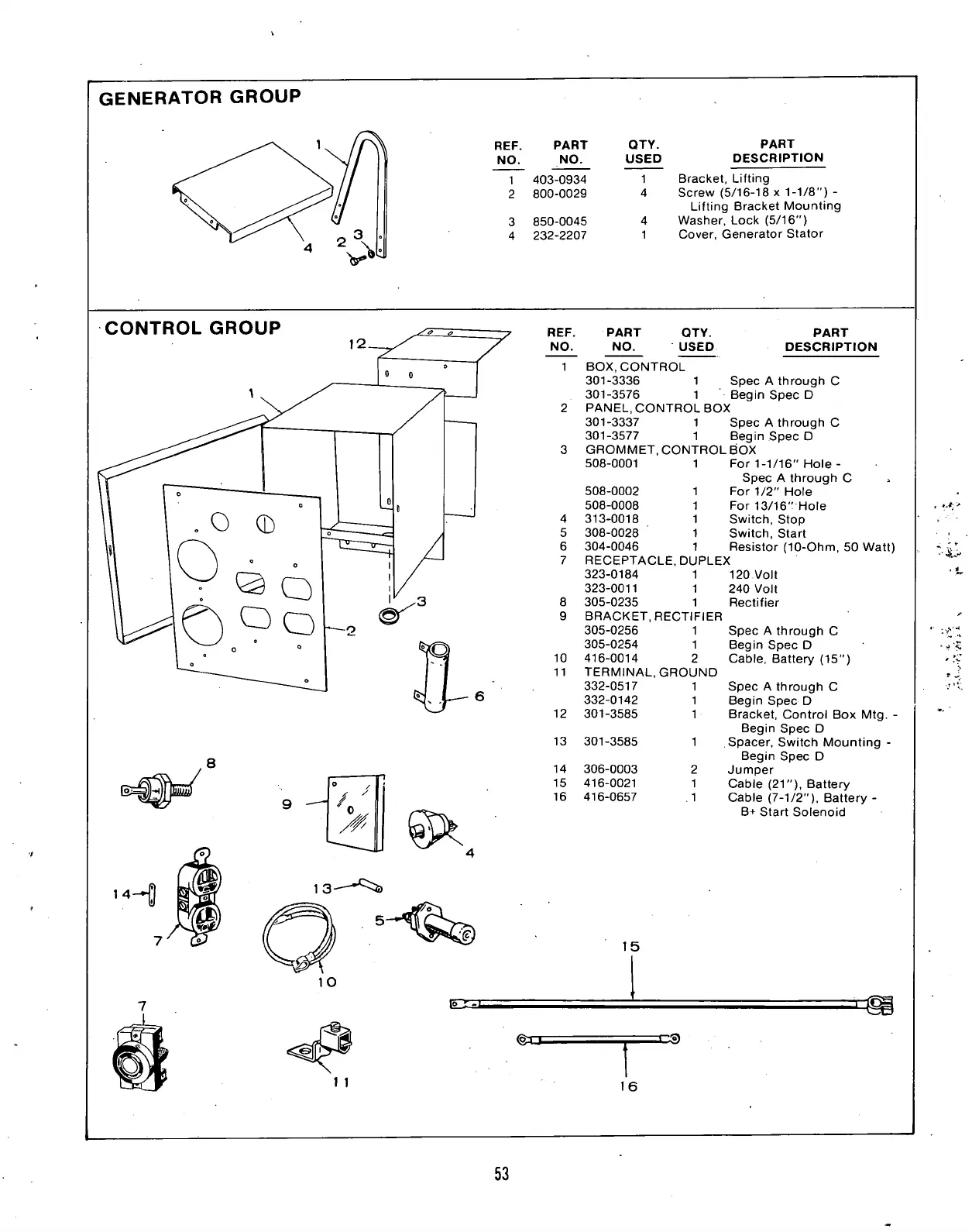

GENERATOR GROUP
REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 Bracket, Lifting
4 Screw (5/16-18 x 1-1/8") -
Lifting Bracket Mounting
3 850-0045 4 Washer, Lock (5/16")
4 232-2207 1 Cover, Generator Stator
1 403-0934
2 800-0029
CONTROL GROUP
0 0
8
1 4-
REF.
NO.
10
11
12
13
14
15
16
PART
QTY. PART
NO. USED DESCRIPTION
BOX, CONTROL
301-3336 1
Spec A through C
301-3576 1 Begin Spec D
PANEL, CONTROL BOX
301-3337
1
Spec A through C
301-3577 1 Begin Spec D
GROMMET, CONTROL BOX
508-0001
1
For 1-1/16" Hole-
Spec A through C
508-0002 1 For 1/2" Hole
508-0008 1
For 13/16" Hole
313-0018 1
Switch, Stop
308-0028 1 Switch, Start
304-0046 1
Resistor (10-Ohm, 50 Watt)
RECEPTACLE,DUPLEX
323-0184
1 120 Volt
323-0011
1 240 Volt
305-0235 1
Rectifier
BRACKET, RECTIFIER
305-0256
1
Spec A through C
305-0254 1
Begin Spec D
416-0014 2 Cable, Battery (15")
TERMINAL, GROUND
332-0517
1
Spec A through C
332-0142 1
Begin Spec D
301-3585 1 Bracket, Control Box Mtg. -
Begin Spec D
301-3585 1 Spacer, Switch Mounting -
Begin Spec D
306-0003 2 Jumper
416-0021 1 Cable (21"), Battery
416-0657 . 1 Cable (7-1/2"), Battery -
• i.
B+ Start Solenoid
15
@3
3®
16
53

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
