Onan NH Series User Manual

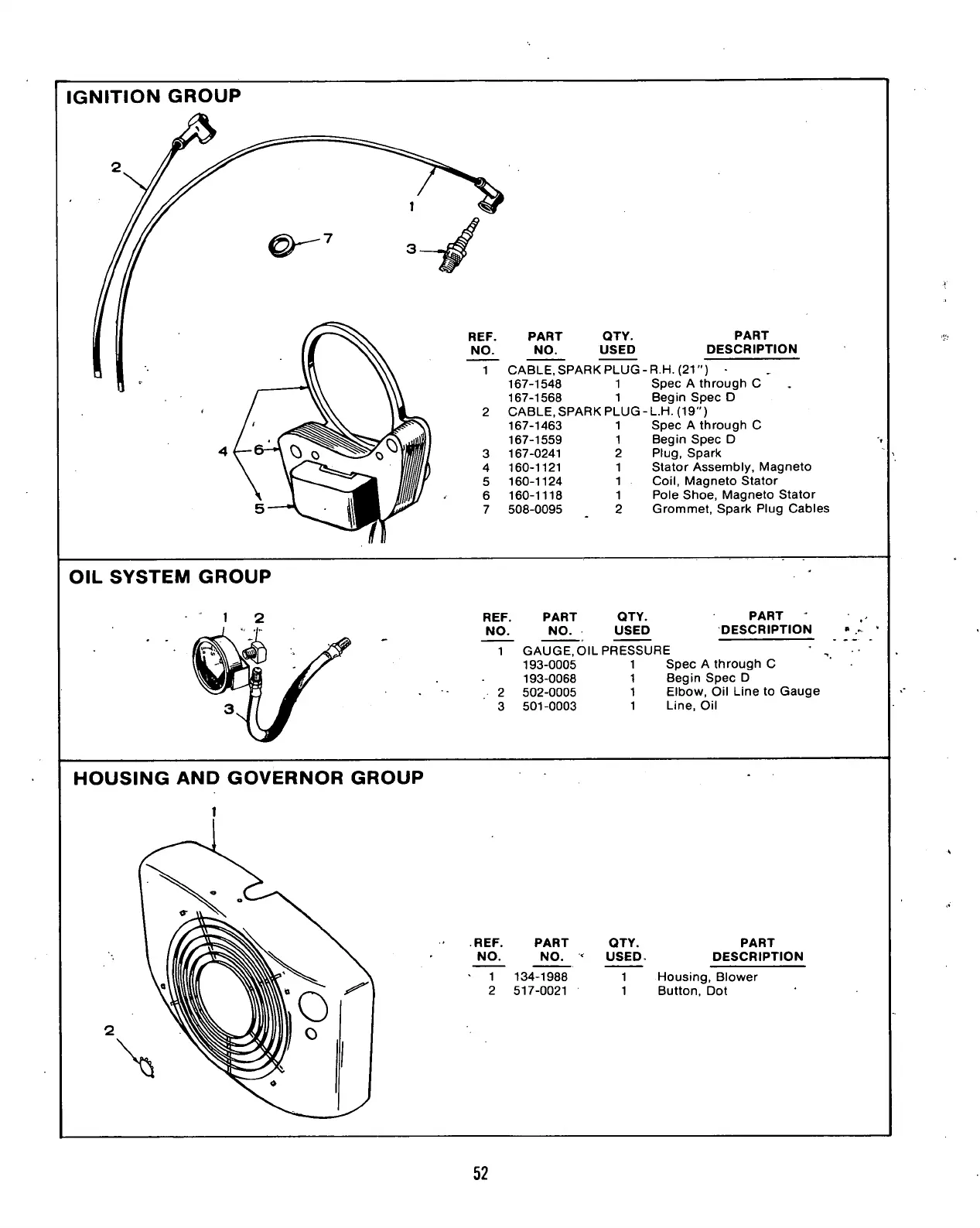

IGNITION GROUP
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
1
CABLE, SPARK PLUG
-R.H. (21") -
167-1548
1 Spec A through C
167-1568 1 Begin Spec D
2
CABLE, SPARK PLUG
-L.H. (19")
167-1463
1 Spec A through C
167-1559
1 Begin Spec D
3
167-0241 2 Plug, Spark
4
160-1121
1 Stator Assembly, Magneto
5
160-1124
1 Coil, Magneto Stator
6 160-1118
1 Pole Shoe, Magneto Stator
7 508-0095
2 Grommet, Spark Plug Cables
OIL SYSTEM GROUP
1 2
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
GAUGE, OIL PRESSURE
193-0005 1 Spec A through C
193-0068 1 Begin Spec D
502-0005 1 Elbow, Oil Line to Gauge
501-0003 1 Line, Oil
HOUSING AND GOVERNOR GROUP
i
REF.
NO.
PART
NO.
1 134-1988
2 517-0021
QTY.
USED.
1
1
PART
DESCRIPTION
Housing, Blower
Button, Dot
52

Onan NH Series Specifications

General

Frequency	60 Hz
Engine Type	4-Cycle
Fuel Type	Gasoline
Starting System	Electric
Voltage	120/240V
Noise Level	72 dB(A) at 7 meters
Fuel Consumption	0.5-1.0 gal/hr (gasoline)
