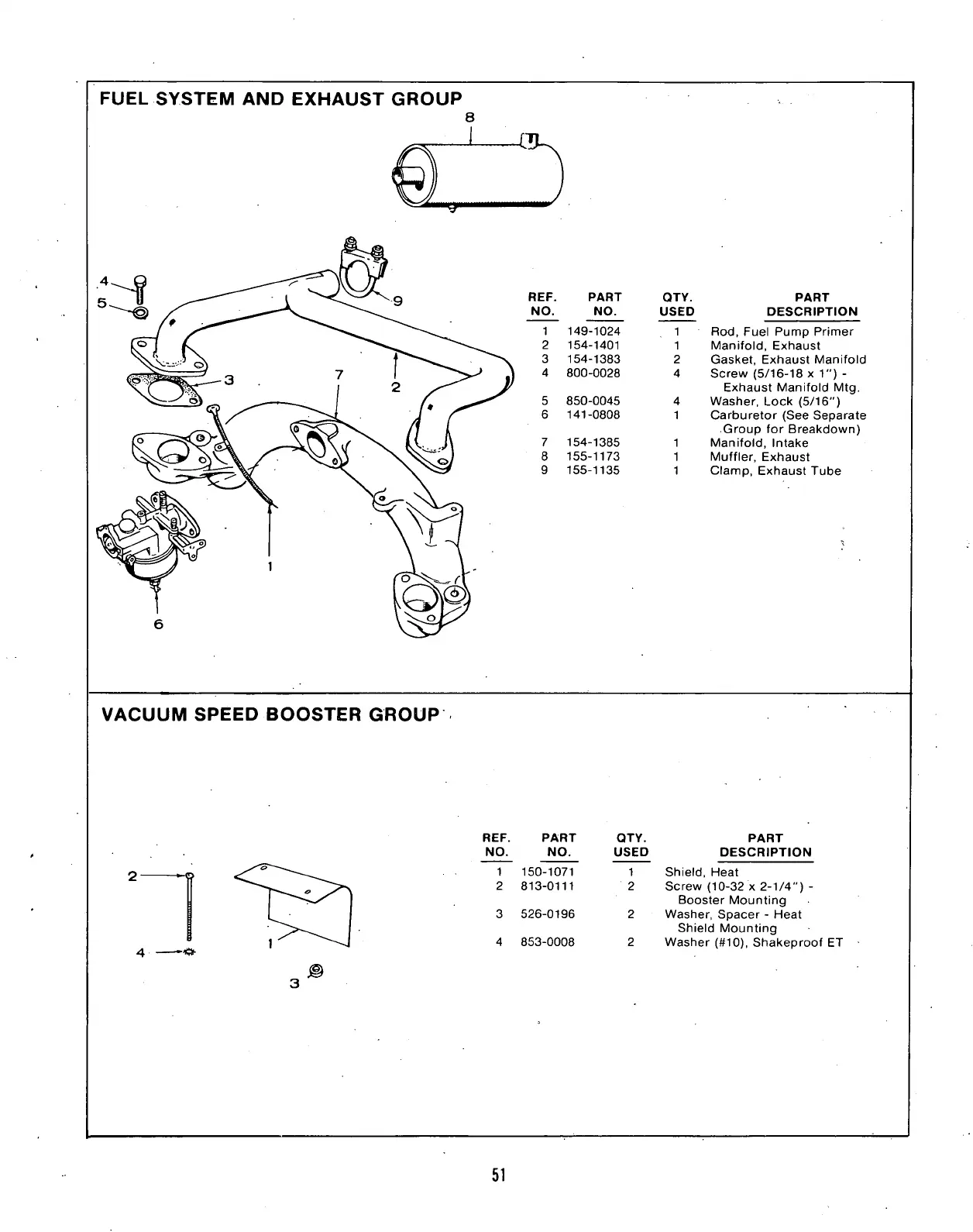

FUEL SYSTEM AND EXHAUST GROUP
8
REF. PART
QTY.
PART
NO.
NO. USED DESCRIPTION
1
149-1024
1 Rod, Fuel Pump Primer
2
154-1401
1 Manifold, Exhaust
3 154-1383 2
Gasket, Exhaust Manifold
4
800-0028 4
Screw (5/16-18 x 1") -
Exhaust Manifold Mtg.
5
850-0045 4 Washer, Lock (5/16")
6 141-0808 1
Carburetor (See Separate
Group for Breakdown)
7 154-1385 1 Manifold, Intake
8 155-1173
1 Muffler, Exhaust
9
155-1135
1 Clamp, Exhaust Tube
VACUUM SPEED BOOSTER GROUP
2
4 "»
REF. PART
QTY.
NO.
NO.
USED
1 150-1071 1
2
813-0111 2
3 526-0196 2
4
853-0008
2
PART
DESCRIPTION
Shield, Heat
Screw (10-32 x 2-1/4") -
Booster Mounting
Washer, Spacer - Heat
Shield Mounting
Washer (#10), Shakeproof ET
51
