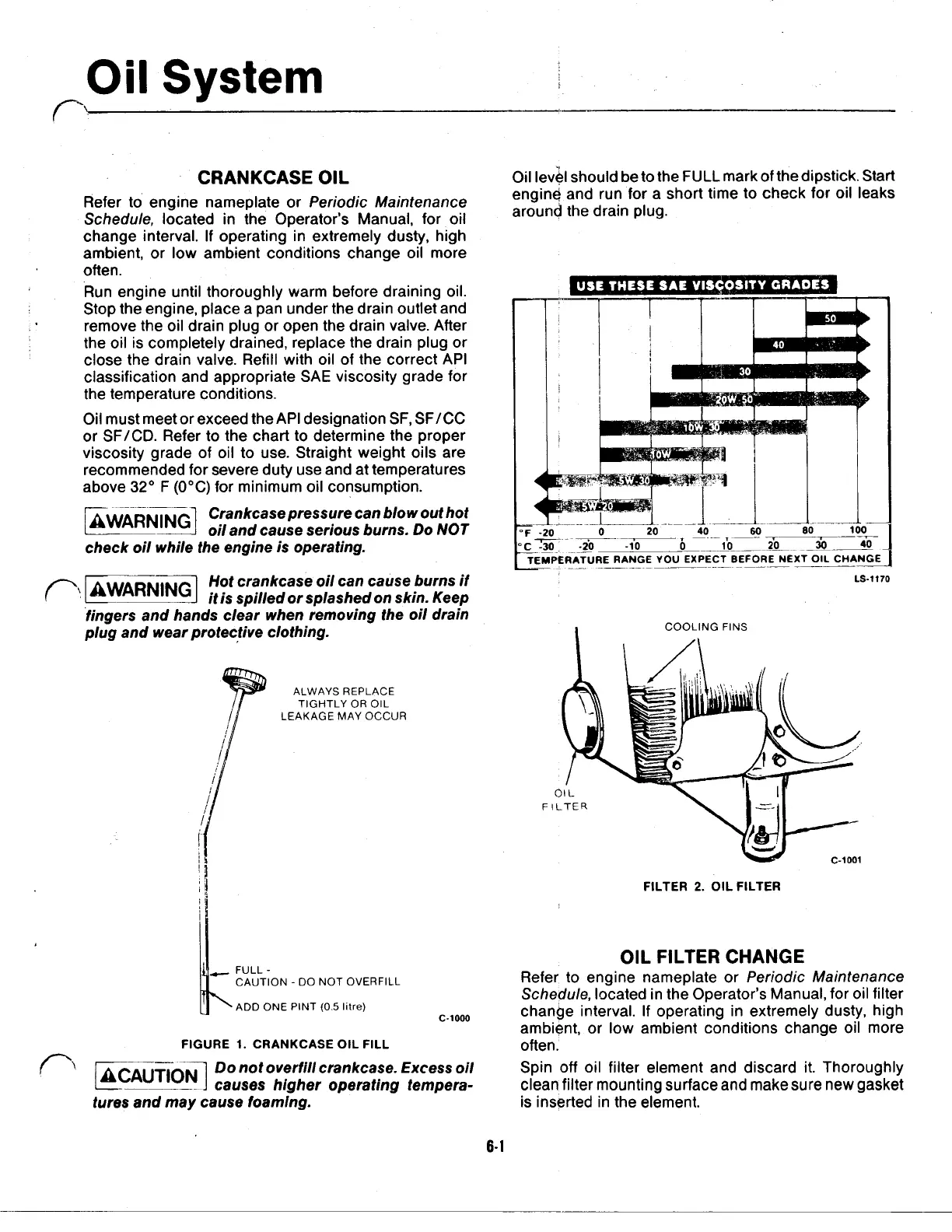

Oil
System
CRANKCASE OIL
Refer to engine nameplate or Periodic Maintenance
Schedule, located
in
the Operator's Manual, for oil
change interval. If operating in extremely dusty, high
ambient, or low ambient conditions change oil more
often.
Run engine until thoroughly warm before draining oil.
Stop the engine, place a pan under the drain outlet and
remove the oil drain plug or open the drain valve. After
the oil is completely drained, replace the drain plug or
close the drain valve. Refill with oil of the correct API
classification and appropriate SAE viscosity grade for
the temperature conditions.
Oil must meet or exceed the API designation SF, SF/CC
or SF/CD. Refer to the chart to determine the proper
viscosity grade of oil to use. Straight weight oils are
recommended for severe duty use and at temperatures
above
32"
F (0°C) for minimum oil consumption.
Crankcase pressure can blow out hot
oil and cause serious burns.
Do
NOT
WARNING
check oil while the engine is operating.
Hot crankcase oil can cause burns if
it is spilled or splashed on skin. Keep
fingers and hands clear when removing the oil drain
plug and wear protective clothing.
ALWAYS REPLACE
LEAKAGE MAY
OCCUR
TIGHTLY
OR
OIL
FIGURE
1.
CRANKCASE OIL
FILL
CAUTION
Do
not overfill crankcase. Excess oil
causes higher operating tempera-
tures and
may
cause foaming.
Oil
level should be to the
FULL
mark of the dipstick. Start
engine and run for a short time to check for oil leaks
around the drain plug.
LS-1170
I
COOLING
FINS
FILTER
FILTER
2.
OIL
FILTER
OIL FILTER CHANGE
Refer to engine nameplate or Periodic Maintenance
Schedule, located in the Operator's Manual, for oil filter
change interval. If operating in extremely dusty, high
ambient, or low ambient conditions change oil more
often.
Spin
off
oil filter element and discard it. Thoroughly
clean filter mounting surface and make sure new gasket
is inserted in the element.
6-1
