POLYURETHANE
PRE-CLEANER
SAFETY
COVER
2.
1.
2.
3.
4.
FS-1131
WASH
SQUEEZE
DRY
COAT
WITH
OIL
INSTALL
OVER
PAPER
ELEMENT

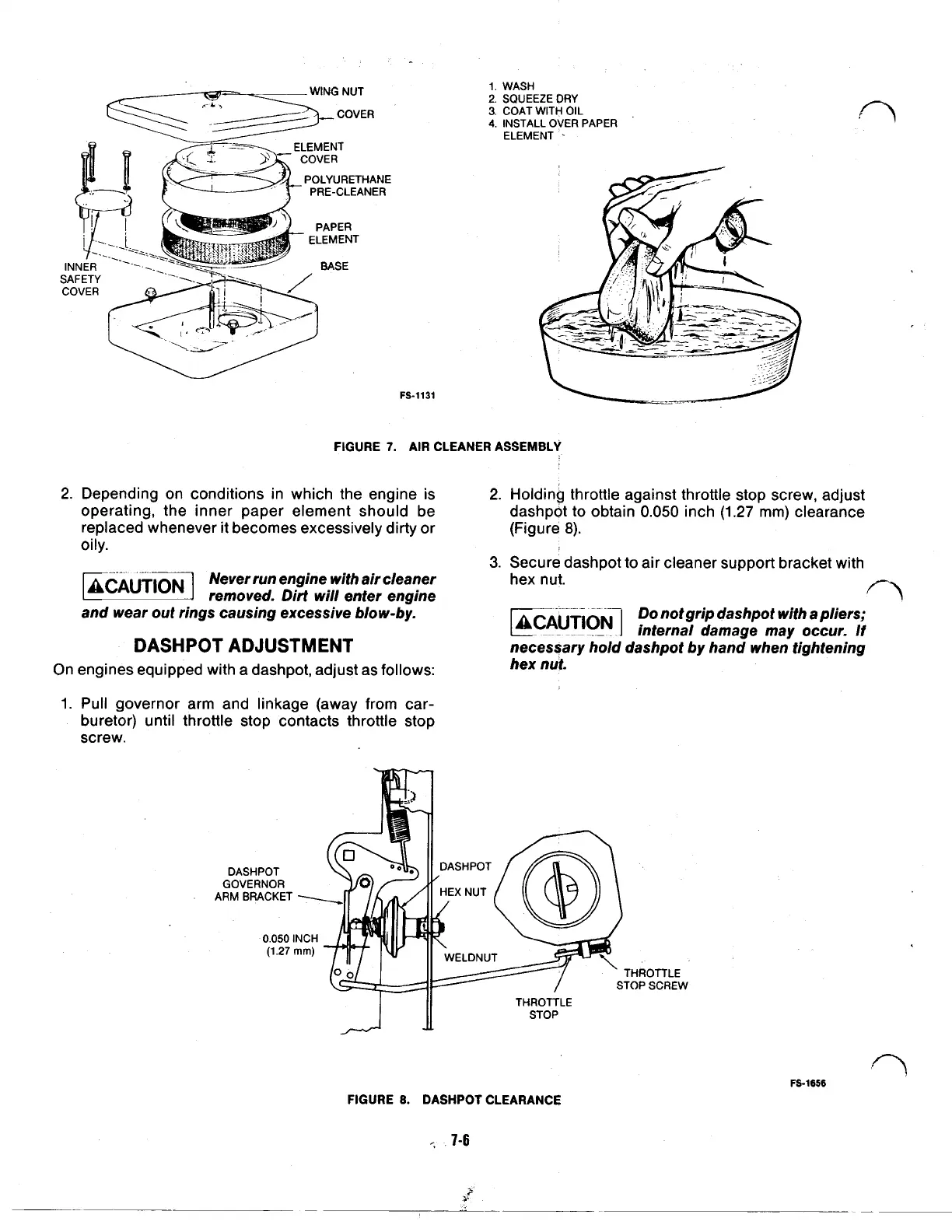

FIGURE
7.
AIR
CLEANER ASSEMBLY
Depending on conditions in which the engine is
2.
operating, the inner paper element should be
replaced whenever it becomes excessively dirty or
oily.
3.
removed. Dirt will enter engine
CAUTION
Never run engine with air cleaner
and wear
out
rings causing excessive blow-by.
DASHPOT ADJUSTMENT
On engines equipped with a dashpot, adjust as follows:
1.
Pull governor arm and linkage (away from car-
buretor) until throttle stop contacts throttle stop
screw.
Holding throttle against throttle stop screw, adjust
dashpot to obtain
0.050
inch
(1.27
mm)
clearance
(Figure
8).
Secure dashpot to air cleaner support bracket with
hex nut.
.-
CAUTION
I
Do
not grip dashpot with a pliers;
internal damage may occur. If
necessary hold dashpot by hand when tightening
hex nut.
DASHPOT
ARM
BRACKET
TOP
SCREW
THROTTLE
STOP
FIGURE
8.
DASHPOT CLEARANCE
7-6
