4.2 Console interface (CONSOLE)
4.2.1 Characteristics
• RS232,
• 9600 bps,
• 8 bits, 1 bit for stop, no parity.

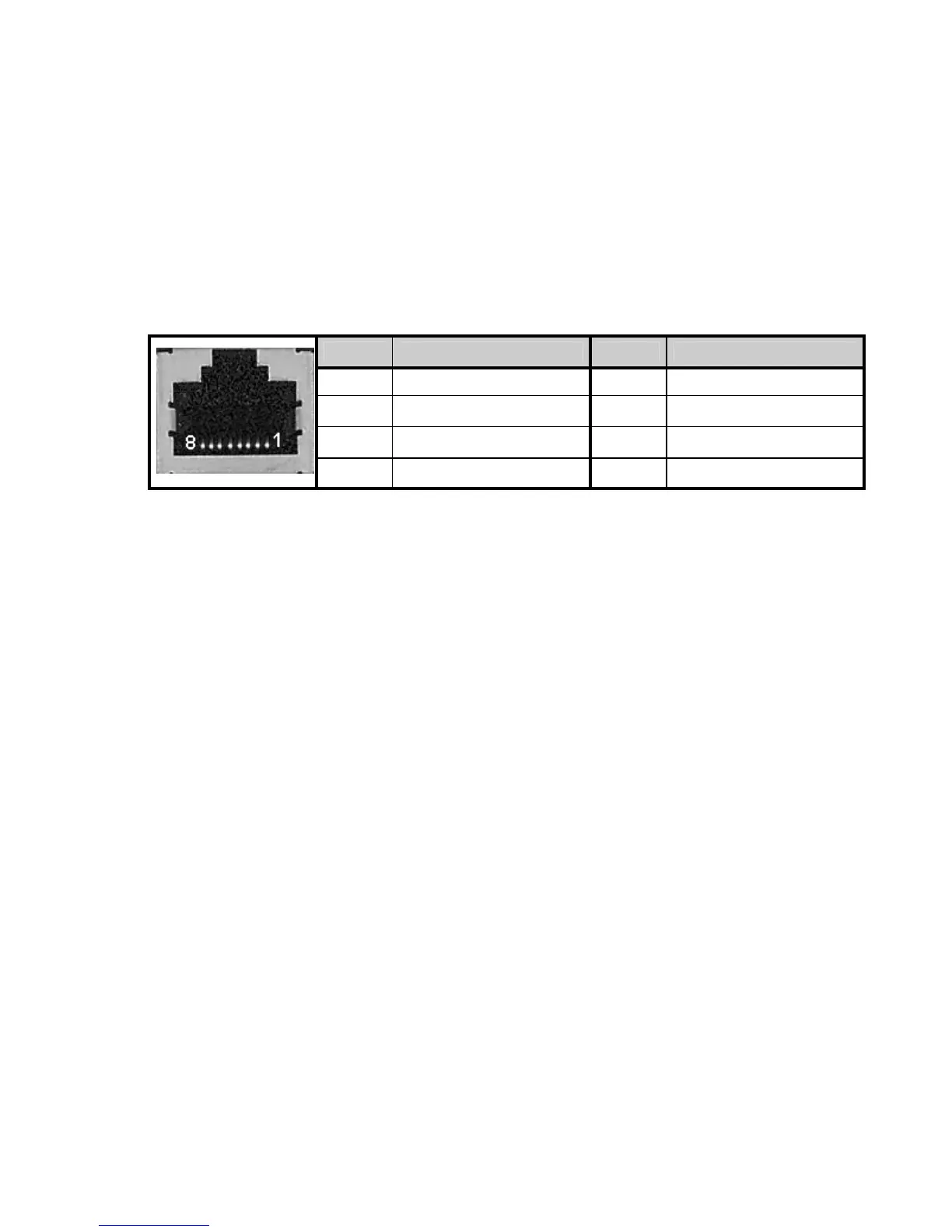

4.2.2 Connector Pinout
RJ45 connector:
Pin Signal Pin Signal
1 TX 5
NC
2 RX 6
NC
3 GND 7
NC
4 NC 8
NC
• TX: Emission
• RX: Reception
• NC: Not Connected
• GND: Ground
4.2.3 Cable
The console cable is defined in Appendix A.
