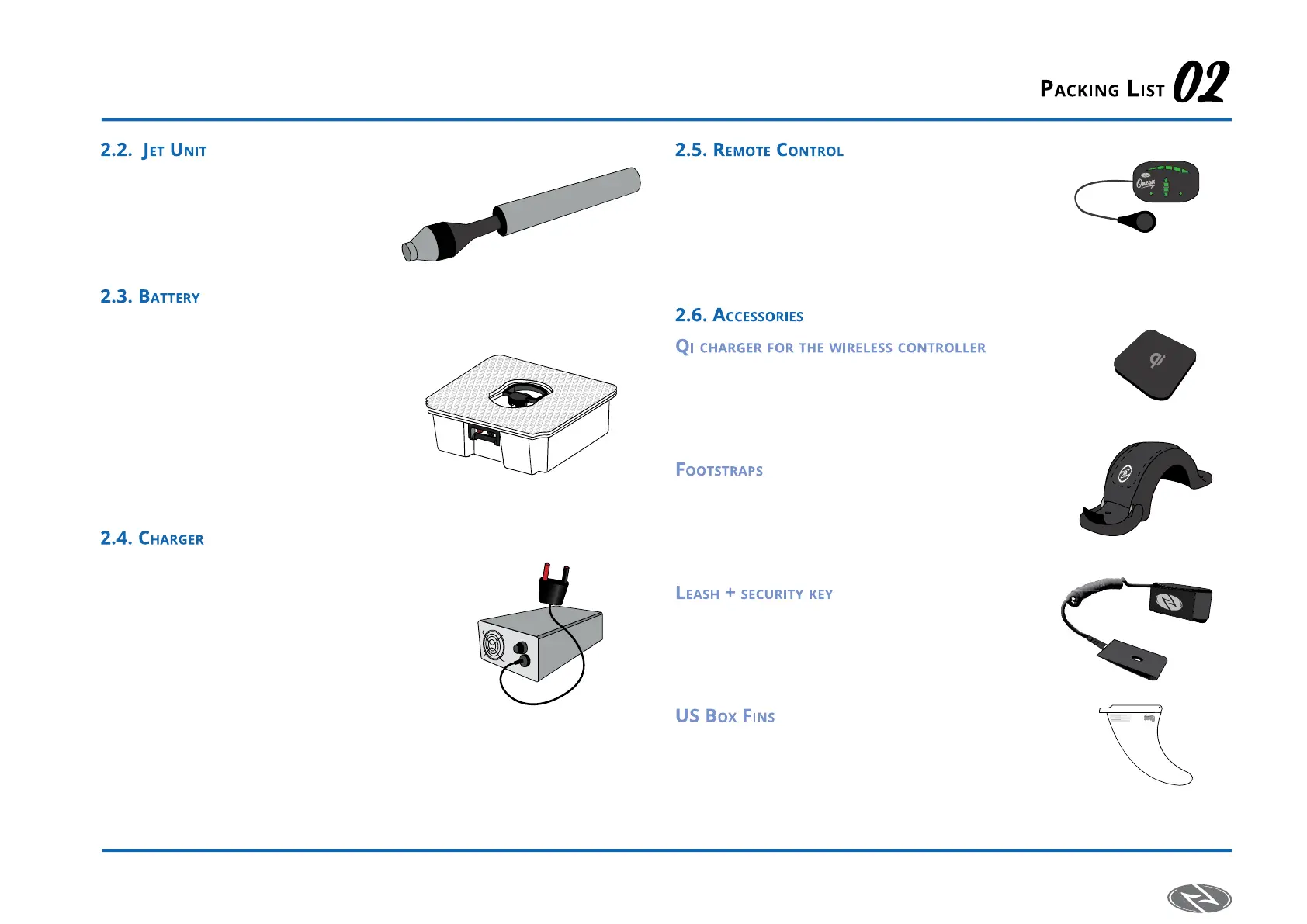

Onean Carver - Jet Unit Specifications; Battery and Charger Details; Remote Control and Accessories

CARVER USER’S MANUAL
7
• Nominal power: 5KW
• Nominal voltage: 44,4 VDC
• Static push: 240N
Short circuit, overcharge and temperature
protection. Waterproof.
• Type: multicell Litio-Ion
• Weight: 12,5kg / 26.5lbs
• Max. electric discharge: 130 A.
• Nominal capacity: 40.0 Ah
• Nominal voltage: 44.4V
Over voltage protection. Thermal
protection. Short circuit protection. Reverse
polarity protection. Charging indicator.
• Input power: 220-230Vac (*Also
available 110Vac)
• Charging current: 15 Amps
• Output voltage: 50,4 Vdc
Watertight. Thrust display. Battery display. Pressure
sensor Drop. Induction charging.
• Frequency: 2.4Ghz
• Battery: LiPo 300mAh
Qi inductive technology charger that simplifies
charging into just setting your controller down on
the charging pad. Input:5V-2A, Output: 5V-1A.
Pre-formed arch prevents collapsing. 7mm neoprene
padding. Internal adjustment system. Twist control
system.
7-Foot Coiled leash. Padded neoprene cuff . Stainless
steel swivels to stop tangles. Custom made security
magnet pull system.
Hard plastic and fi ber 6,5 inch UsBox fi ns.
SYNC BATTERY
