CARVER USER’S MANUAL
8

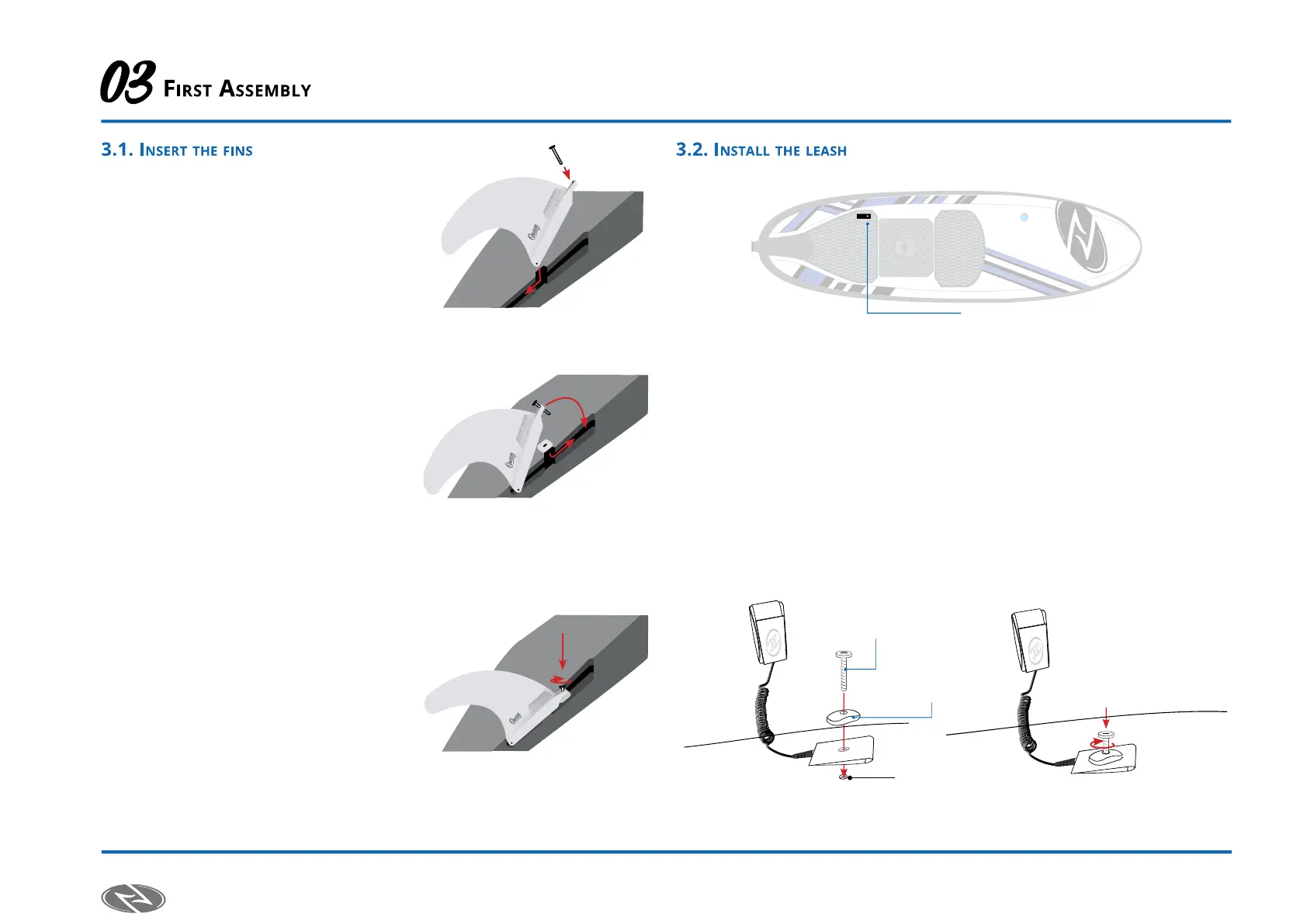

1. Insert the fin inside the finbox as
shown in the picture.
2. Insert the metallic square
in the finbox and move
it until it alignes the screw.
3. Fix the screw attaching the fin to the
board.
1. Insert the screw through the insert and hold the leash.
2. Align the holes with the leash insert located on the left hand lower side of
the board on the non-slippery surface.
3. Screw the piece to secure it.
Leash insert
Leash insert
Leash screw
Screw
insert
