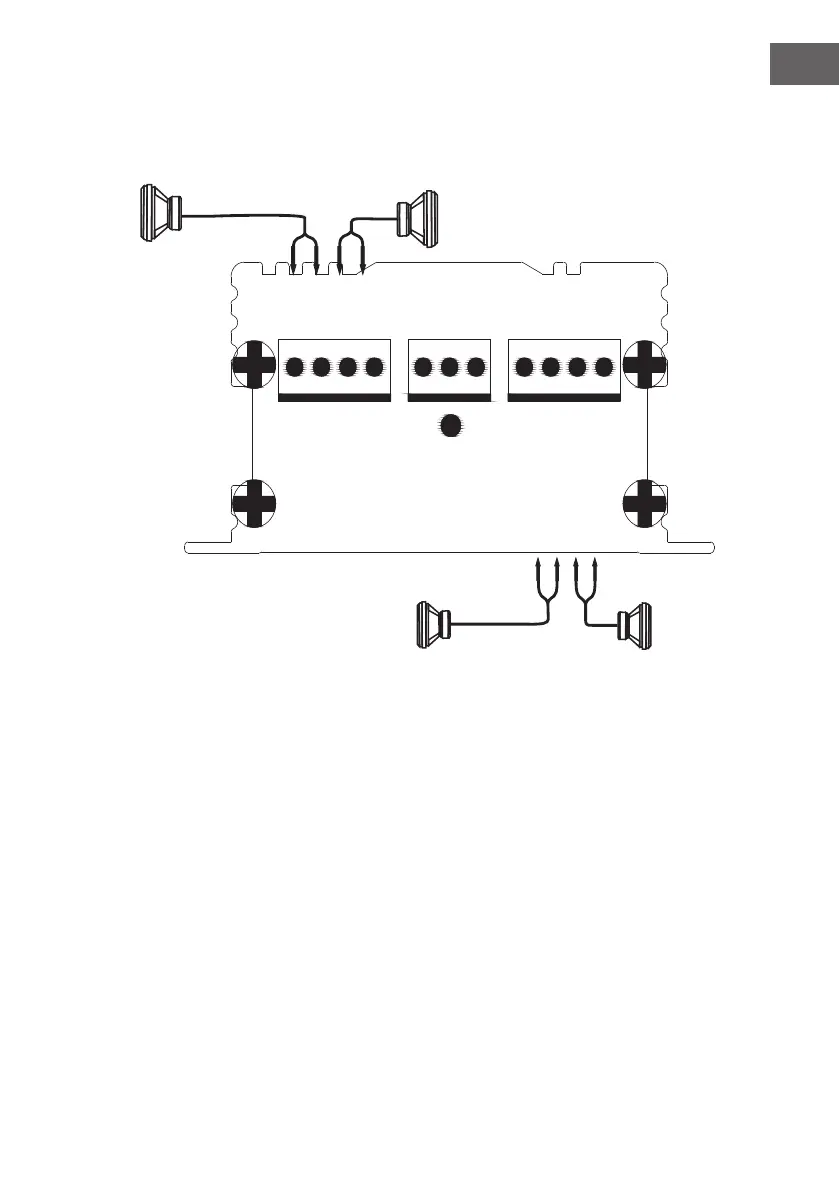

Speaker connections
4-speaker-system
In this system, the volume of the subwoofer will be controlled by the car audio
fader control. The output signals to the subwoofer are a combination of both
the REAR L and R INPUT jack or the REAR high level input connector signals.
CH3
CH4
CH1
CH2
speaker
(Min, 4 ohm)
speaker
(Min, 4 ohm)
speaker
speaker
(Min, 4 ohm)
(M
in, 4 ohm)
R
1
POWER
L
R G B+
SPEAKER 2
L R
-+ +-
+ - - +
