oneConcept X4-A4 - Functioning

22
EN

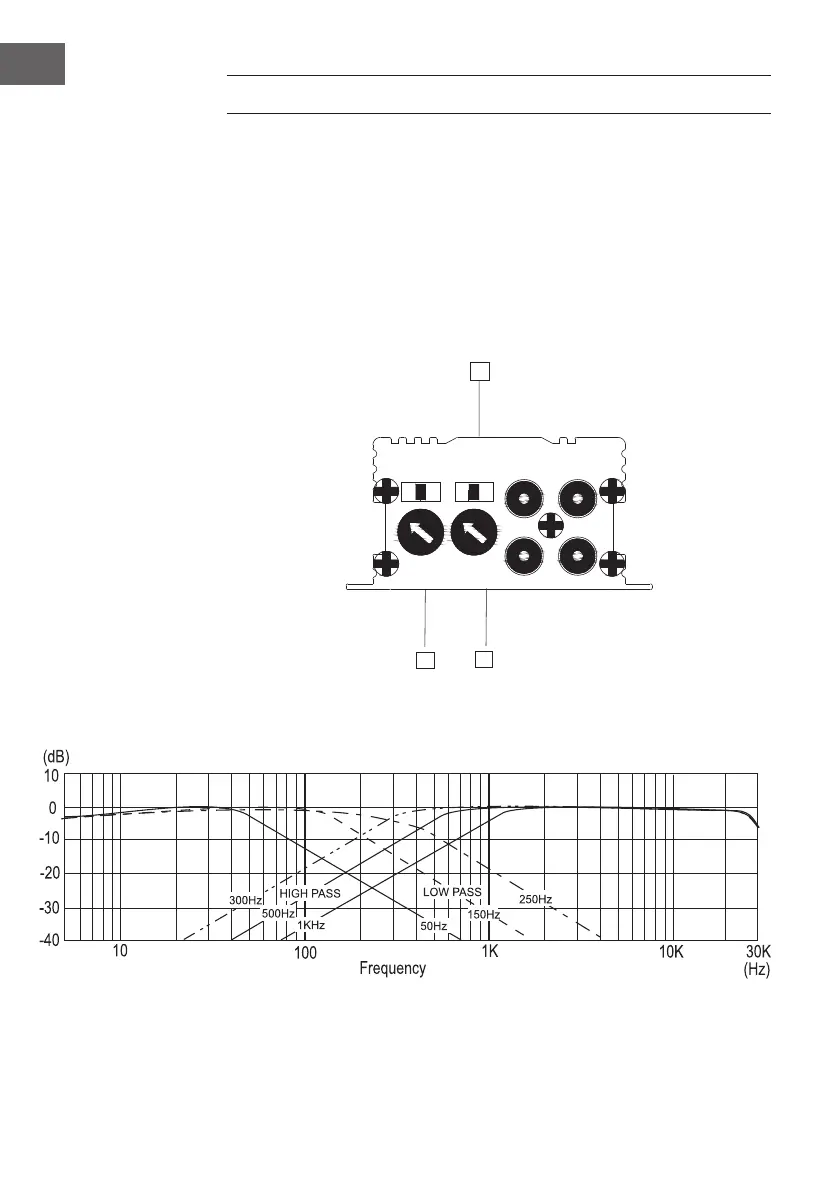

FUNCTIONING
1. POWER indicator
Lights up in green during operation.
2. FILTER selector switch
When the switch is in the LPF positions. the lter is set to low-pass. When
in the HPF position,the lter is set to high-pass.
3. LEVEL adjustment control
The input level can be adjusted with this control when using source
equipment made by other manufacturers, Tun it to MAX when the output
level of the car audio seems low.
Cut-off frequency
3
1
3
3
2
2
1
HIGH
LOW IN
FILTER
RL
LEVEL
L-OFF-H
1 LOW IN 2
FILTER
2 LEVEL 1
----R----
L-OFF-H L-OFF-H
----L----
LEVEL
R L
POWER
R G B+
POWER
+ - - +
SPEAKER
R L
R G B+
POWER
SPEAKER 2
+ - - +
1
R
+ - +-
L
