E x 4
A x 4
STEP 14

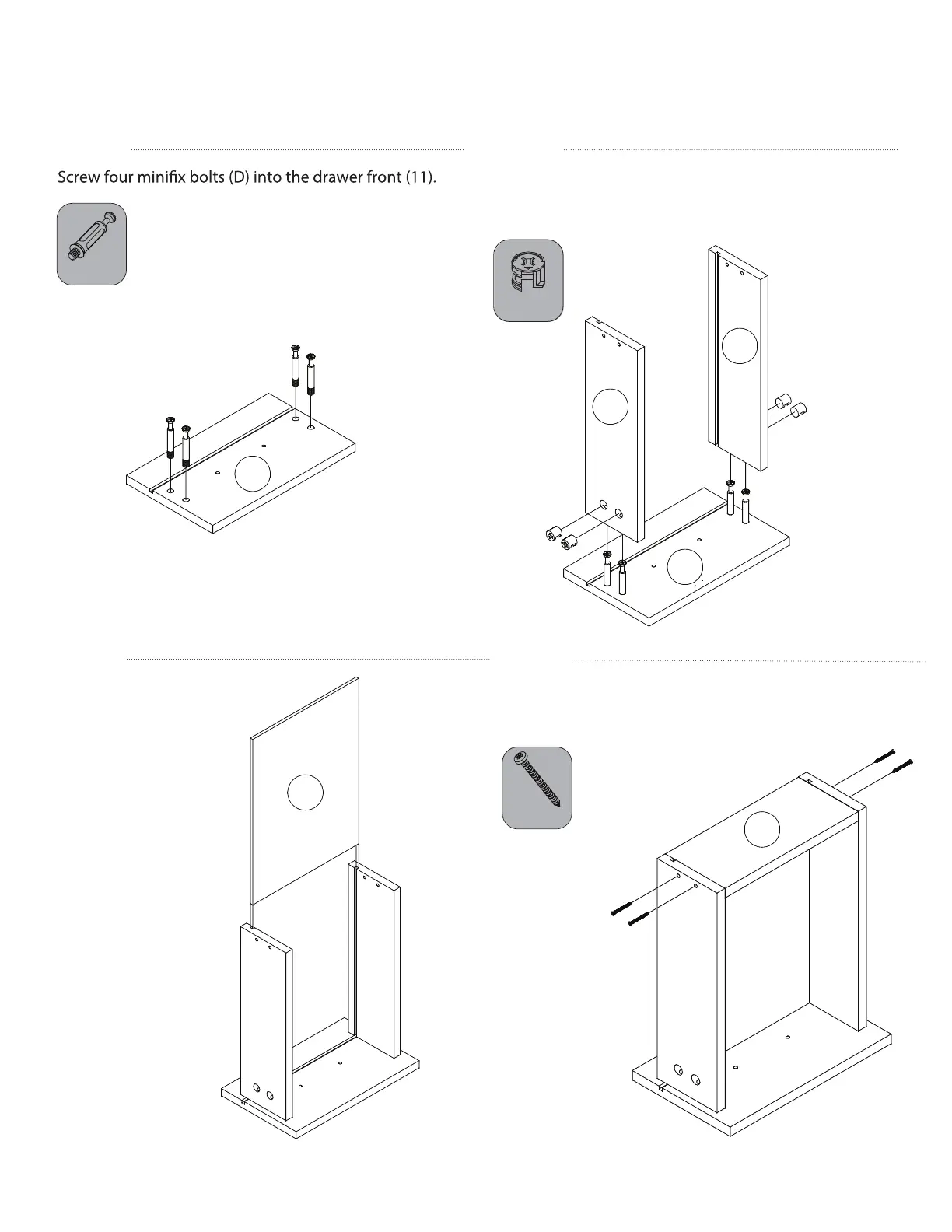

Align groove in drawer back (14) with drawer bottom. Attach
drawer back (14) to left and right drawer boards using
four screws (A).
D x 4
STEP 13
Insert drawer bottom (15) into
grooves.
STEP 11
STEP 12
Insert cams into the left (12) and right (13) drawer boards
and attach both boards to the drawer front (11). Make
sure the grooves for the drawer bottom are aligned.
13 of 16
13
11
12
11
15
14
