9 of 16
ASSEMBLY INSTRUCTIONS

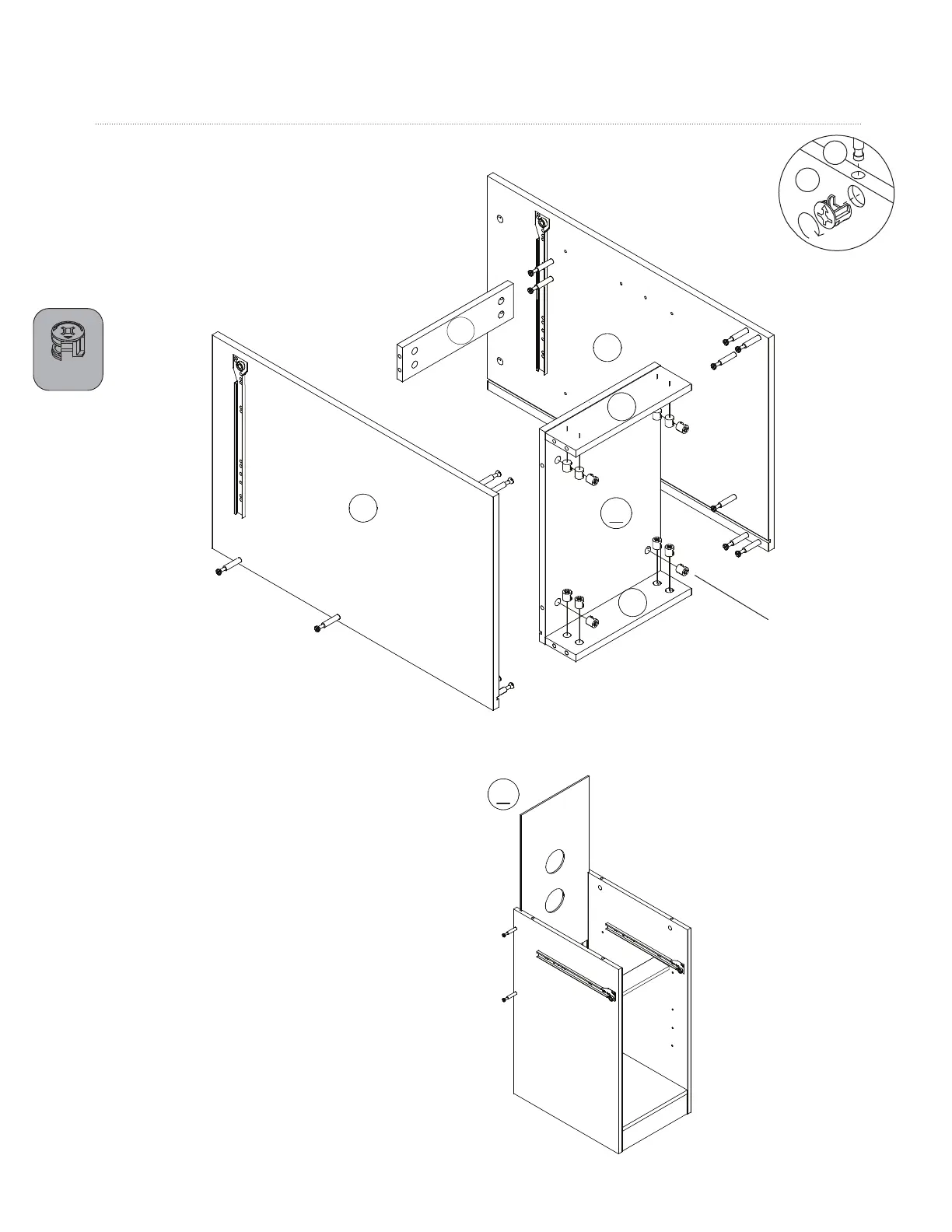

Insert cams (E) into the bottom shelf (9) and into the two
support boards (10). Make sure the arrows are facing the
smaller holes which the bolts go into. First, attach shelf and
support boards to the middle board (4), and then attach
these to the right board (3) by aligning the bolts and cams.
With a screwdriver turn the cams about 1/2 turn clockwise
to lock into place. CAUTION: Do not overtighten cams.
STEP 4
10
10
10
9
3
4
6
CAUTION:
Do not over tighten
cams.
E x 16
Insert right back board (6) into grooves as shown.
STEP 5
D
E
E
To Next Page
