SECTION 1.0: INTRODUCTION
We, at ONICON INCORPORATED, would like to thank you for purchasing our quality U.S.
made Insertion Turbine Flow Meter. As our valued customer, our commitment to you is to
provide fast reliable service and assistance, while continuing to offer you new products to
meet your growing flow measurement needs.
1.1 PURPOSE OF THIS GUIDE
We have written this guide to provide the persons responsible for the installation, operation
and maintenance of your insertion flow meter with the most specific equipment information
they will need. This is NOT an electrical or plumbing trade manual.
PLEASE DO NOT PERMIT ANY PERSONS TO INSTALL, OPERATE OR MAINTAIN
THIS EQUIPMENT UNLESS THEY HAVE A COMPLETE KNOWLEDGE OF THEIR
TRADE SKILLS AND ARE COMPETENT TO WORK ON HIGH VOLTAGE POWER
WIRING OR HIGH PRESSURE HOT AND COLD WATER AND STEAM SYSTEMS,
ACCORDING TO THEIR INDIVIDUAL TRADES. DEATH OR PERMANENT INJURY
MAY RESULT FROM ACCIDENTS WITH THESE SYSTEMS.
This guide is the basic reference tool for all ONICON Insertion Turbine Flow Meters. If you
have not purchased all of the options, there will be references in this manual which are not
applicable to you meter(s).

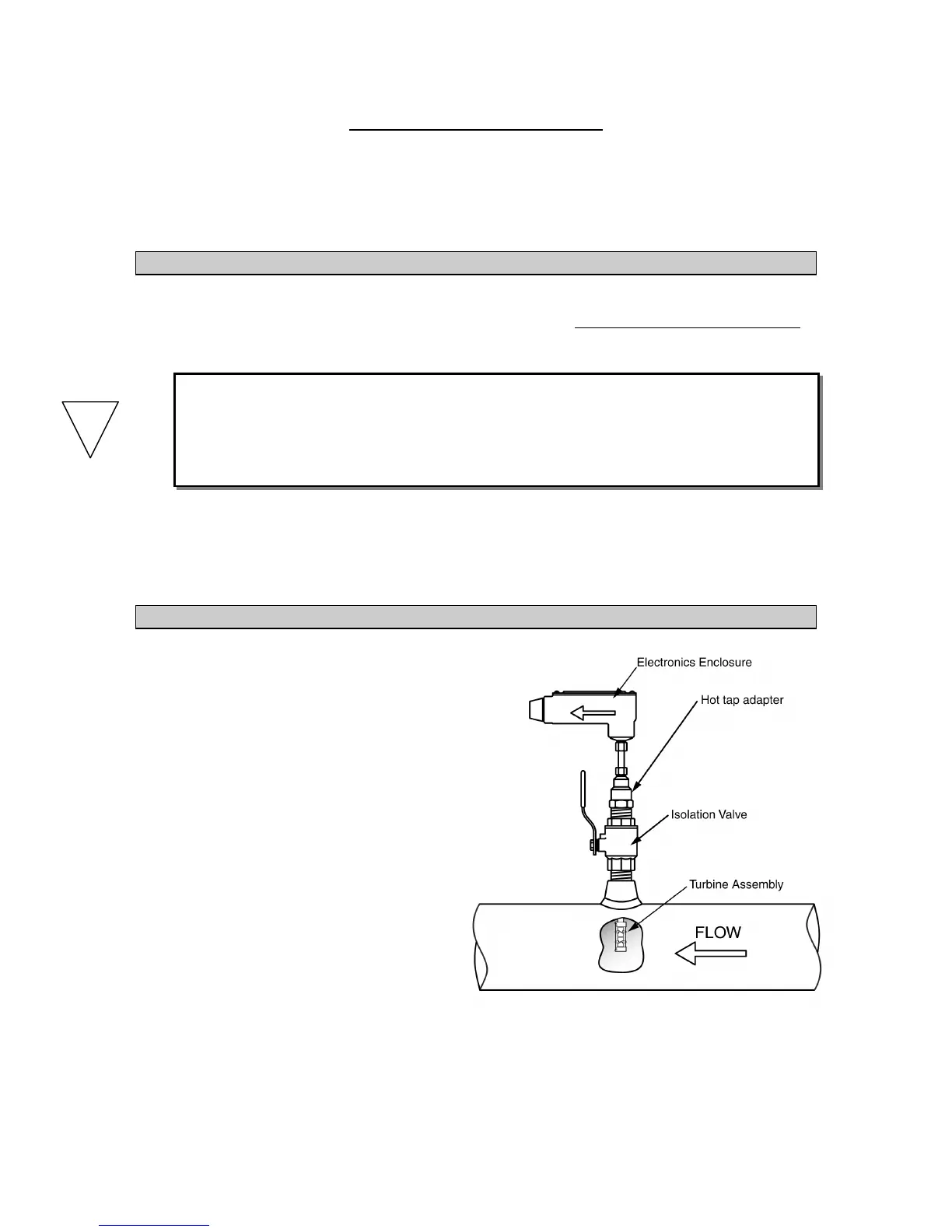

1.2 A TYPICAL INSERTION TURBINE FLOW METER
ONICON’s Insertion Turbine Flow Meters
measure the velocity of flowing liquids
by counting the frequency at which the
blades of a rotating turbine pass a fixed
electrode. Circuitry within the flow meter
electronics enclosure then converts the
rotational rate to digital and/or analog
signals which are transmitted via a
connecting cable to any of ONICON’s
display devices, BTU meters and/or a
data acquisition system.
!
