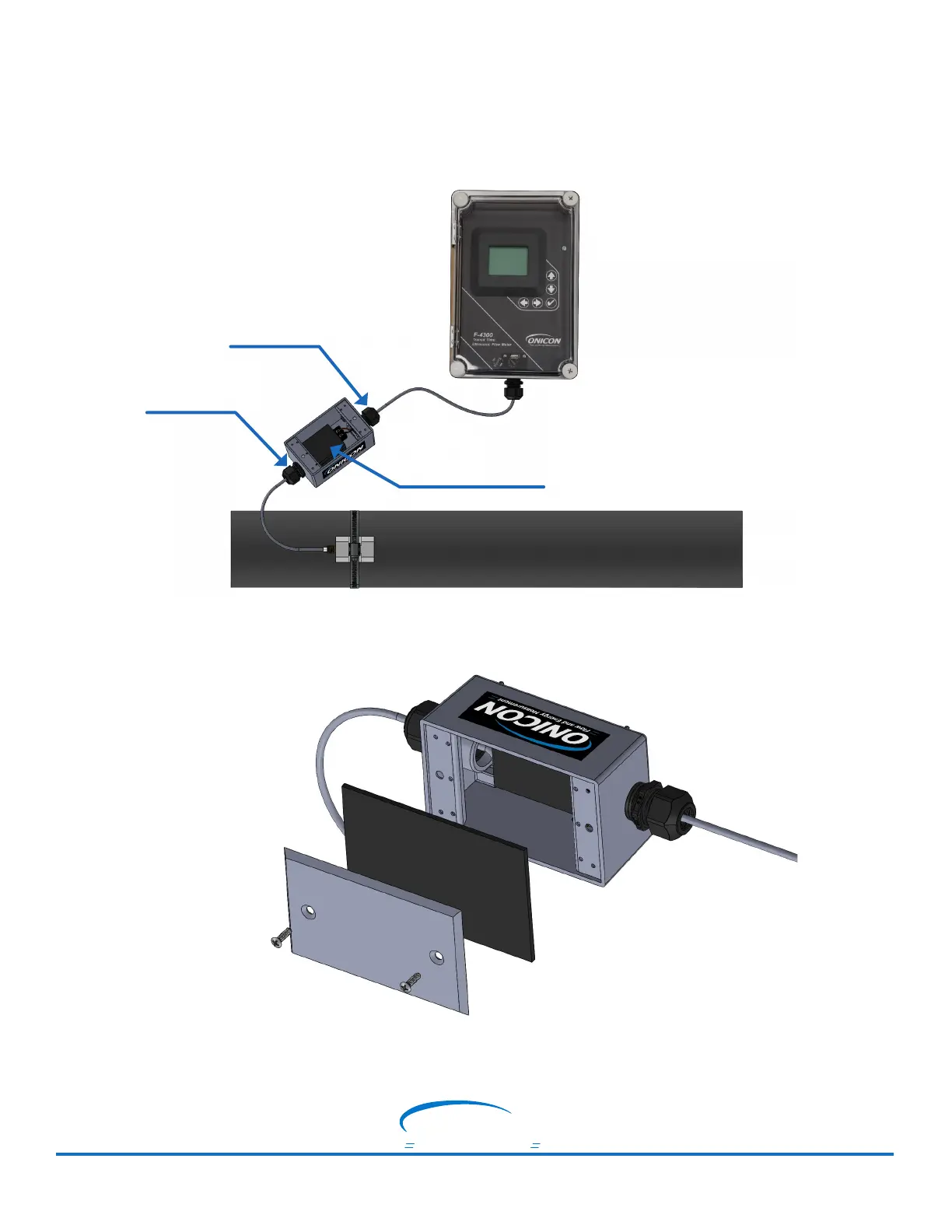

5. Connect the Signal (+) and Reference (-) wires from the transmitter to the F-4300 BTU meter
through the strain relief. Be sure to observe the polarity of the connection, positive to positive
and negative to negative. Shield wires should be connected at the F-4300, but left open at the
temperature sensor transmitter.
TRANSMITTER
STRAIN RELIEF
STRAIN RELIEF
6. Tighten the strain reliefs and reinstall the junction box cover. Once the thermowells and sensors
are fully installed and tested, insulate the thermowells and the pipe to complete the installation.
Directions for Installation (Continued):
If you have any questions or need assistance, please contact ONICON Sales at (727) 447-6140 or
sales@onicon.com.
