F-4300 Clamp-on Ultrasonic Flow Meters
Installation Hardware Instruction for Clamp-on Thermowell

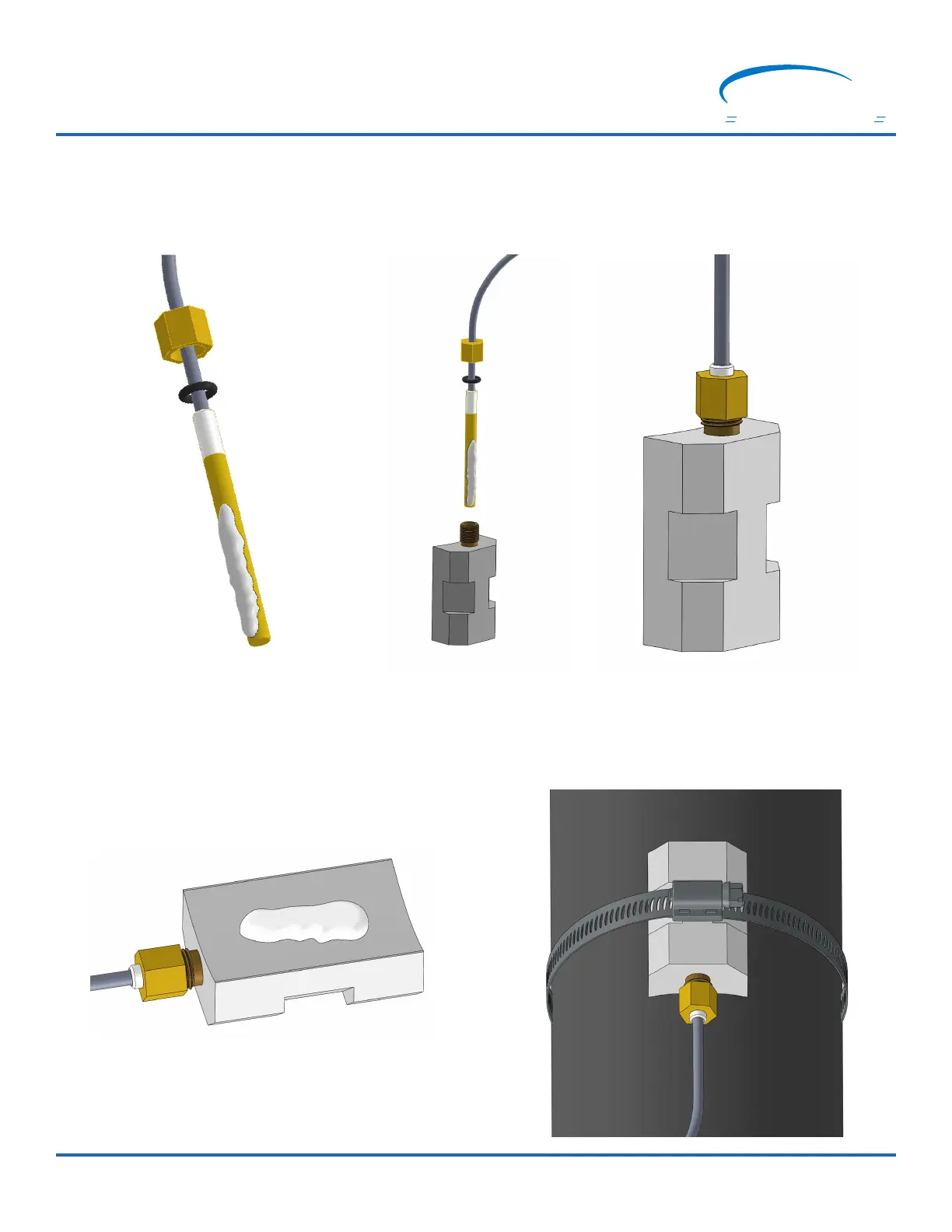

3. Apply a thin coat of thermal compound to the temperature sensor, and gently insert the
temperature sensor all the way into the clamp-on thermowell.
4. Apply thermal compound to the heat sink and install the clamp-on thermowell on to the pipe
using the pipe strap as shown.
Directions for Installation (Continued):
