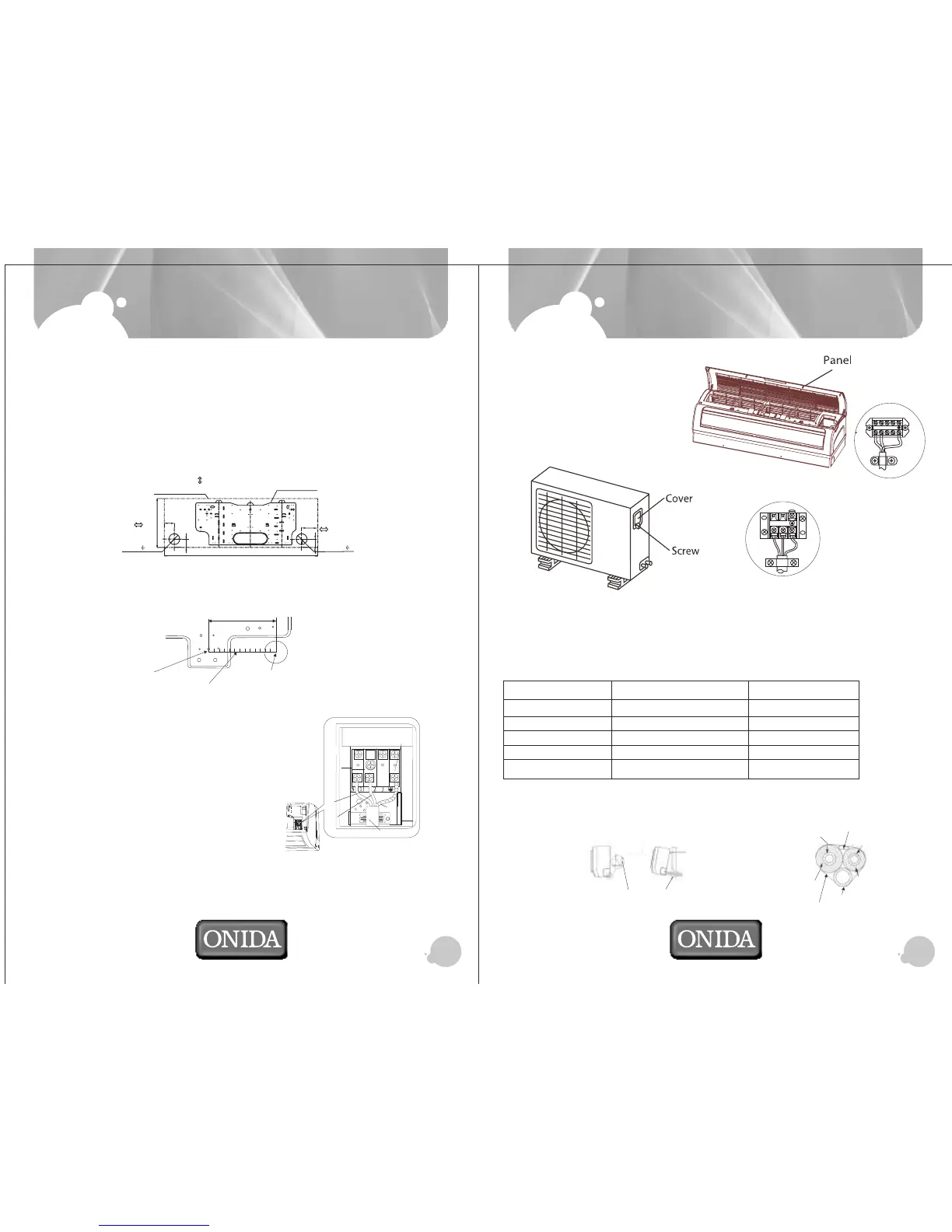

INSTALLATION INSTALLATION
n Drill on the wall
Confirm the position of holes and drill holes of diameter 65 mm on the wall
n INDOOR UNIT
1. Fitment of mounting plate
The mounting plate should be fitted on the structural part of wall on which indoor unit
is to be installed.
2. Drill two holes at a distance of 450 mm between them for the expansion bolts.
n Connecting of cables
1. Open the front panel
2. Dismantle the electric box cover
and fastener
3. Connect the cable
4. Reassemble the fastener and electric box
cover.
150mm or more to ceiling
Indoor unit outline
Installation plate
293
Right rear side
refrigerant
pipe hole 65
Left rear side
refrigerant
pipe hole 65
120mm or more
to wall
120mm or more
to wall
995
45
90
45
45
Blue
Terminal board
Power connection wire
Black
Yellow-green
18
10
Center of Hole(Ø 6 5 m m )
Insert Ruler
180mm
Align Ruler with straight line
n Installation of indoor unit
After putting the pipe assembly through
the wall, attach the indoor unit to the
mounting plate on the wall as shown in
the figure.
n Installation of outdoor unit
• The connecting cables must be clipped together.
• Special cable to be used to connect indoor unit and outdoor unit.
• The electric box cover must be mounted on its position on outdoor unit.
n Connecting of pipes
n Sealing the wall hole and clamping the pipe
• Use putty to seal the wall hole.
• Use pipe fastener to clamp the pipe on wall
1 2(N) 3 4
1
2(N)
External connection
electric wire
Liquid side piping
Liquid side
piping insulation
Water
drainage
pipe
Finally wrap it
with tape
Gas side
piping insulation
Gas side piping
air proof with putty
Mounting Board
Mounting Board
Fixing Hook
Pipe Diameter of pipe Torque (N • m)
Liquid pipe 6.35 mm (0.8T, 1.0T & 1.5T) 13.7--17.6
Gas Pipe 9.52 mm (0.8T) 13.7--17.6
Gas pipe 12.7 mm (1.0T & 1.5T) 49.0--56.4
Liquid pipe 9.52 mm (2.0T) 13.7--17.6
Gas pipe 16 mm (2.0T) 49.0--56.4
To Next Page
