Onkyo A-809 Service Manual

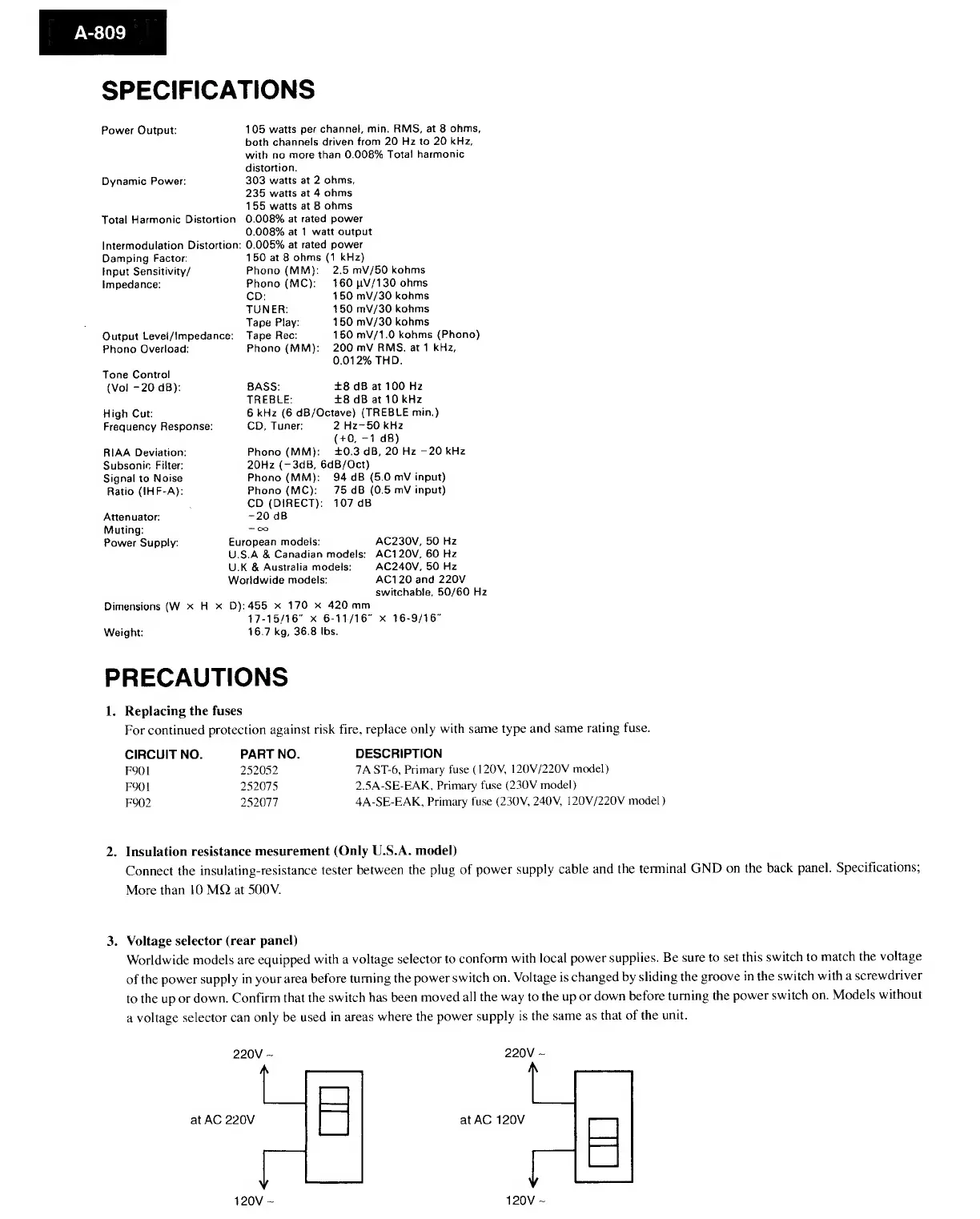

A-809
SPECIFICATIONS
Power Output: 105 watts per channel, min. RMS, at 8 ohms,
both channels driven from 20 Hz to 20 kHz,
with no more than 0.008% Total harmonic
distortion.
Dynamic Power: 303 watts at 2 ohms,
235 watts at 4 ohms
155 watts at 8 ohms
Total Harmonic Distortion 0.008% at rated power
0.008% at 1 watt output
Intermodulation Distortion: 0.005% at rated power
Damping Factor: 150 at 8 ohms (1 kHz)
Input Sensitivity/ Phono (MM): 2.5 mV/50 kohms
Impedance: Phono (MC): 160 2V/130 ohms
CD: 150 mV/30 kohms
TUNER: 150 mV/30 kohms
Tape Play: 150 mV/30 kohms
Output Level/Impedance: Tape Rec: 150 mV/1.0 kohms (Phono)
Phono Overload: Phono (MM): 200 mV RMS. at 1 kHz,
0.012% THD.
Tone Control
(Vol -20 dB): BASS: +8 dB at 100 Hz
TREBLE: £8 dB at 10 kHz
High Cut: 6 kHz (6 dB/Octave) (TREBLE min.)
Frequency Response: CD, Tuner: 2 Hz-50 kHz
(+0, -1 dB)
RIAA Deviation: Phono (MM): +£0.3 dB, 20 Hz -20 kHz
Subsonic Filter: 20Hz (-3dB, 6dB/Oct)
Signal to Noise Phono (MM): 94 dB (5.0 mV input)
Ratio (!HF-A): Phono (MC): 75 dB (0.5 mV input)
2 CD (DIRECT): 107 dB
Attenuator: ~20 dB
Muting: oo
Power Supply: European models: AC230V, 50 Hz
U.S.A & Canadian models: AC120V, 60 Hz
U.K & Australia models: AC240V, 50 Hz
Worldwide models: AC120 and 220V
switchable, 50/60 Hz
Dimensions (W x H x D):455 x 170 x 420 mm
17-15/16" x 6-11/16" x 16-9/16"
Weight: 16.7 kg, 36.8 Ibs.
PRECAUTIONS
1. Replacing the fuses
For continued protection against risk fire, replace only with same type and same rating fuse.
CIRCUIT NO. PART NO. DESCRIPTION
F9O1 252052 7A ST-6, Primary fuse (120V, 120V/220V model)
F901 252075 2.5A-SE-EAK, Primary fuse (230V model)
F902 252077 4A-SE-EAK, Primary fuse (230V, 240V, 120V/220V model)
2. Insulation resistance mesurement (Only U.S.A. model)
Connect
the
insulating-resistance
tester
hetween
the
plug
of
power
supply
cable
and
the
terminal
GND
on
the
back
panel.
Specifications,
More than 10 MQ at 500V.
3. Voltage selector (rear panel)
Worldwide
models
are
equipped
with
a
voltage
selector
to
conform
with
local
power
supplies.
Be
sure
to
set
this
switch
to
match
the
voltage
of
the
power
supply
in
your
area
before
turning
the
power
switch
on.
Voltage
is
changed
by
sliding
the
groove
in
the
switch
with
a
screwdriver
to
the
up
or
down.
Confirm
that
the
switch
has
been
moved
all
the
way
to
the
up
or
down
before
turning
the
power
switch
on.
Models
without
a
voltage
selector
can
only
be
used
in
areas
where
the
power
supply
is
the
same
as
that
of
the
unit.
220V ~ 220V ~
at AC 220V at AC 120V
120V ~ 120V ~
