Onkyo BD-SP809

1-5-2 E5WB0DC
Reference Notes
1. How to remove Tray Assembly
1) Press the [A] button to open the tray.
2) Remove the Tray Assembly.
3) Press the [A] button to close the tray.
2. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.
3. When reassembling, be sure to use the original
screws or specified screws listed in the parts
list.
4. When replacing the BD Mechanism Assembly
or BD Main CBA Unit, refer to “ADJUSTMENT
INSTRUCTIONS FOR BD MAIN CBA OR BD
MECHANISM ASSEMBLY REPLACEMENT.”

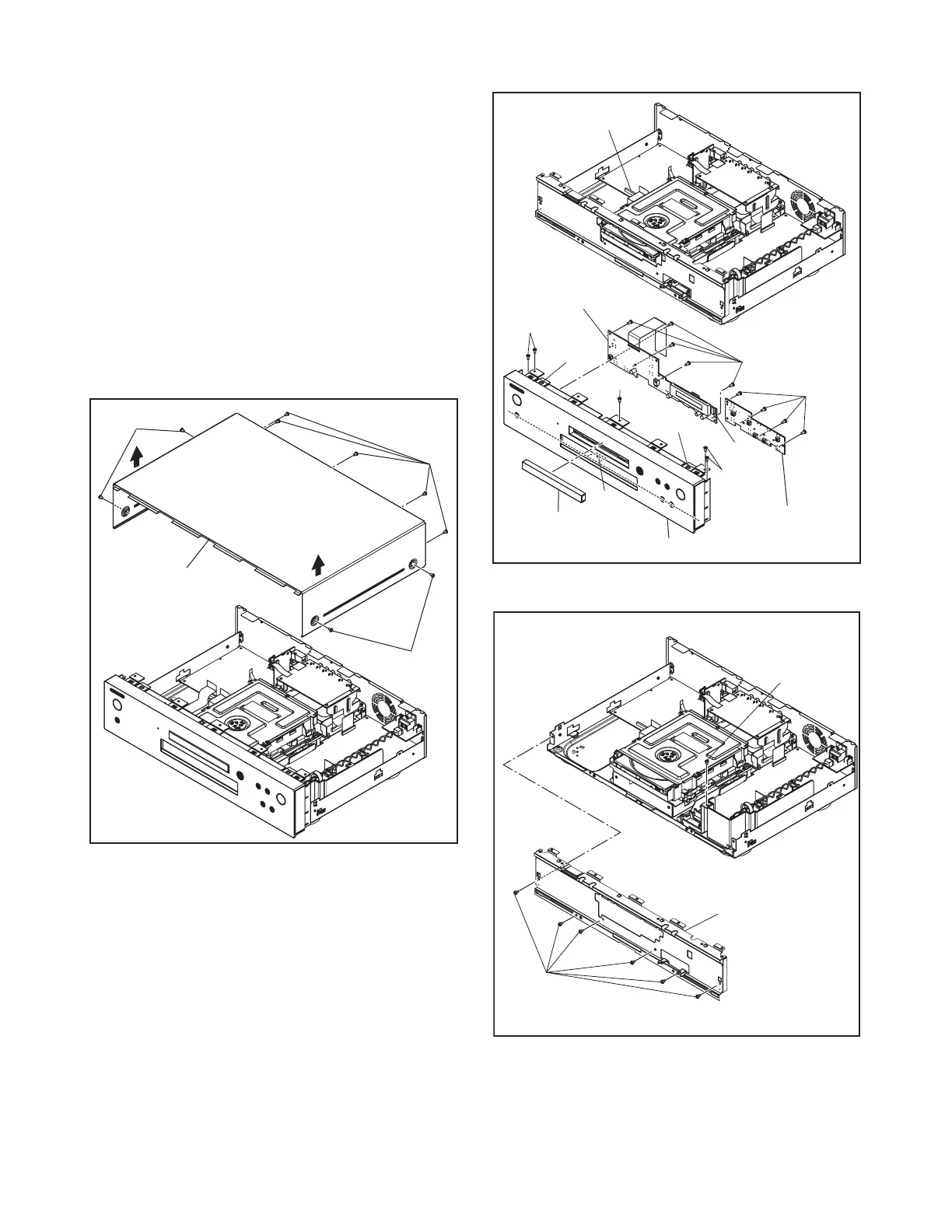

[1] Top Cover
(S-1)
(S-1)
(S-1)
Fig. D1
[4] Front-A CBA
[5] Front-B CBA
[3] Front Assembly
[2] Tray
Assembly
(S-3)
(S-3)
CN2002
(L-1)
(L-1)
(L-2)
(S-2)
(S-2)
(S-2)
CN3001
Fig. D2
[6] Front Bracket
(S-4)
(S-4)
Fig. D3
