Note
• Do not place the DS-A5 on top of a component that
gets warm or one with has air vents on top, as it
may interfere with that component’s cooling or
cause the component or DS-A5 to overheat. Place it
next to the component, use an audio rack, etc.
Caution
• Connect the supplied u cable to only u jacks.
Do not connect headphones to the u jack, as it
will damage your equipment.
■ Inserting Your iPod/iPhone/iPad into the
DS-A5

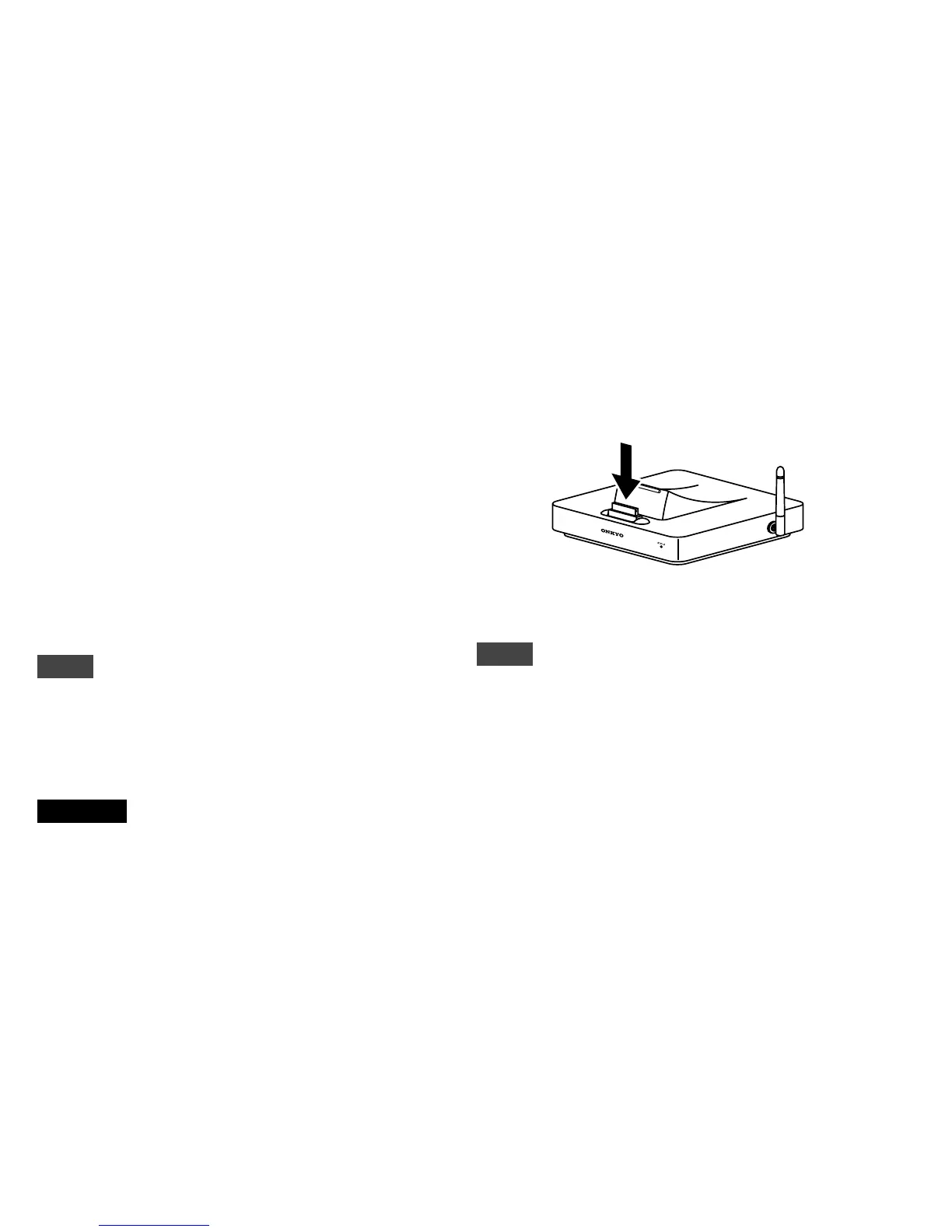

Insert your iPod/iPhone/iPad into the DS-A5 as
shown below.
Now, you can enjoy music/video from
iPod/iPhone/iPad.
Note
• To prevent dock connector damage, don’t twist
your iPod/iPhone/iPad when inserting or removing
it, and be careful not to knock your
iPod/iPhone/iPad while it’s inserted.
• Don’t use your iPod/iPhone/iPad with any other
accessories, such as FM transmitters and
microphones, because they may cause a
malfunction.
1
Using the supplied AV cable, connect the
DS-A5’s AUDIO OUT L/R jacks to a audio input
on your Onkyo amp or AV receiver. And if your
iPod/iPhone/iPad supports TV out, connect
the DS-A5’s VIDEO OUT jack to a composite
video input on your Onkyo amp, AV receiver
or TV.
2
Using the supplied u cable, connect the
DS-A5’s u jack to an u jack on your Onkyo
amp or AV receiver.
3
Connect the supplied AC adapter to the
DS-A5’s DC IN 5V 3A jack, and plug the AC
adapter into a suitable wall outlet.
iPod/iPhone/iPad

Onkyo DS-A5 Specifications

General

Brand	Onkyo
Model	DS-A5
Category	Docking Station
Language	English
