Onkyo HT-R495 Service Manual

Thermal Sensor Section

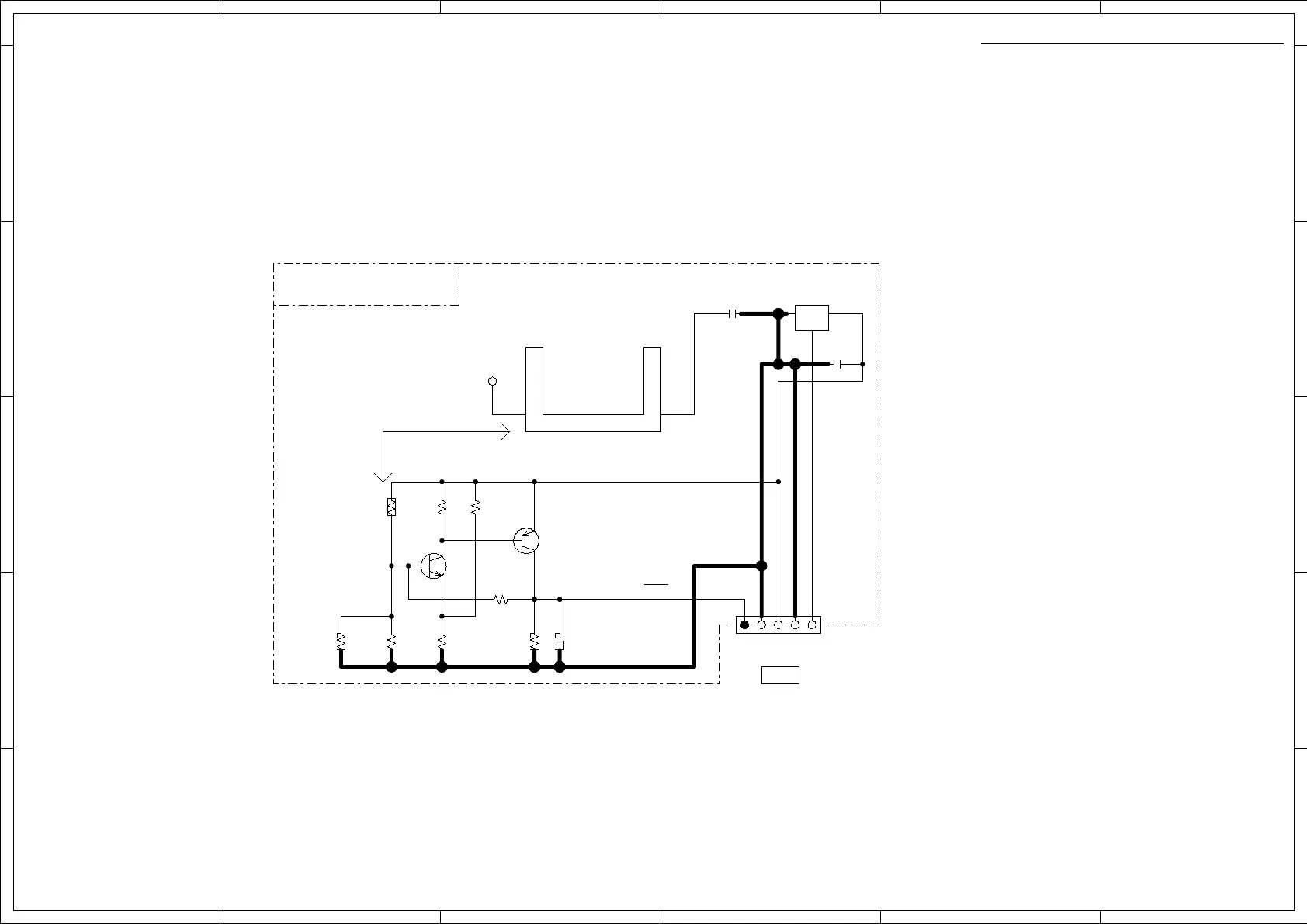

Schematic Diagrams
TX-SR292BT/SR393/SR494, HT-R398/R495
1
A
B
C
D
E
2 3 4 5 6
1 2 3 4 5 6
A
B
C
D
E
+3.3VDC
+3.30V
+3.3VDC
GNDDG
THERMAL
PTC
104K
C6801
Q6800A
(PTH)
1 2
TP6300
104K
C6800
50V
P6800A CHD-1.5-5
1 2 3 4 5
R6803
47k
F_+-1%
R6805
82k
F_+-1%
R6801
NM
R6804
180k
104K
C6802
50V
R6807
NM
F_+-1%
R6808
220k
R6802
15k
F_+-1%
R6806
470
Q6800
LM61CIZ
G
O
V
Q6801
2SC2712-GR
Q6802
2SA1162-GR
Thermal
connect
PRC
FROM BAPRC-2695(PART-8)
THERMAL
BAETC-2691
