Onkyo HT-R570 Quick Setup

TV
VIDEO 1
IN
Cable/
satellite
VIDEO
OUT
AUDIO
OUT
L
R
DIGITAL
OUT
COAXIAL
Antenna input
(e.g..RF IN)
DVD/BD
player
VIDEO
OUT
AUDIO
OUT
DIGITAL
OUT
COAXIAL
L
R
TV
HDMI
IN
HDMI
OUT
Antenna input
(e.g., RF IN)
Cable/
satellite
HDMI
OUT
DVD/BD
player
AUDIO
OUT
L
R
COAXIAL
DIGITAL
OUT
COAXIAL
DIGITAL
OUT
AUDIO
OUT
L
R
Assigning the Digital Input
If there’s no sound, you’ll need to assign the
digital inputs as necessary using the setup
menus on the AV Receiver’s display.
If you connect your DVD/BD player to the AV
receiver’s DIGITAL IN COAXIAL 1, and your
cable/satellite receiver to the DIGITAL IN
COAXIAL 2, as shown, it’s not necessary to
assign the digital input.
On the front panel

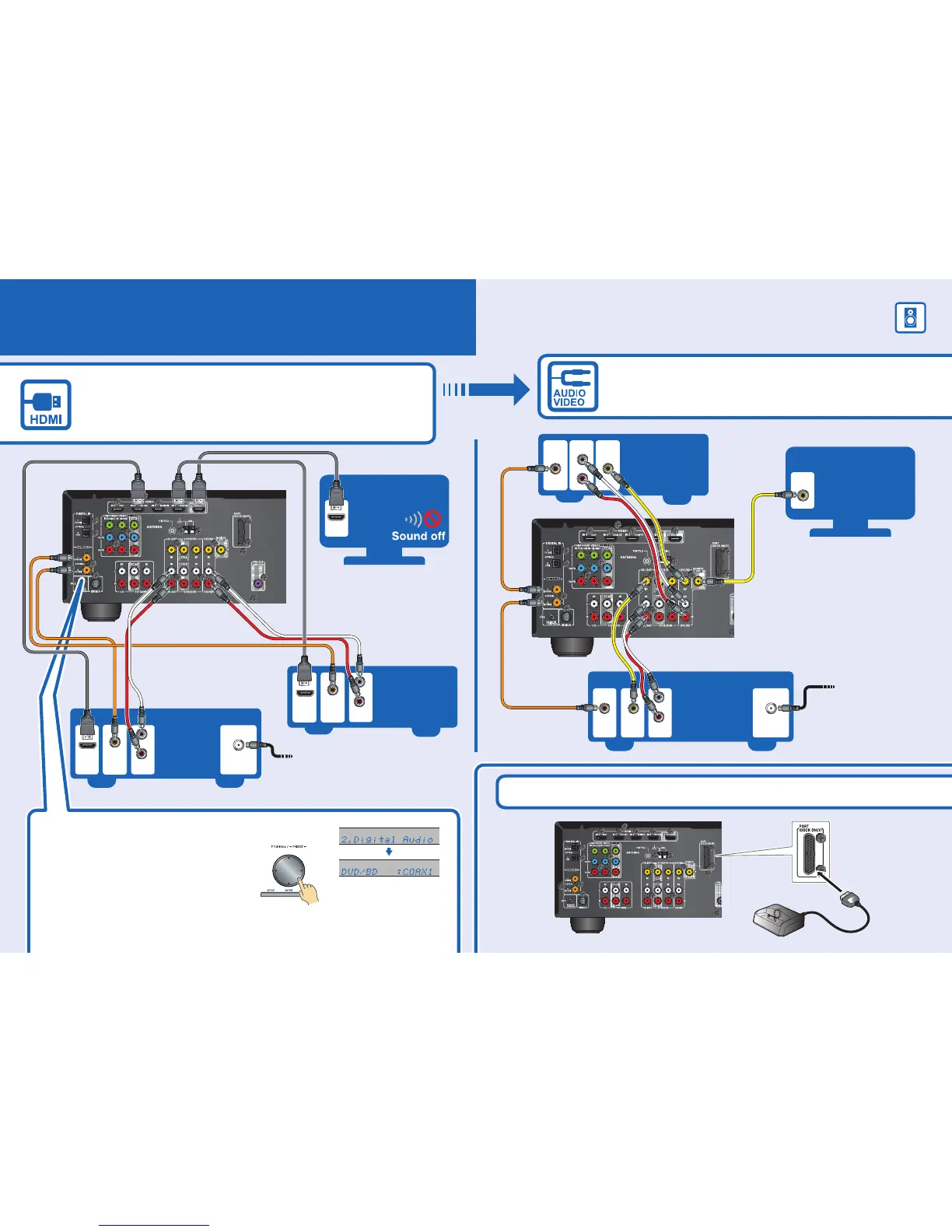

AV Component Hookup
IF NO HDMI
Please ensure the monitor input
(VIDEO 1, VIDEO 2, VIDEO 3, etc.)
selected corresponds to actual
connection used.
See the other side of this sheet for the Speaker hookup.
See the other side of this sheet for the Speaker hookup.
If you have an HDMI-compatible TV and players, you can connect them
to the AV receiver with HDMI cables. The audio and video signals received
via the HDMI inputs are output by the HDMI OUT as they are (pass-through).
To listen through the speakers connected to the AV receiver, please make
the audio connections shown below.
Connecting a supplied UP-A1L with the Port connector
Coaxial feed from
TV antenna
If you are not using
Cable/satellite box,
please refer to the
instruction manual.
If your TV or player doesn’t support HDMI, use the analog or digital
connections shown below.
Coaxial feed from TV antenna
If you are not using Cable/satellite box,
please refer to the instruction manual.
To fully enjoy the AV receiver’s
listening modes, turn off the
volume on your TV.
