Onkyo HT-R990

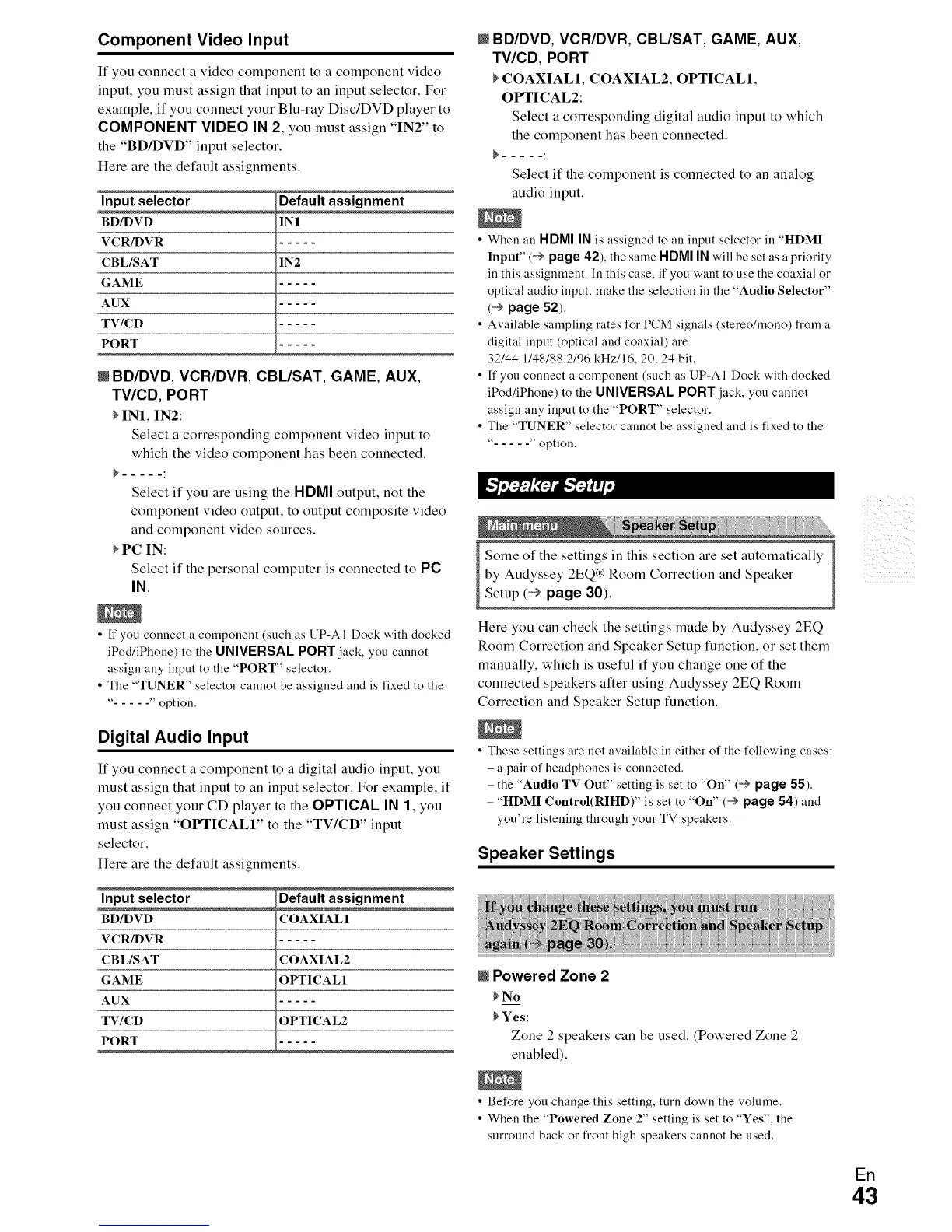

Component Video Input
If you connect a video component to a component video
input, you must assign that input to an input selector. For
example, if you connect your Blu-ray Disc/DVD player to
COMPONENT VIDEO IN 2, you must assign "IN2" to
the "BD/DVD" input selector.
Here are the default assignments.
Input selector Default assignment
BD/DVD INI
VCR/DVR ....
CBL/SAT IN2
(;AME ....
AUX ....
TV/CD ....
PORT ....
m BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD, PORT
IN1, IN2:
Select a corresponding component video input to
which the video component has been connected.
}..... :
Select if you are using the HDMI output, not the
component video output, to output composite video
and component video sources.
PC IN:
Select if the personal computer is connected to PC
IN.
• If you connect a component (such as UP-AI Dock with docked
iPod/iPhone) to the UNIVERSAL PORT jack, you cannot
assign ally input to the "PORT" selector.
• The "TUNER" selector cannot be assigned and is fixed to the
" option.
Digital Audio Input
If you connect a component to a digital audio input, you
must assign that input to an input selector. For example, if
you connect your CD player to the OPTICAL IN 1, you
must assign "OPTICALI" to the "T¥/CD" input
selector.
Here are the default assignments.
Input selector
BD/DVD
VCR/DVR
CBL/SAT
(;AME
AUX
TV/CD
PORT
Default assignment
COAXIALI
COAXIAL2
OPTICALI
OPTICAL2
m BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD, PORT
COAXIAL1, COAXIAL2, OPTICAL1,
OPTICAL2:
Select a corresponding digital audio input to which
the component has been connected.
,:
Select if the component is connected to an analog
audio input.
• Whenan NDMI IN is assigned to an input selector ill "HDMI
Input" (_ page 42), the same NDMIINwill be setas a priority
inthis assignment. [n this case,if you want to usethe coaxial or
optical audio input, make the selection inthe "Audio Selector"
(÷ page 52).
• Available samplingrates for PCM signals (stereo/mono) from a
digital input (optical andcoaxial) are
32144.1148188.2196kHz/l 6, 20, 24 bit.
• If you connect a component (such as UP-AI Dock with docked
iPod/iPhone)to the UNIVERSAL PORTjack, you cannot
assignany input to the "PORT" selector.
• The "TUNER" selector cannot be assigned and is fixed to the
" option.
I Some of the settings in this section are set automatically )
)
by Audyssey 2EQ® Room Correction and Speaker
)
Setup (3 page 30).
Here you can check the settings made by Audyssey 2EQ
Room Correction and Speaker Setup function, or set them
manually, which is useful if you change one of the
connected speakers alter using Audyssey 2EQ Room
Correction and Speaker Setup function.
• These settings are not available in either of the following cases:
- a pair of headphones is connected.
- the "Audio TV Out" setting is set to "On" (_ page 55).
- "HDMI Control(RIHD)" is set to "On" (÷ page 54) and
you're listening through your TV speakers.
Speaker Settings
I Powered Zone 2
No
}Yes:
Zone 2 speakers can be used. (Powered Zone 2
enabled).
• Before you change this setting, turn down the volume.
• When the "Powered Zone 2" setting is set to "Yes", the
surround back or front high speakers cannot be used.
Erl
43
