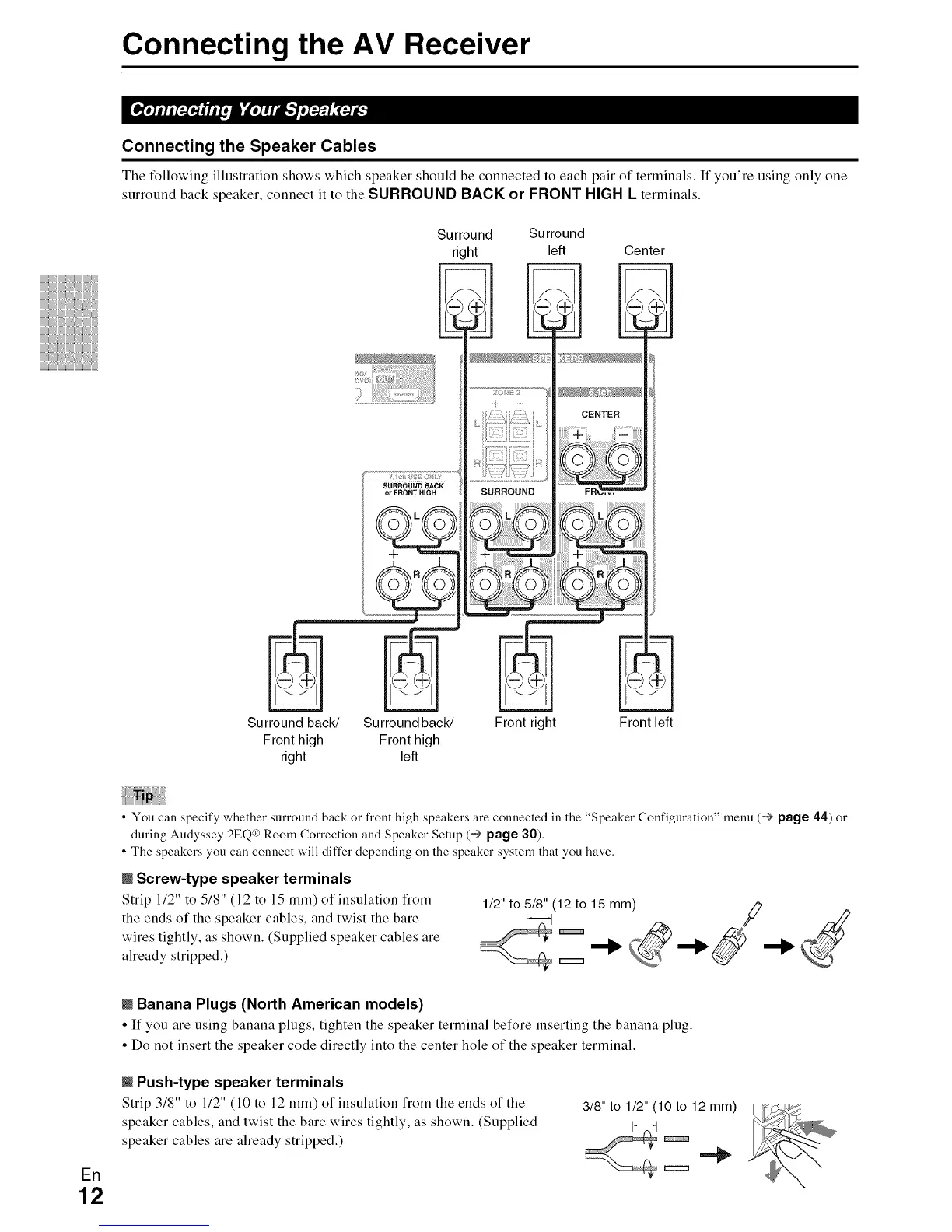

Connecting the AV Receiver
Connecting the Speaker Cables
The following illustration shows which speaker should be connected to each pair of terminals. It you're using only one
surround back speaker, connect it to the SURROUND BACK or FRONT HIGH L terminals,
Surround
right
i!
SURROUND BACK
or FRONT HIGH
Surround
left
?
i/ .................
SURROUND
Surround back/ Surround back/ Front right
Front high Front high
right left
Center
CENTER
Front left
ER
12
• You can specify whether surround back or front high speakers are connected in the "Speaker Configuration" menu (_ page 44) or
during Audyssey 2EQ ('_)Room Correction and Speaker Setup (_ page 30).
• The speakers you can connect will differ depending on the speaker system that you have.
I Screw-type speaker terminals
Strip 112"to 518" (12 to 15 mm) of insulation from
the ends of the speaker cables, and twist the bare
wires tightly, as shown. (Supplied speaker cables are
already stripped.)
1/2" to 5/8" (lm_2to '_15mm)_,__ '_
E Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.
m Push-type speaker terminals
Strip 3/8" to 112"(10 to 12 mm) of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown. (Supplied
speaker cables are already stripped.)
3/8" to 1/2" (10 to 12 mm)
