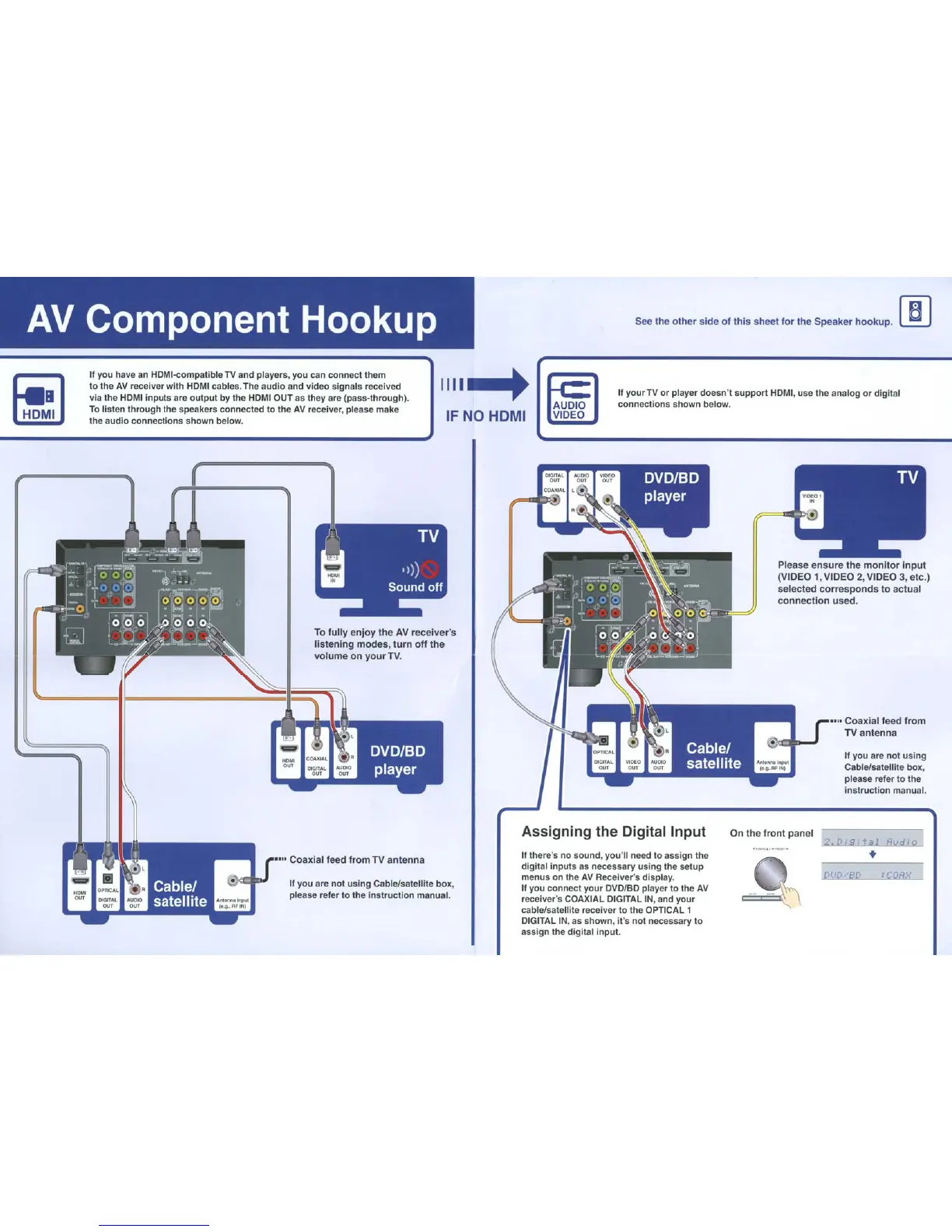

AV Component Hookup
See the other side of this sheel for the Speaker hookup. (]J
II you have an HDM1-<:ompatible TV and players, you can connect them
to the AV receiver with HOMI cables. Tl1e audio and video signal' received
via the HDMllnpulS are output by the HOMI OUT IS they are (pasS>lhrough).
To listen through the speakers connected to ttle AV receiver, please make
the audio connections shown below.
1111-'
IF NO HDMI
-
AU;'
If your TV or player doesn't support HOMI, use the analog or digital
connections shown below.
VIDEO
Please ensure the monitor Input
(VIDEO 1, VIDEO 2, VIDEO 3, etc.)
selected corresponds to actual
connection used.
If yOl.l are nol using
Cable/satellite boll,
please refer to the
instruction manual,
.". CoaxIal feed from
TV anlenna
To fUlly enjoy the AV receiver'.
listening modes, turn
off the
volume on yourTV.
.. " Coaxial feed from TV antenna
II you are not using Cable/salelllle bm:,
please refer to the Instruction manual.
Assigning the Digital Input
II there's no sound, YOU'll need to assign tha
digital Inputs as necessary using tha setup
menus
on the AV Receiver's display,
II you connect your OVO/BO player to the AV
receiver's COAXIAL OIGITAL IN, and your
cable/satellite receiver to the OPTICAL 1
DIGITAL
tN, as shown, it's not n.eceasary to
assign the digital input.
