10
Getting to Know the AV Receiver
For detailed information, see the pages in parentheses.
A STANDBY/ON button (34)
Sets the AV receiver to On or Standby.
B STANDBY indicator (34)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C Remote-control sensor (13)
Receives control signals from the remote controller.
D Display
See “Display” on page 11.
E Input selector buttons (36)
Select the input sources.
The [MULTI CH] button selects the multichannel
DVD input.
F Arrow/TUNING/PRESET and ENTER buttons
When AM, FM, or XM is selected, the TUNING
[ ] [ ] buttons are used for radio tuning, and the
PRESET [ ] [ ] buttons are used to select radio
presets (see page 39). With the setup menus, they
work as arrow buttons and are used to select and set
items. The ENTER button is also used with the
setup menus.
G MASTER VOLUME control (36)
Sets the volume of the AV receiver to MIN, 1
through 79, or MAX.
H PHONES jack (45)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
I SPEAKERS A and B buttons (5, 36)
Turn speaker sets A and B on or off.

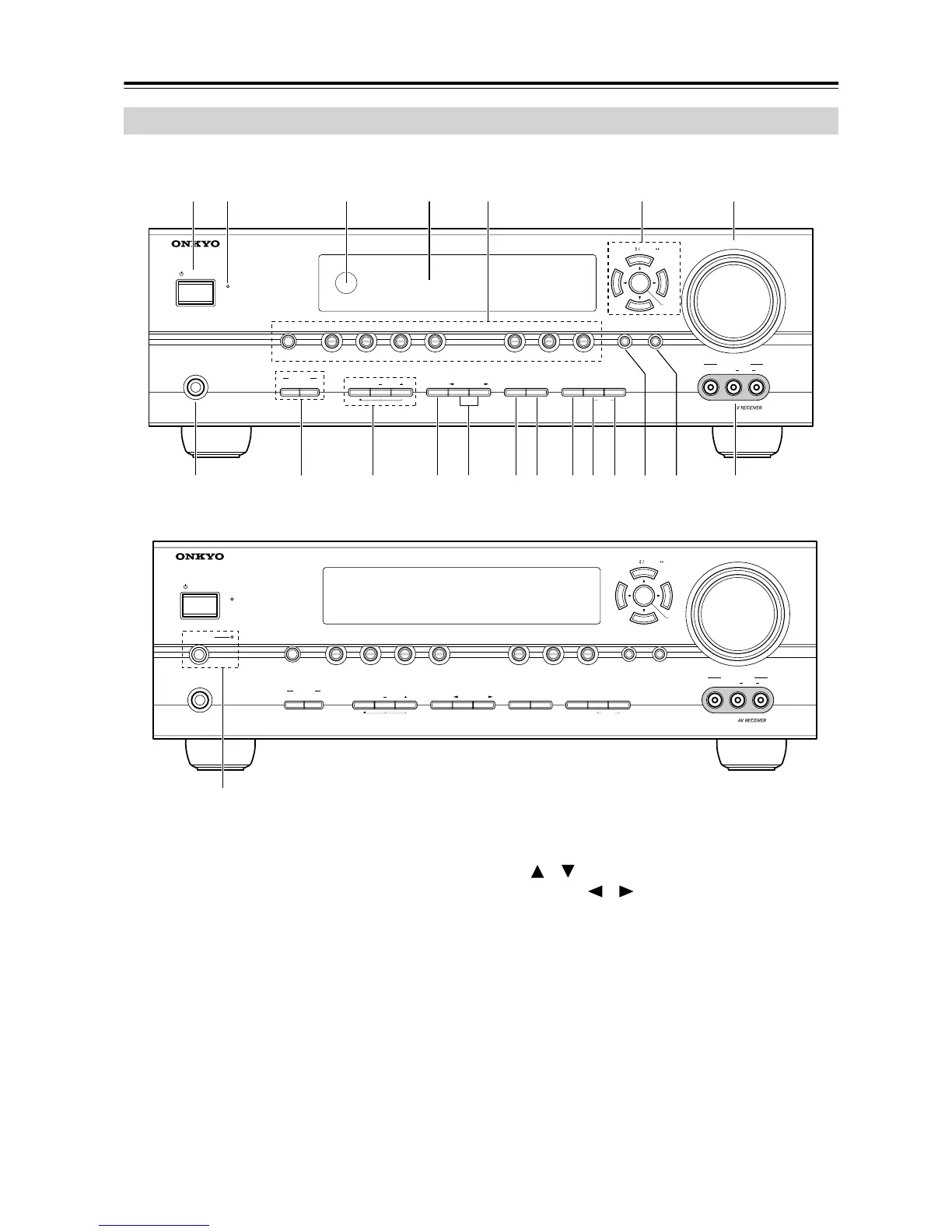

Front Panel
MASTER VOLUME
VIDEO
STANDBY
TONE
DISPLAYSTEREO DIMMER MEMORY
DIGITAL
INPUT
TUNING
MODEAB
SPEAKERS
TUNERTAPE
VIDEO
3VIDEO 2VIDEO 1
VCR
DVDMULTI CH CD
SETUPRETURN
CLEAR
LISTENING MODE
AUDIOLR
VIDEO 3 INPUT
STANDBY/ON
PHONES
TUNING PRESET
ENTER
1
TJKLMNOPQ8 9RS
2
3 5 6 74
MASTER VOLUME
VIDEO
STANDBY
TONE
DISPLAYSTEREO DIMMER MEMORY
DIGITAL
INPUT
TUNING
MODEAB
SPEAKERS
TUNERTAPE
VIDEO
3VIDEO 2VIDEO 1
VCR
DVDMULTI CH CD
SETUPRETURN
CLEAR
LISTENING MODE
AUDIOLR
VIDEO 3 INPUT
STANDBY/ON
PHONES
PURE AUDIO
TUNING PRESET
ENTER
U
North American Model
Other Models
