Placement

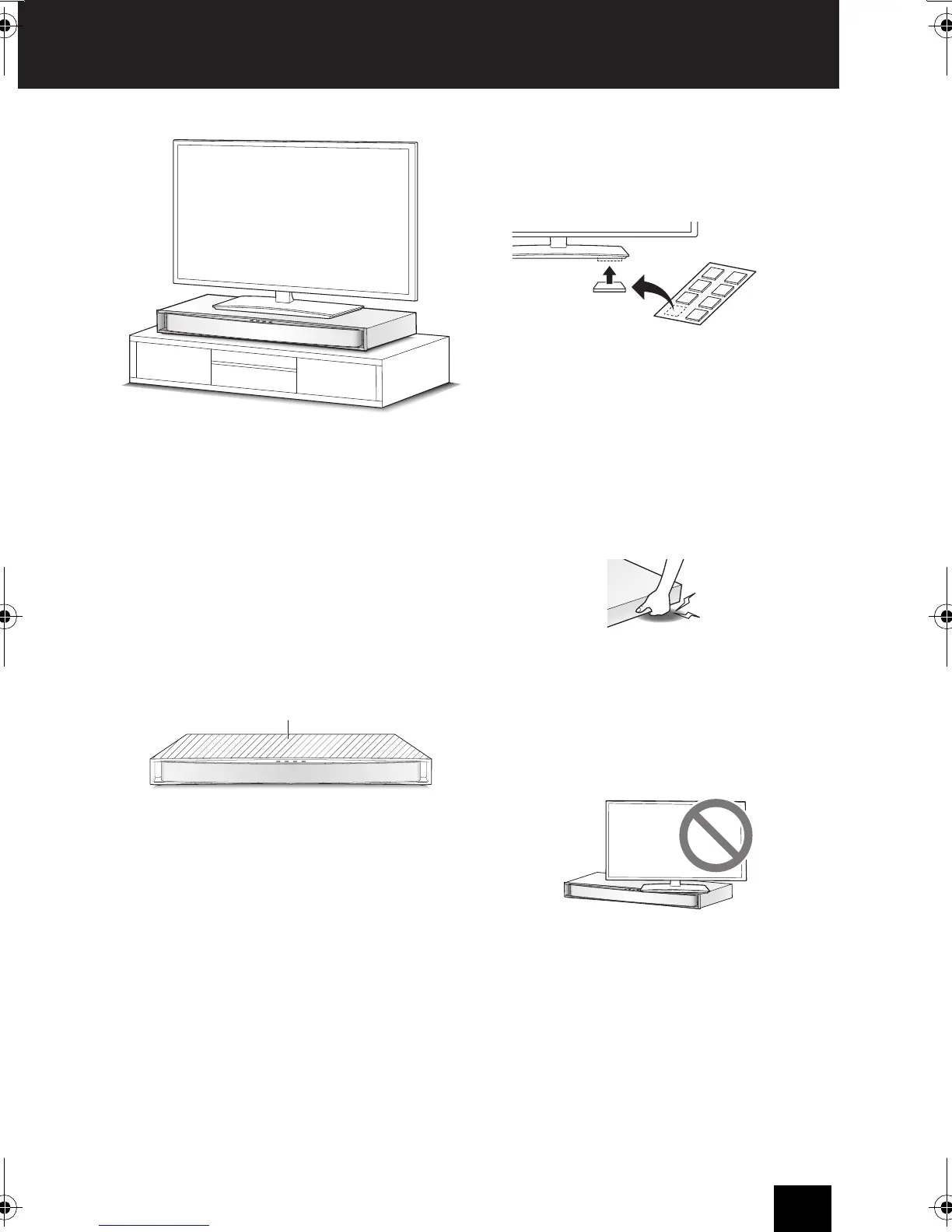

The illustration shows an example of
placement. Mount the unit on a firm surface
such as the top of a low board. Also, subwoofer
is located on the bottom side of the unit. Please
take extra care on setting.
TVs meeting the following requirements may be
placed on the unit.
0 Weight: 60 kg (132.2 lbs) or less
0 Width of TV stand: 900 mm (35-7/16") or
less
0 Depth: 360 mm (14-3/16") or less
1. Affix the cushioning pads to the bottom of the
TV stand.
Using the supplied cushions will allow you to
limit the effect of vibrations on the TV.
Wrap the TV in a blanket or soft cloth to
avoid damage during installation. Installation
should be performed by at least two people.
When the supplied cushions and the feet of
the TV do not match, cut and shape the
cushions for use as needed.
2. Place the unit on top of the low board.
The unit is extremely heavy. Be very careful
not to trap your fingers when mounting it.
Mount the TV so that it does not protrude
from the top face of the unit. If the TV stand
protrudes from the top face of the unit, the
TV may tip over and cause injury. Also, for
TV tip-over/fall prevention measures, see the
TV owner’s manual.
0 If the unit vibrates after placement, mount
the supplied vibration prevention cushions
under the feet of this unit, and adjust so that
it does not vibrate.
0 Onkyo is not responsible for accidents or
damage caused by improper installation,
improper cushion attachment, improper use
or natural calamity, etc.
