Onkyo M-5000R Service Manual

M-5000R
SERVICE PROCEDURE - 2

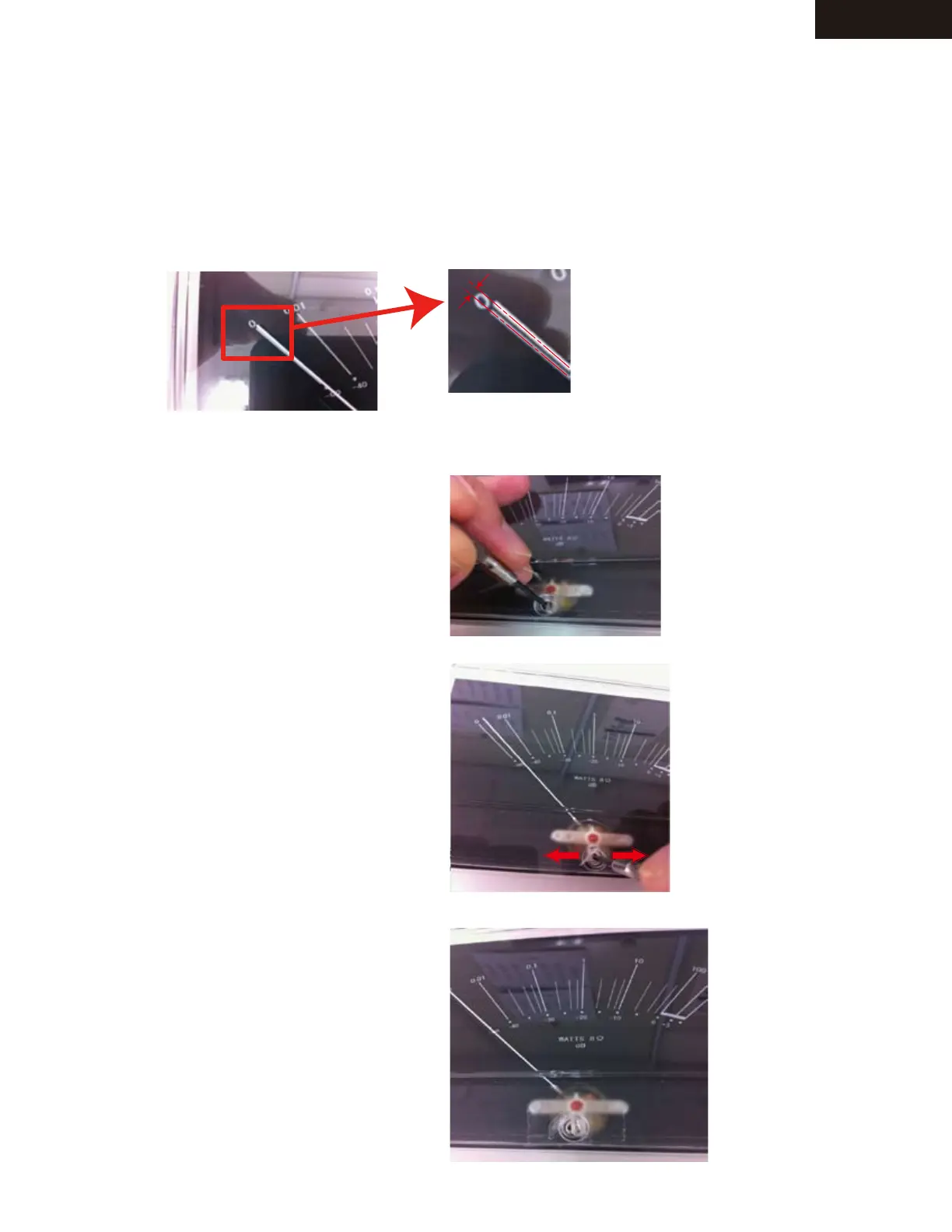

3. Adjustment of Meter
Please check the meter in the level state with the location of the look.
If checking the meter in the state which isn't level with the location of the look, it become with wrong judgement of
acceptance.
Indicator is out of 0 line in point and shift dimension for 0 line is less than 1mm. >> Part is OK.
A
OK : A < 1mm
[ Adjustment ]
1) A minus driver makes a hole in a tape
on the adjustment hole.
2) Adjust indicator to 0 line with
adjustment part(Move an adjustment
part to left and right and adjust).
3) Put TAPE on adjustment hole after
adjust.

Onkyo M-5000R Specifications

General

Damping factor	130
Amplifier class	-
Frequency range	1 - 250000 Hz
Input sensitivity	700 mV
Audio output channels	2.0 channels
Peak power per channel	150 W
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.02 %
Dynamic power per channel (2 Ohm)	320 W
Dynamic power per channel (3 Ohm)	245 W
Dynamic power per channel (4 Ohm)	196 W
Dynamic power per channel (6 Ohm)	142 W
Dynamic power per channel (8 Ohm)	110 W
RMS power output per channel (8 Ohm)	80 W
XLR out	1
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Silver
Cables included	AC
Connectivity technology	Wired
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (typical)	280 W
Package weight	27000 g

Weight and Dimensions

Depth	432.5 mm
Width	435 mm
Height	187.5 mm
Weight	23500 g
