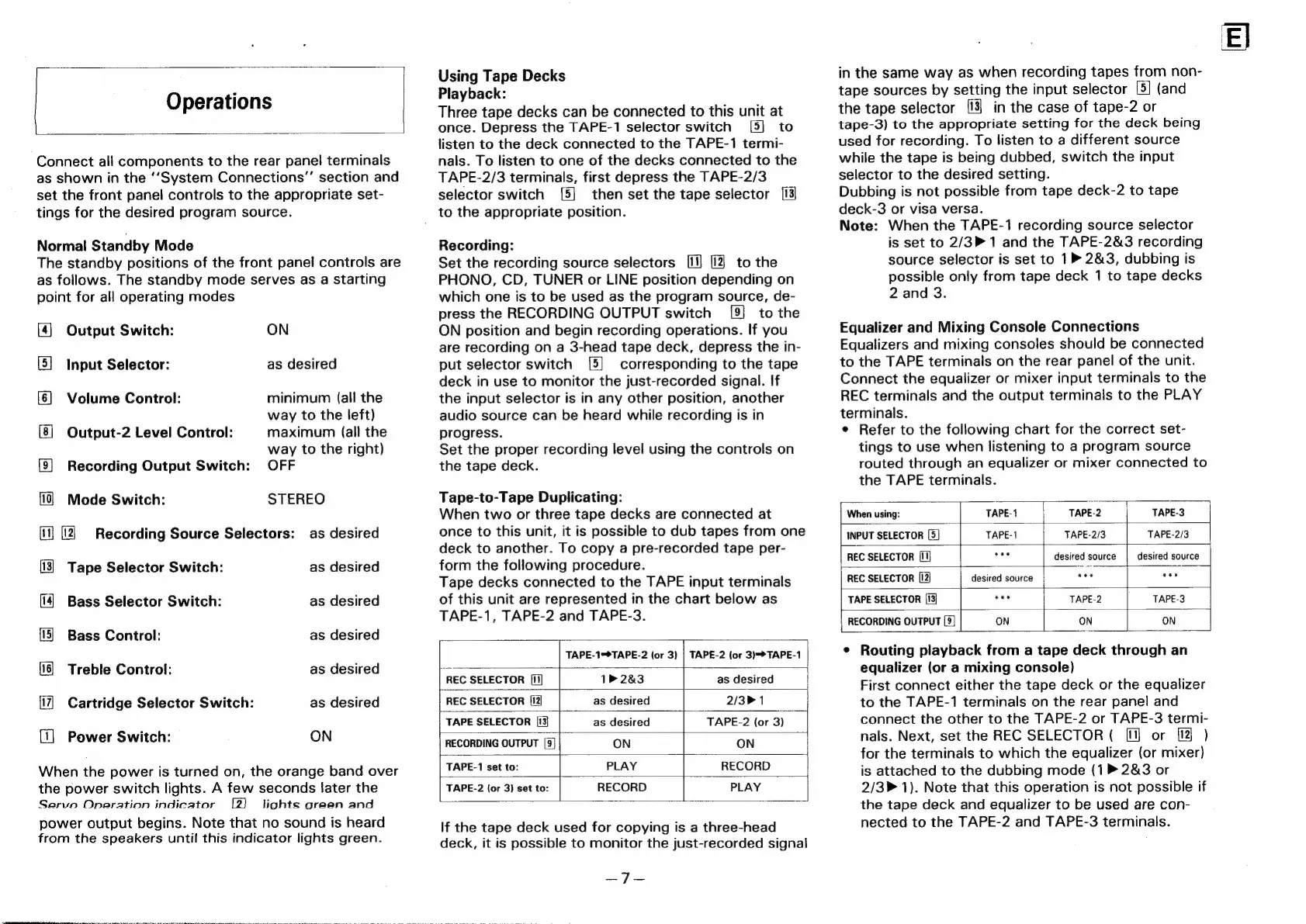

Operations
Connect ali components to the rear panel terminals
as shown in the ‘‘System Connections’’ section and
set the front panel controls to the appropriate set-
tings for the desired program source.
Normal Standby Mode
The standby positions of the front panel controls are
as follows. The standby mode serves as a starting
point for all operating modes
Output Switch: ON
Input Selector: as desired
EF & &
minimum (all the
way to the left)
maximum (all the
way to the right)
Volume Control:
|
Output-2 Level Control:
{9} Recording Output Switch: OFF
10} Mode Switch: STEREO
(] [2] Recording Source Selectors: as desired
3] Tape Selector Switch: as desired
4] Bass Selector Switch: as desired
5] Bass Control: as desired
(is) Treble Control: as desired
{7] Cartridge Selector Switch: as desired
[1] Power Switch: ON
When the power is turned on, the orange band over
the power switch lights. A few seconds later the
Servo Operation indicator [2) lights green and
power output begins. Note that no sound is heard
from the speakers until this indicator lights green.
Using Tape Decks
Playback:
Three tape decks can be connected to this unit at
once. Depress the TAPE-1 selector switch [5] to
listen to the deck connected to the TAPE-1 termi-
nals. To listen to one of the decks connected to the
TAPE-2/3 terminals, first depress the TAPE-2/3
selector switch [5] then set the tape selector [13]
to the appropriate position.
Recording:
Set the recording source selectors [11] [12] to the
PHONO, CD, TUNER or LINE position depending on
which one is to be used as the program source, de-
press the RECORDING OUTPUT switch [9] to the
ON position and begin recording operations. If you
are recording on a 3-head tape deck, depress the in-
put selector switch [5] corresponding to the tape
deck in use to monitor the just-recorded signal. If
the input selector is in any other position, another
audio source can be heard while recording is in
progress.
Set the proper recording level using the controls on
the tape deck.
Tape-to-Tape Duplicating:
When two or three tape decks are connected at
once to this unit, it is possible to dub tapes from one
deck to another. To copy a pre-recorded tape per-
form the following procedure.
Tape decks connected to the TAPE input terminals
of this unit are represented in the chart below as
TAPE-1, TAPE-2 and TAPE-3.
TAPE-1=>TAPE-2 (or 3) | TAPE-2 (or 3)->TAPE-1
| REC SELECTOR [ij] i, 1P 2&3 as desired
REC SELECTOR [i as desired 2/31
TAPE SELECTOR [13 as desired ~ TAPE-2 (or 3)
RECORDING OUTPUT [3] ON ON
TAPE-1 set to: PLAY RECORD
TAPE-2 {or 3) set to: RECORD PLAY
If the tape deck used for copying is a three-head
deck, it is possible to monitor the just-recorded signal
ay ee
in the same way as when recording tapes from non-
tape sources by setting the input selector [5] (and
the tape selector [3] in the case of tape-2 or
tape-3) to the appropriate setting for the deck being
used for recording. To listen to a different source
while the tape is being dubbed, switch the input
selector to the desired setting.
Dubbing is not possible from tape deck-2 to tape
deck-3 or visa versa.
Note: When the TAPE-1 recording source selector
is set to 2/3 1 and the TAPE-2&3 recording
source selector is set to 1 2&3, dubbing is
possible only from tape deck 1 to tape decks
2 and 3.
Equalizer and Mixing Console Connections
Equalizers and mixing consoles should be connected
to the TAPE terminals on the rear panel of the unit.
Connect the equalizer or mixer input terminals to the
REC terminals and the output terminals to the PLAY
terminals.
¢ Refer to the following chart for the correct set-
tings to use when listening to a program source
routed through an equalizer or mixer connected to
the TAPE terminals.
TAPE-2
When using: TAPE-1 TAPE-3
INPUT SELECTOR [5] TAPE-1 TAPE-2/3 TAPE-2/3
REC SELECTOR [1i) ara desired source desired source
REC SELECTOR [12 vee
desired source
ds
TAPE SELECTOR [13] il
TAPE-2 TAPE-3
RECORDING OUTPUT [8] ON ON ON
e Routing playback from a tape deck through an
equalizer (or a mixing console)
First connect either the tape deck or the equalizer
to the TAPE-1 terminals on the rear panel and
connect the other to the TAPE-2 or TAPE-3 termi-
nals. Next, set the REC SELECTOR ( [f} or [12 )
for the terminals to which the equalizer (or mixer)
is attached to the dubbing mode (1 2&3 or
2/3 1). Note that this operation is not possible if
the tape deck and equalizer to be used are con-
nected to the TAPE-2 and TAPE-3 terminals.
