Onkyo TA-2800 Service Manual

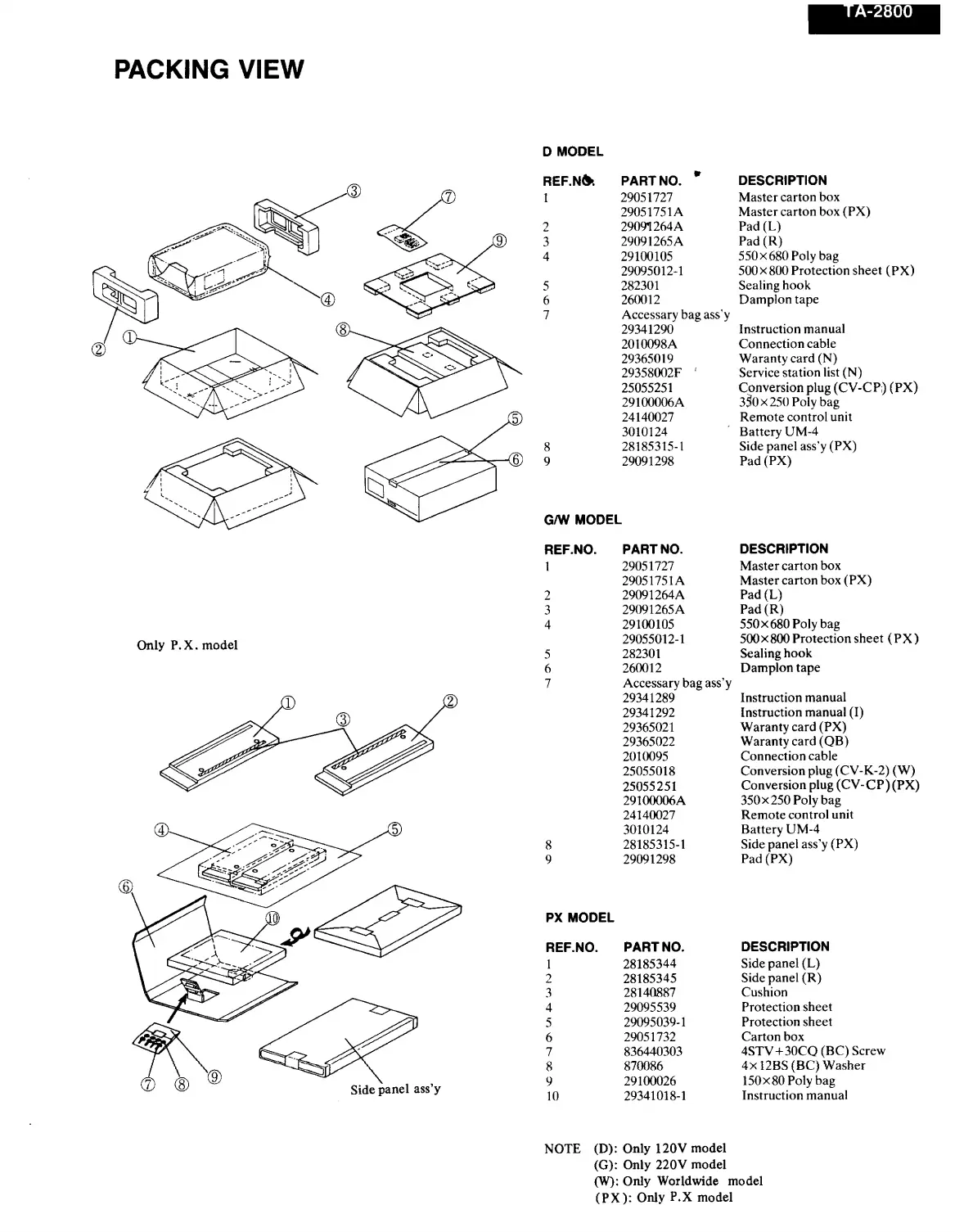

PACKING VIEW
A-2800
D MODEL
REF.N®. PARTNO. ” DESCRIPTION
I 29051727 Master carton box
29051751A Master carton box (PX)
2 29091 264A Pad (L)
3 29091265A Pad (R)
4 29100105 550 x 680 Poly bag
29095012-1 500 x 800 Protection sheet (PX)
5 282301 Sealing hook
6 260012 Damplon tape
7 Accessary bag assy
29341290 Instruction manual
2010098A Connection cable
29365019 Waranty card (N)
29358002F Service station list (N)
25055251 Conversion plug (CV-CP)) (PX)
29100006A 330 x 250 Poly bag
24140027 Remote control unit
3010124 ' Battery UM-4
8 28185315-1 Side panel ass’y (PX)
9 29091298 Pad (PX)
G/W MODEL
REF.NO. PART NO. DESCRIPTION
1 29051727 Master carton box
29051751A Master carton box (PX)
2 29091264A Pad (L)
3 29091265A Pad (R)
4 29100105 550 680 Poly bag
Only P.X. model 29055012-1 500 x 800 Protection sheet (PX)
5 282301 Sealing hook
6 260012 Damplon tape
7 Accessary bag ass’y
29341289 Instruction manual
29341292 Instruction manual (1)
29365021 Waranty card (PX)
29365022 Waranty card (QB)
2010095 Connection cable
25055018 Conversion plug (CV-K-2) (W)
25055251 Conversion plug (CV-CP) (PX)
29100006A 350 x 250 Poly bag
24140027 Remote control unit
3010124 Battery UM-4
8 28185315-1 Side panel ass’y (PX)
9 29091298 Pad (PX)
PX MODEL
REF.NO. PART NO. DESCRIPTION
1 28185344 Side panel (L)
2 28185345 Side panel (R)
3 28140887 Cushion
4 29095539 Protection sheet
5 29095039-1 Protection sheet
6 29051732 Carton box
7 836440303 4STV+30CO (BC) Screw
®
§
870086
4x
12BS
(BC)
Washer
; , 9 29100026 15080 Poly ba
Side panel ass'y 10 29341018-1 Instruction manual
NOTE (D): Only 120V model
(G): Only 220V model
(W): Only Worldwide model
(PX): Only P.X model
