Onkyo TX-7620 - Parts List

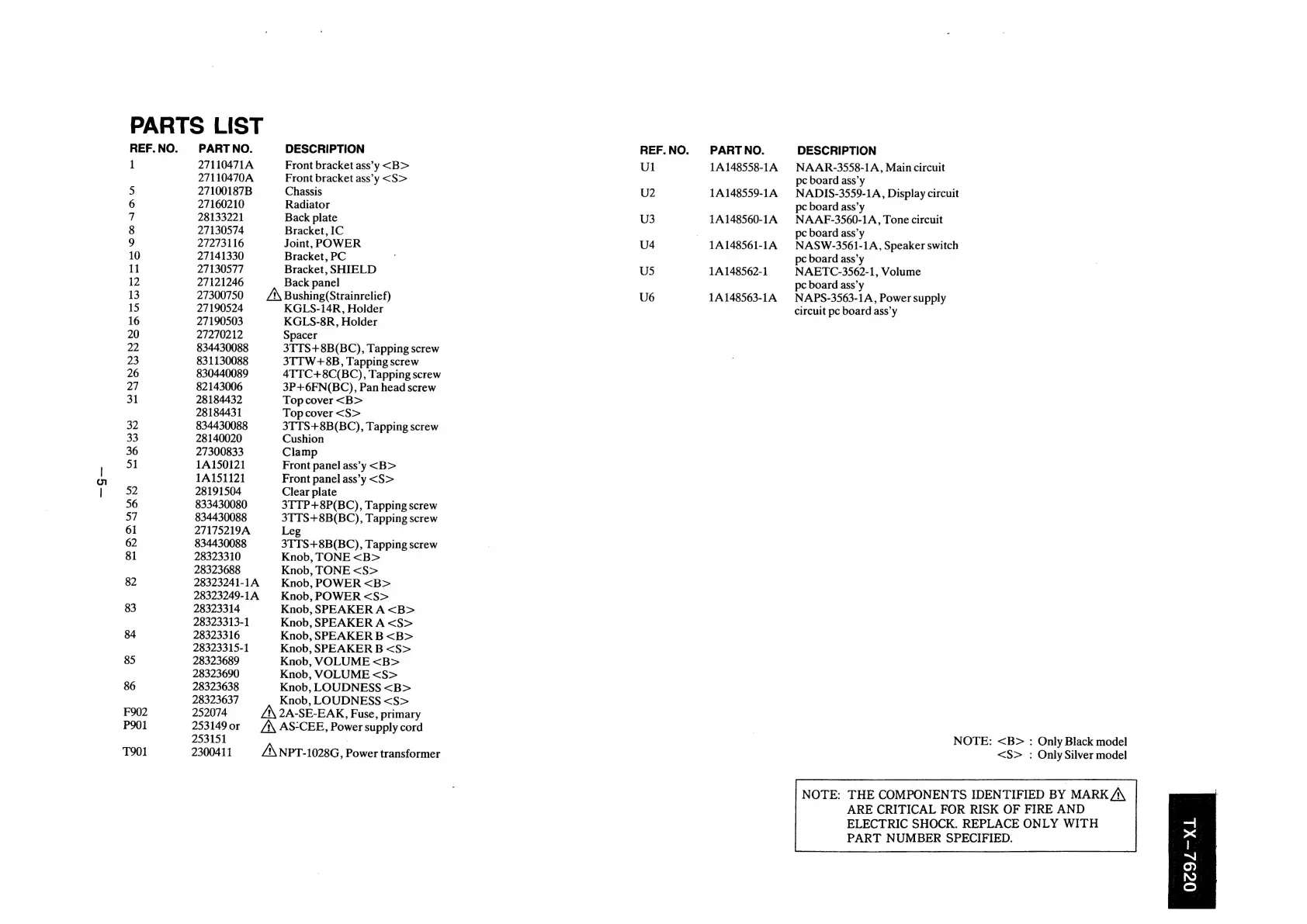

PARTS LIST
REF. NO.
84
85
86
F902
P901
T901
PART NO.
27110471A
27110470A
27100187B
27160210
28133221
27130574
27273116
27141330
27130577
27121246
27300750
27190524
27190503
27270212
834430088
831130088
830440089
82143006
28184432
28184431
834430088
28140020
27300833
1A150121
1A151121
28191504
833430080
834430088
27175219A
834430088
28323310
28323688
28323241-1A
28323249-1A
28323314
28323313-1
28323316
28323315-1
28323689
28323690
28323638
28323637
252074
253149 or
253151
2300411
DESCRIPTION
Front bracket ass’y <B>
Front bracket ass’y <S>
Chassis
Radiator
Back plate
Bracket, IC
Joint, POWER
Bracket, PC
Bracket, SHIELD
Back panel
AN Bushing(Strainrelief)
KGLS-14R, Holder
KGLS-8R, Holder
Spacer
3TTS+8B(BC), Tapping screw
3TTW+8B, Tapping screw
4TTC+8C(BC), Tapping screw
3P+6FN(BC), Pan head screw
Top cover <B>
Top cover <S>
3TTS+8B(BC), Tapping screw
Cushion
Clamp
Front panel ass’y <B>
Front panel ass’y <S>
Clear plate
3TTP+8P(BC), Tapping screw
3TTS+8B(BC), Tapping screw
Leg
3TTS+8B(BC), Tapping screw
Knob, TONE <B>
Knob, TONE <S>
Knob, POWER <B>
Knob, POWER <S>
Knob, SPEAKER A <B>
Knob, SPEAKER A <S>
Knob, SPEAKER B <B>
Knob, SPEAKER B <S>
Knob, VOLUME <B>
Knob, VOLUME <S>
Knob, LOUDNESS <B>
Knob, LOUDNESS <S>
Z\ 2A-SE-EAK, Fuse, primary
Z\ AS-CEE, Power supply cord
ZN NPT-1028G, Power transformer
REF. NO.
U1
U2
U3
U4
U5
U6
PART NO.
1A148558-1A
1A148559-1A
1A148560-1A
1A148561-1A
1A148562-1
1A148563-1A
DESCRIPTION
NAAR-3558-1A, Main circuit
pc board ass’y
NADIS-3559-1A, Display circuit
pc board ass’y
NAAF-3560-1A, Tone circuit
pc board ass’y
NASW-3561-1A, Speaker switch
pc board ass’y
NAETC-3562-1, Volume
pc board ass’y
NAPS-3563-1A, Power supply
circuit pc board ass’y
NOTE: <B> : Only Black model
<S> : Only Silver model
NOTE: THE COMPONENTS IDENTIFIED BY MARK /\
ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH
PART NUMBER SPECIFIED.
