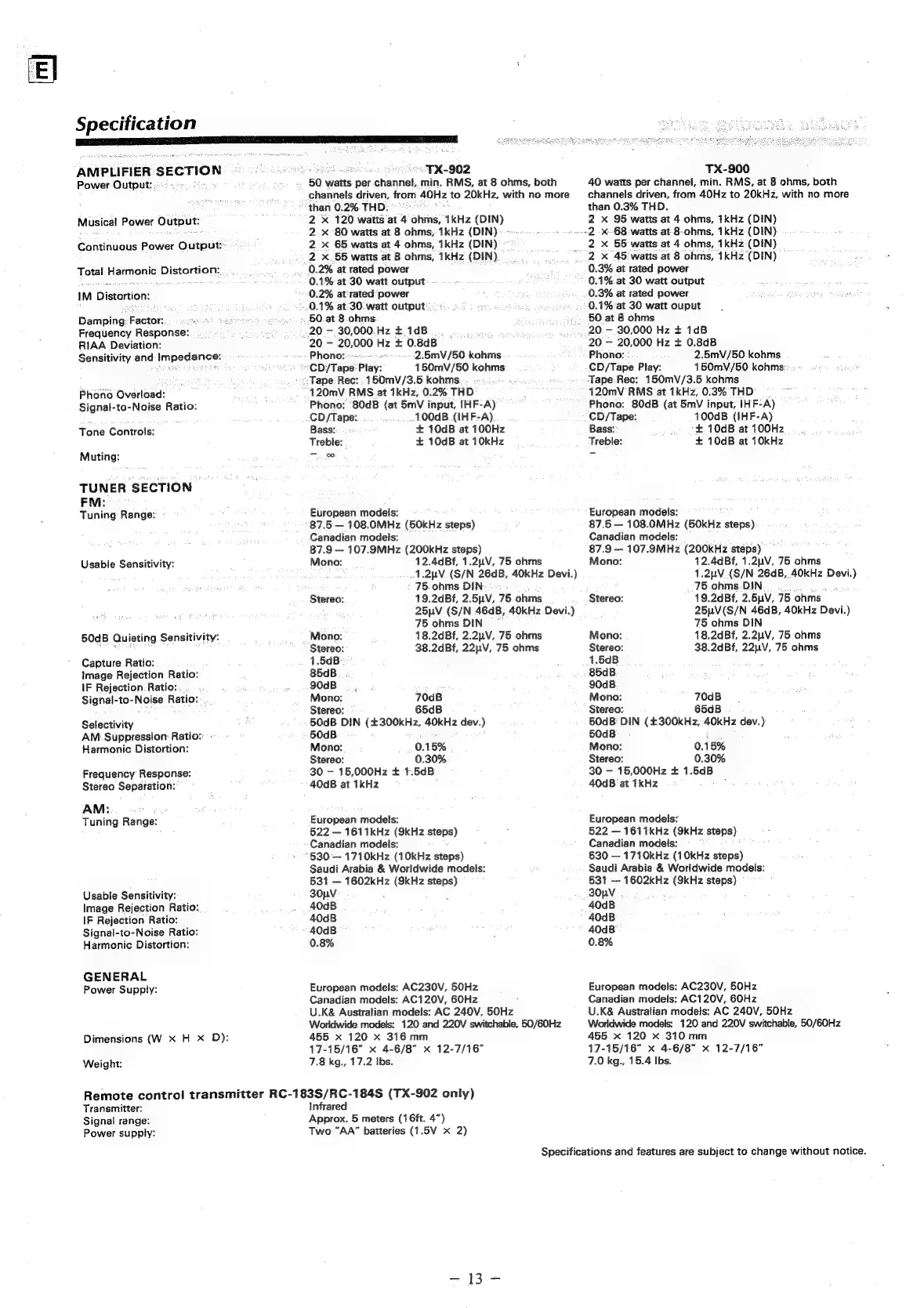

Onkyo TX-902 - Specification

Specification
cae Of RTECS ET OE
AMPLIFIER SECTION
Power Output:
Musical Power Output:
Continuous Power Output::
Total Harmonic Distortion.
iM Distortion:
Damping: Factor:.
Frequency Response:
RIAA Deviation:
Sensitivity and impedance: .--
Phono Overload:
Signal-to-Noise Ratio:
Tone Controls:
Muting:
TUNER SECTION
FM:
Tuning Range: -
Usable Sensitivity:
50dB Quieting Sensitivity:
Capture Ratio:
Image Rejection Ratio:
IF Rejection. Ratio: ..
Signa!-to-Noise Ratio: . .
Selectivity
AM. Suppression: Ratio: «
Harmonic Distortion:
Frequency Response:
Stereo Separation:
AM:
Tuning Range:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to-Noise Ratio:
Harmonic Distortion:
GENERAL
Power Supply:
Dimensions (W x H X D):
Weight:
»““CD/Tape: Play:
f “TX-902
50\ watts per channel, min. RMS, at 8 ohms, both
channels driven, from 40Hz to 20kHz, with no more
than 0.2%. THD. <>
2 x 120 watts at 4 ohms, 1kHz (DIN)
2.x 80 watts at 8 ohms, 1kHz (DIN)
2.x 65 watts at 4 ohms, 1kHz (DIN) ~~
2 x.55 watts at 8 ohms, 1kHz (DIN).
“° 0.2% at rated power
0.1% at 30 watt output: -
0.2% at: rated power
0.1% at 30-watt output: .:
» 50.at 8-ohms.
-20 -.30,000.Hz + .1dB
20 — 20,000 Hz + 0.8dB
Phono: --: 2:5mV/50 kohms
150mV/50 kohms
Tape Rec:.. 150mV/3.5 kohms
“120mV RMS. at 1kHz, 0.2% THD
Phono: 80dB (at SmV input, !HF-A)
CD/Tape: 1.00dB (IHF-A).
Bass: : + 10dB at 100Hz
Trebie: + 10dB at 10kHz
= 00
European models:
87.5 — 108.0MHz (50kHz steps)
Canadian models:
87.9 — 107.9MHz (200kHz steps)
Mono: 12.4dBf, 1.2uV, 75 ohms
.1,2pV_(S/N.26dB, 40kHz Devi.)
: 75.ohms DIN
Stereo: 19.2dBf, 2.5pV, 75 ohms
: 25pV (S/N 46dB, 40kHz Devi.)
75 ohms DIN
Mono: 18.2dBf, 2.2nV, 75 ohms
~ Stereo: 38.2dBf, 22nV, 75 ohms
. 1,5dB
85qaB..
90dB_ Ct :
Mono: 70dB
Stereo: 65dB
50dB DIN (+300kHz, 40kHz dev.)
50dB
Mono: 0.15%
Stereo: 0.30%
30 ~ 15,000Hz + 1.5dB
40dB at 1kHz
European models:
522 — 1611kHz (9kHz steps)
Canadian models:
“630 — 1710kHz (10kHz steps)
Saudi Arabia & Worldwide models:
531 — 1602kHz (9kHz steps)
30nV
40dB
40dB
40dB
0.8%
European models: AC230V, 50Hz
Canadian models: AC120V, 60Hz
U.K& Australian models: AC 240V, 50Hz
Worldwide models: 120 and 220V switchable, 50/60Hz
455 x 120 x 316mm
17-15/16" x 4-6/8" x 12-7/16"
7.8 kg., 17.2 Ibs.
Remote
control
transmitter
RC-183S/RC-184S
(TX-902
only)
Transmitter:
Signal range:
Power supply:
Infrared
Approx. 5 meters (16ft. 4”)
Two “AA” batteries (1.5V x 2)
TX-900
40 watts per channel, min. RMS, at 8 ohms, both
channels driven, from 40Hz to 20kHz, with no more
than 0.3% THD.
2 x 95 watts at 4 ohms, 1kHz (DIN)
-2 x-68.watts at-8-ohms, 1kHz (DIN)
2 x 55 watts at 4 ohms, 1kHz (DIN)
2 x 45 watts at 8 ohms, 1kHz (DIN) —
0.3% at rated power
0.1%: at.30 watt. output
0.3% at rated power
0.1%: at. 30 watt ouput
50.at 8 ohms
20 — 30,000 Hz + 1dB
20 — 20,000 Hz + 0.8dB
Phono: : 2.5mV/50.kohms
CD/Tape Play: 150mV/50 kohms
Tape:Rec: 150mV/3.5 kohms
120mV' RMS at 1kHz, 0:3% THD
Phono: 80dB (at 5mV input, IHF-A)
CD/Tape: 100dB (IHF-A)
Bass: . /£.10dB at 100Hz
Treble: ~ £ 10dB at 10kHz
European models:
87.5 — 108.0MHz (50kHz steps).
Canadian models:
87,9 — 107.9MHz (200kHz steps)
Mono: 12.4dBf, 1.2nV, 75 ohms
1.2nV (S/N 26dB, 40kHz seas
75 ohms.DIN._ ;
Stereo: 19.2dBf, 2.5pV, 75 ohms
25pV(S/N 46dB, 40kHz Devi.)
75 ohms DIN
Mono: 18,.2dBf, 2.2nV, 75 ohms
Stereo: 38.2dBf, 22nV, 75 ohms
1.5dB
85dB
90d8
Mono: 70dB
Stereo: 65dB
50dB DIN (+300kHz, 40kHz dev.)
50dB
Mono: 0.1 5%
Stereo: 0.30%
30 — 15,000Hz + 1.5dB
40dB at 1kHz
European models:
522 — 1611kHz (9kHz steps)
Canadian models: :
530 — 1710kHz (10kHz steps)
Saudi Arabia & Worldwide models:
531 — 1602kHz = nre steps)
30pnV
40dB
40dB
40d8
0.8%
European modeis: AC230V, 50Hz
Canadian models: AC120V, 60Hz
U.K& Australian models: AC 240V, 50Hz
Worldwide models: 120 and 220V switchable, 50/60Hz
455 x 120 x 310mm
17-15/16" x 4-6/8" x 12-7/16"
7.0 kg., 15.4 Ibs.
Specifications and features are subject to change without notice.
