For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (23)
b Remote control sensor (5)
c Display (10)
d MASTER VOLUME control and indicator (26, 51)
e HYBRID STANDBY indicator (59)
f PURE AUDIO button and indicator (42)
g Input selector buttons (26)
h Front flap

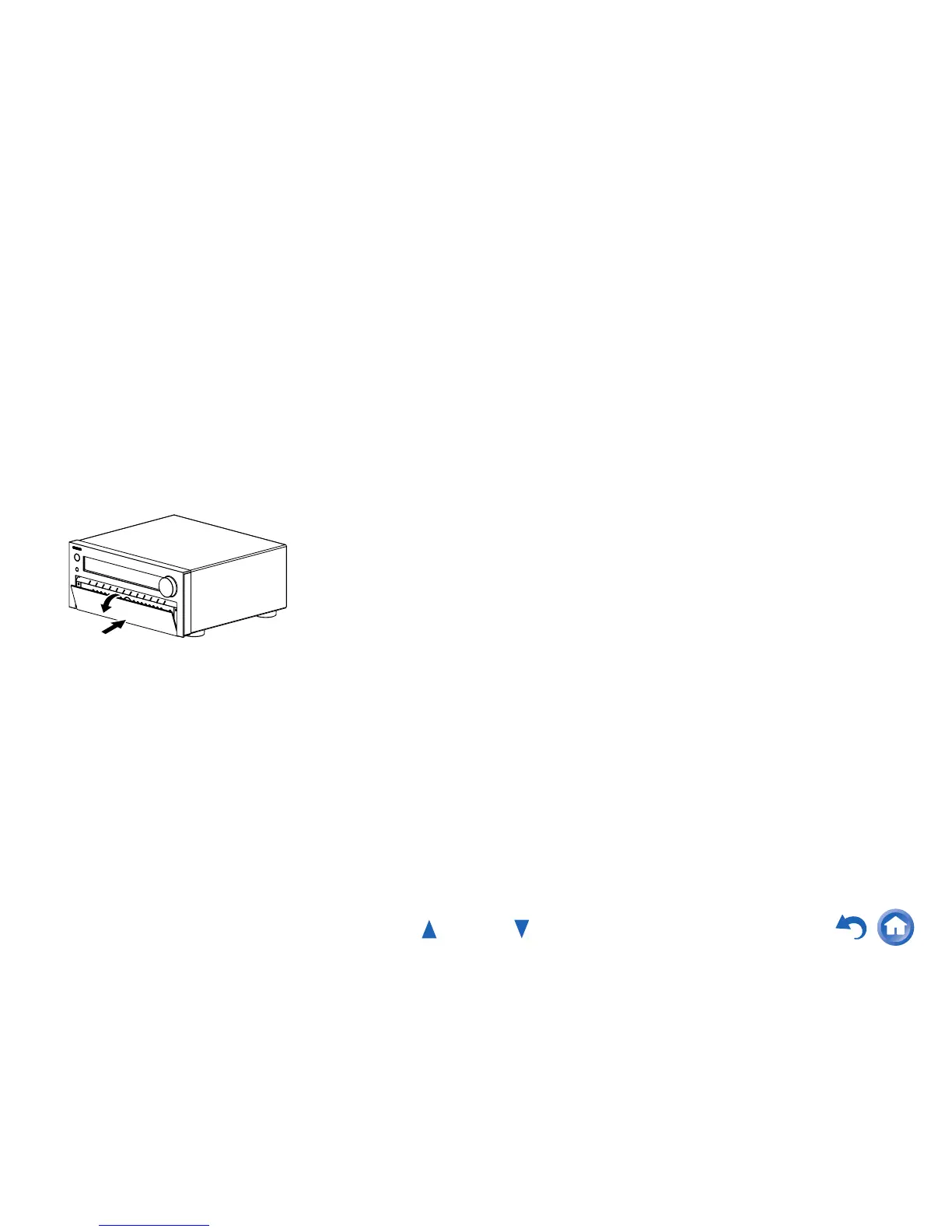

Gently push on the lower end of the front panel to open
the flap.
i PHONES jack (52)
j ZONE 2, ZONE 3, and OFF buttons (85)
k TONE and Tone Level buttons (55)
l MONITOR OUT button (60)
m DISPLAY button (51)
n TUNING q/w (34), PRESET e/r (34), cursor and
enter (middle) buttons
o DIMMER button (North American models) (51)
p MEMORY button (34)
q TUNING MODE button (34)
r LISTENING MODE buttons (42)
s WHOLE HOUSE MODE button (52)
t SETUP MIC jack (40)
u SETUP button (58)
v HOME button (50)
w RETURN button
x USB port (19)
y AUX INPUT jacks (18, 19)
z RT/PTY/TP button (European models) (37)
