Onkyo TX-NR3009

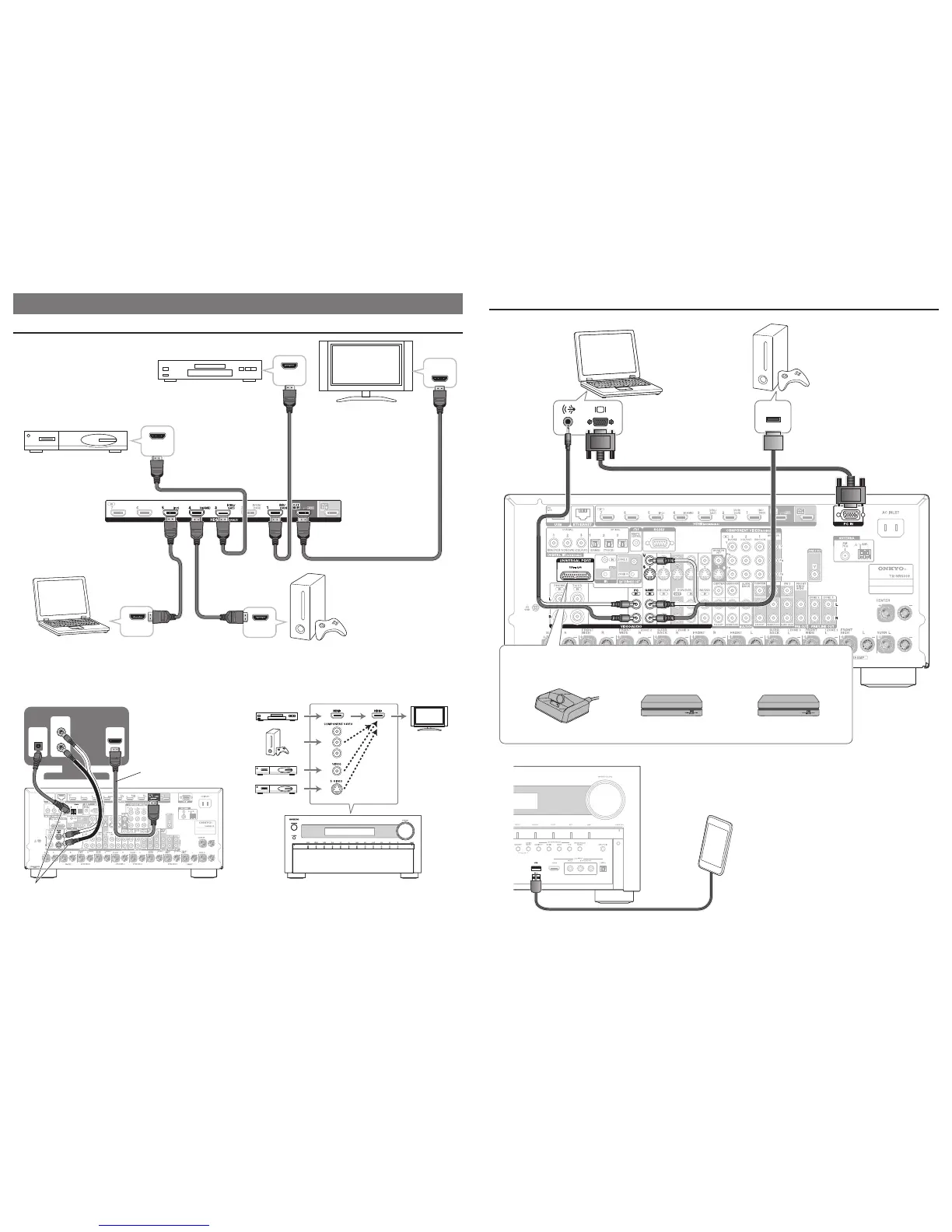

Connecting Components without HDMI
AV OUT
Portable player
Game
console
Personal
computer
You can connect various Onkyo components to the UNIVERSAL PORT jack.
Dock for iPod UP-A1 HD Radio Tuner UP-HT1 DAB Tuner UP-DT1
The Onkyo Universal Port Options are sold separately and their availability depend on the region.
The content information is displayed
(lists are displayed) on-screen, and you
can control the content while looking at
the TV screen.
- 3 - - 4 -
3. Connecting Your Components
Connecting Components with HDMI
HDMI
IN
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
Please turn on “HDMI Control
(RIHD)” from the setup menu.
Blu-ray Disc/
DVD player
TV
Satellite/cable
set-top box, etc.
Game
console
Personal
computer
The components connected to each terminal (BD/DVD, GAME, etc.) can be selected with the input selector buttons of the same
name on the front panel. Note that these default assignments can be changed. For details, please refer to the instruction manual.
Listening to TV audio (Optional)
■
Video upconversion to HDMI
■
HDMI
IN
DIGITAL
OPTICAL
OUT
AUDIO
OUT
L
R
TV
Choose an audio connection that matches
your TV (without Audio Return Channel).
When using a TV that
supports Audio Return
Channel, both audio/
video signals from the AV
receiver and the audio
output from the TV are
carried bi-directionally on
a single HDMI cable.
TV
If you’ve connected your TV to the AV receiver with an HDMI
cable, composite video, S-video and component video sources
can be upconverted and output by the HDMI output.
