Onkyo TX-NR818 Product Release

TX-NR818
7.2-Channel Network A/V Receiver

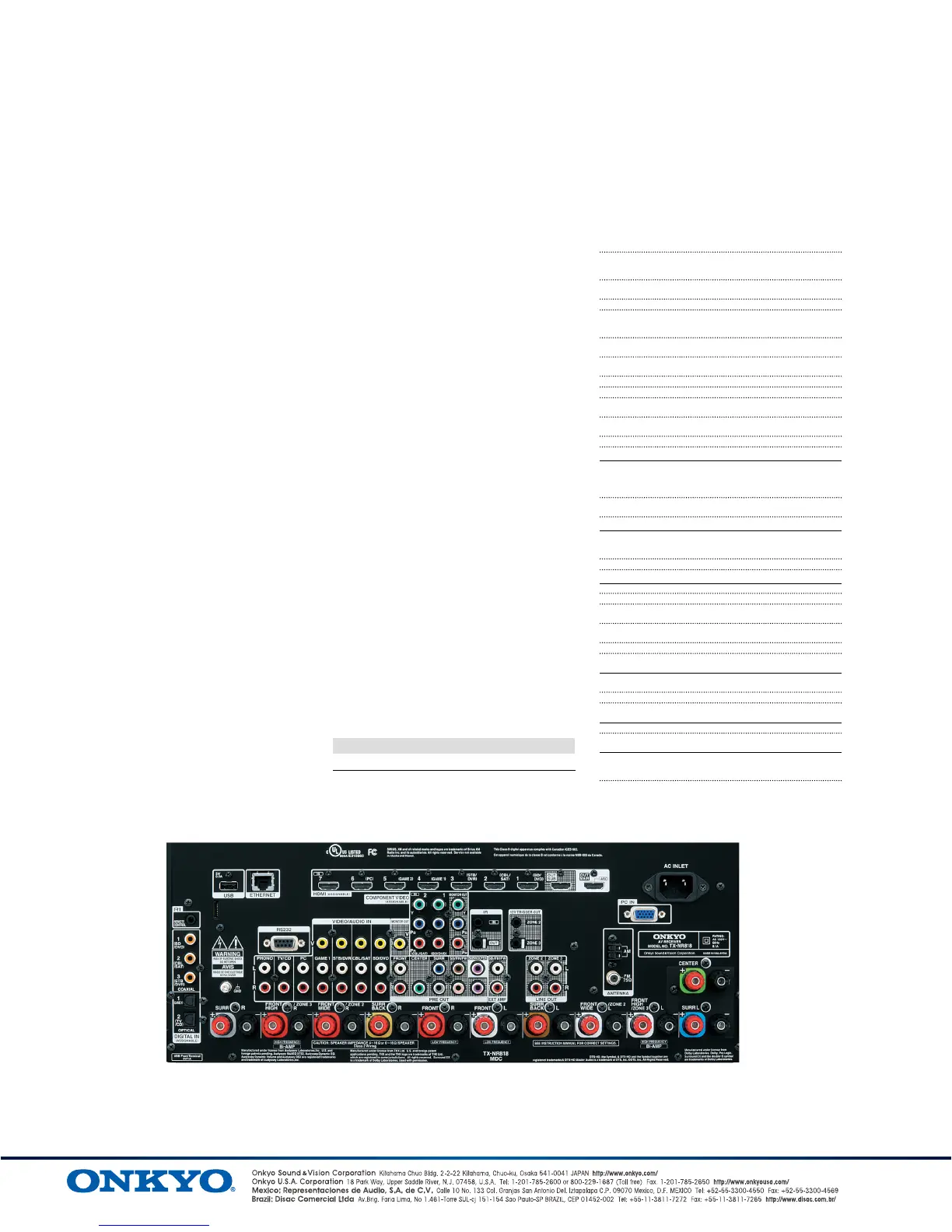

SPECIFICATIONS
Center 135 W (8 Ohms, 20 Hz–20 kHz,
0.08% THD, 2 Channels Driven, FTC)
145 W (8 Ohms, 1 kHz, 0.7% THD,
2 Channels Driven, FTC)
160 W (6 Ohms, 1 kHz, 0.1% THD,
2 Channels Driven, FTC)
Surround L/R 135 W/Ch (8 Ohms, 20 Hz–20 kHz,
0.08% THD, 2 Channels Driven, FTC)
145 W/Ch (8 Ohms, 1 kHz, 0.7% THD,
2 Channels Driven, FTC)
160 W/Ch (6 Ohms, 1 kHz, 0.1% THD,
2 Channels Driven, FTC)
Surround Back L/R, Front High/Wide L/R, or Zone 2/3 L/R
135 W/Ch (8 Ohms, 20 Hz–20 kHz,
0.08% THD, 2 Channels Driven, FTC)
145 W/Ch (8 Ohms, 1 kHz, 0.7% THD,
2 Channels Driven), FTC
160 W/Ch (6 Ohms, 1 kHz, 0.1% THD,
2 Channels Driven, FTC)
Dynamic Power 300 W (3 Ohms, Front)
250 W (4 Ohms, Front)
150 W (8 Ohms, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Rated Power)
Damping Factor 60 (Front, 1 kHz, 8 Ohms)
Input Sensitivity and Impedance
200 mV/47 k-ohms (Line)
2.5 mV/47 k-ohms (Phono MM)
Rated RCA Output Level and Impedance
200 mV/470 Ohms (Line Out)
Maximum RCA Output Level and Impedance
4.6 V/470 Ohms (Line Out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (DSP Bypass)
Tone Control ±10 dB, 50 Hz (Bass)
±10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 110 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance 4 Ohms–16 Ohms or 6 Ohms–16 Ohms
Video Section
Input Sensitivity/Output Level and Impedance
Video 1.0 Vp–p/75 Ohms (Component Y)
0.7 Vp–p/75 Ohms (Component P
B
/C
B
, P
R
/C
R
)
1.0 Vp–p/75 Ohms (Composite)
Component Video Frequency Response
5 Hz–100 MHz/+0 dB, -3 dB
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–107.9 MHz
AM 530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations
General
Power Supply AC 120 V~, 60 Hz
Power Consumption 8.1 A
Standby Power Consumption
0.1 W
Dimensions (W x H x D) 17
1
/
8
˝ x 7
13
/
16
˝ x 17
1
/
8
˝
(435 x 198.5 x 435.5 mm)
Weight 40.3 lbs. (18.3 kg)
CARTON
Dimensions (W x H x D) 23
1
/
8
˝ x 13
1
/
4
˝ x 21
3
/
4
˝
(587 x 337 x 553 mm)
Weight 48.5 lbs. (22.0 kg)
UPC CODE
(B) 751398010545
Supplied Accessories
• Indoor FM Antenna • AM Loop Antenna • Speaker Cable Labels
• Speaker Set-Up Microphone • Instruction Manual
• Quick Start Guide • Remote Controller • AA (R6) Batteries x 2
Amplier Section
Power Output
Front L/R 135 W/Ch (8 Ohms, 20 Hz–20 kHz,
0.08% THD, 2 Channels Driven, FTC)
145 W/Ch (8 Ohms, 1 kHz, 0.7% THD,
2 Channels Driven, FTC)
160 W/Ch (6 Ohms, 1 kHz, 0.1% THD,
2 Channels Driven, FTC)
Due to a policy of continuous product improvement, Onkyo reserves the right to change specications and appearance without notice. THX Select2 Plus is a trademark of THX Ltd. THX may be registered in some jurisdictions. All rights reserved. Manufactured under license from
Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All rights reserved. Manufactured under license from
Audyssey Laboratories, Inc. U.S. and foreign patents pending. Audyssey MultEQ XT32, Audyssey Dynamic EQ, Audyssey Dynamic Volume, and Audyssey DSX are registered trademarks of Audyssey Laboratories, Inc. HDMI, the HDMI logo, and High-Denition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. iPhone, iPod, iPod classic, iPod nano, iPod shufe, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. "Made for iPod" and "Made for iPhone" mean
that an electronic device has been designed to connect specically to iPod or iPhone, respectively, and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this device with iPod or iPhone may affect wireless performance. Android is a trademark of Google Inc. InstaPrevue and the InstaPrevue logo are trademarks or registered trademarks of Silicon Image, Inc. in the United States and other countries.
MHL, the MHL Logo, and Mobile High-Denition Link are trademarks or registered trademarks of MHL LLC in the United States and other counties. x.v.Color is a trademark of Sony Corporation. Windows 7 and the Windows logo are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries. Qdeo and QuietVideo are trademarks of Marvell or its afliates. HQV, StreamClean, and Auto HQV are trademarks or registered trademarks of Integrated Device Technology, Inc. SIRIUS, XM and all related marks and logos are
trademarks of SIRIUS XM Radio Inc. and its subsidiaries. WRAT, Music Optimizer, and Theater-Dimensional are trademarks of Onkyo Corporation. All other trademarks and registered trademarks are the property of their respective holders.
NPR No. 12N22 02/12
Wireless Cloud Streaming, Internet Radio, and
PC-Based Music
Connecting to your home network using a standard LAN
cable, the TX-NR818 makes streaming audio and internet
radio easy. You can also play formats including MP3, AAC,
Apple Lossless, FLAC, and WMA Lossless stored on your
PC through your Onkyo home theater system. The receiver
offers easy access to internet radio channels from Pandora
®
,
Slacker
™
, SIRIUS XM Internet Radio
®
, Last.fm, and vTuner,
plus cloud-based music streaming from Rhapsody, MP3tunes,
Spotify, and AUPEO!*. Wireless networking is enabled with
an optional UWF-1 Wireless LAN Adapter.
*Availability of services depends on region. Some services may require a rmware
update.
Mobile High-Denition Link for Smart Phone
Movies and Photos
The TX-NR818’s front-panel HDMI port is designed for the
connection of compatible smart phones and other portable
electronic devices using the new MHL
™
standard. MHL
allows you to display full 1080p video and still images on
your HDTV with up to 7.1 channels of surround sound. Use
the receiver’s remote to control playback from your phone
as it receives a handy recharge.
InstaPrevue
™
Technology Makes Switching
Sources Easy
The TX-NR818 incorporates InstaPrevue visual port
management technology, making input source selection
easier. InstaPrevue technology provides a live video thumbnail
of the available content on your devices connected via
HDMI. You no longer have to remember that your gaming
console is connected to Port 3, or your Blu-ray player to
Port 1, for example—you can see what’s playing and choose
accordingly.
THX
®
Select2 Plus
™
Certied
THX Select2 Plus certication is specied for rooms where
the screen-to-seat viewing distance is 10 to 12 feet and the
room volume is around 2000 cubic feet. To achieve THX
Select2 Plus certication, the TX-NR818 had to meet the
world’s most demanding standards for home theater audio
quality and performance, and play at reference volume levels
with minimal distortion.
World’s Best Video Processing
Three of the best video processing and enhancement
systems are included to guarantee smooth and accurate
images on your HDTV.
HQV
®
Vida
™
VHD1900
The Vida VHD1900 upscales analog content to 1080p, and enhances
native high-denition sources. The chip employs multi-cadence
tracking, expanded 12-bit color processing, and four-eld motion-
adaptive de-interlacing. Auto HQV
™
enhances the incoming image,
while HQV StreamClean
™
cleans up video from lower-quality online
sources by eliminating mosquito and block noise.
Marvell Qdeo
™
Technology
Qdeo technology upscales 1080p sources to 4K (4096 x 2160)—
even content already upscaled from lower resolutions by the HQV
Vida processor. Played back on a compatible 4K display, your
high-denition content will look more cinematic than ever.
ISF Video Calibration
ISF (Imaging Science Foundation) video calibration dramatically
improves picture quality. Each video input source is independently
calibrated to achieve the best possible performance from your
connected HDTV.
Note: 4K video playback requires a 4K-compatible TV. HDMI pass-through of 4K
content from source devices is not supported. 4K upscaling of analog video is only
available at 480i.
Onkyo Remote Apps for iPod touch
®
/iPhone
®
and
Android Phone
The Onkyo Remote App 2 for iPod touch/iPhone*
1
and
Onkyo Remote for Android phone*
2
both provide an
intuitive way to operate Onkyo network A/V receivers.
Control input sources, adjust settings, and play audio stored
in a smart phone wirelessly (Android phone only) using the
application’s interactive graphical display. The two Remote
Apps are available separately as free downloads.
*1 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All
models require iOS 4.2 or later. *2 Requires Android OS 2.1 or later.
Three High Performance Sound Expansion Systems
A seven-channel system provides a more immersive
entertainment experience, with additional High or Wide
channels convincing you with realistic directional and
ambient effects. Audyssey DSX
®
, Dolby
®
Pro Logic
®
IIz,
and DTS Neo:X
™
expansion systems offer you freedom to
choose your preferred speaker setup. Audyssey DSX can
expand 5.1 sources to incorporate Wide or Height channels.
The Dolby system adds Height channels and stereo source
expansion, while DTS Neo:X offers Wides or Heights with
cinema, music, or game listening modes.
Audyssey MultEQ XT32
Audyssey’s top-of-the-line room correction suite equalizes
the sound to suit the unique acoustics of your listening
space. High-resolution lters are applied to all channels—
including subwoofers—based on information collected from
more than 10,000 individual control points across eight
measurement positions.
Innovative Design and Quality Construction
This receiver is built to deliver superb sound quality.
Processing equipment and amplier circuits are housed
separately to limit electrical interference, while PLL (Phase
Locked Loop) jitter cleaning preserves signal integrity by
eliminating digital clock noise. The amplier’s three-stage
inverted Darlington circuitry—an enhancement to the core
WRAT (Wide Range Amplier Technology) concept—
ensures minimal distortion, and better manages impedance
uctuations. Quality circuitry dovetails with a heavy-duty
power supply for instantaneous response to signal gains. The
resulting sound is reliably pure, even under heavy loads.

Onkyo TX-NR818 Specifications

General

Impedance	6 Ω
Receiver type	Surround
Frequency range	20 - 20000 Hz
Output impedance	470 Ω
Pre-out channels	9.2
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.08 %
Dynamic power per channel (3 Ohm)	300 W
Dynamic power per channel (4 Ohm)	250 W
Dynamic power per channel (8 Ohm)	150 W
Power output per channel (1KHz@6 Ohm)	180 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
Audio (L/R) in	7
Remote (IR) input	1
Composite video in	5
Digital audio optical in	3
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	6.3 mm
Connectivity technology	Wired
Speakers connectivity type	Binding post
Audio formats supported	AAC, FLAC, LPCM, MP3, OGG, WAV, WMA
Wi-Fi	No
RDS features	PS, PTY, RT, TP
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Internet radio services supported	Last.fm, vTuner
Display	LCD
Product color	Silver
Audio decoders	Dolby Pro Logic IIz, Dolby TrueHD, DTS-HD, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	iPhone, iPod
Number of products included	1 pc(s)
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	720 W
THX-certified	THX Select2 Plus
Package weight	22000 g
Cables included	AC
Card reader integrated	-

Weight and Dimensions

Depth	435.5 mm
Width	435 mm
Height	198.5 mm
Weight	18300 g
