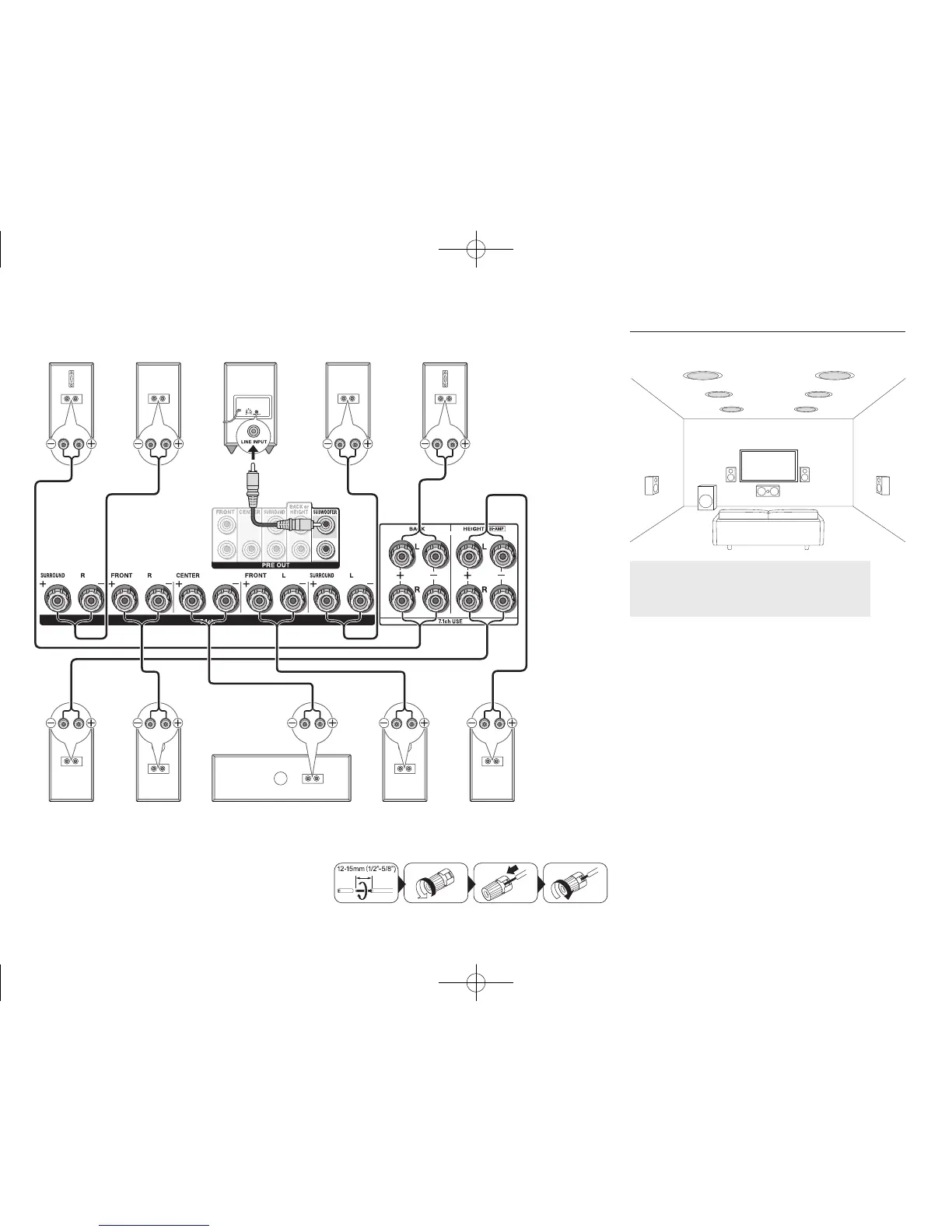

En-7
'
Subwoofer with built-
in power amplifier
8
Right back
7
Left back
$
Center
#
Front R
"
Front L
A speaker configuration
where only one back
speaker is connected is
not supported.
&
Surround R
%
Surround L
9G
Height L
FH
Height R
Make correct connection between the unit's jacks and
speaker's jacks (+ to + and - to -).
Height speaker types
Installing speakers in ceiling
a b
dc
e f
a b
Top front
c d
Top middle
e f
Top Rear
Ceiling speakers, etc. are used for maximizing effects in
Dolby Atmos or Dolby Surround listening mode. Install
Top Front speakers so that they are positioned at a point
between directly above the listening position and directly
above the front speakers. Install Top Middle speakers so
they are directly above the listening position. Install Top
Rear speakers so they are positioned at a point between
directly above the listening position and directly above the
back speakers. You can select
ab
,
cd
, or
ef
on this
unit. For connection with the unit, use the HEIGHT speaker
terminals.
･ Dolby Laboratories recommends placing the speakers
as described in "Installing speakers in ceiling" to obtain
the best Dolby Atmos effect.
