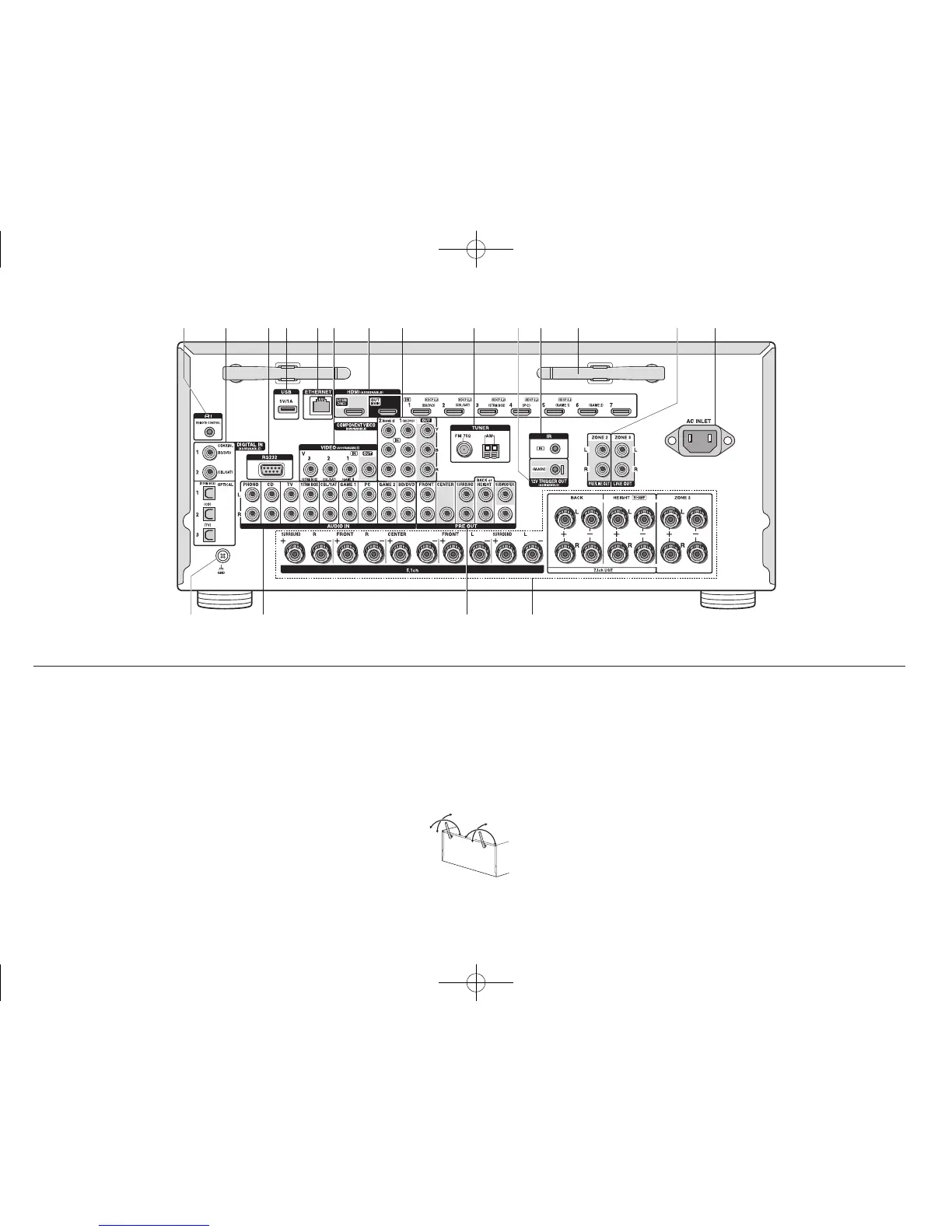

Rear Panel
1
RI REMOTE CONTROL jack: An Onkyo product with RI
jack can be connected and synchronized with this unit.
2
DIGITAL IN COAXIAL/OPTICAL jacks: Digital audio
signals are input.
3
RS232 port: Connected to the home control system.
(
)
4
USB port: A USB storage device is connected so that
music files stored in it can be played. Connect a USB
device with a USB cable to supply it with power.
5
ETHERNET port: Used for LAN connection
6
VIDEO IN/OUT jacks: Composite video input/output
jacks.
7
HDMI IN/OUT jacks: Digital video signals and audio
signals are transmitted between the unit and the
connected devices.
8
COMPONENT VIDEO IN/OUT jacks: Component video
input/output jacks.
9
TUNER AM/FM(75Ω) terminal: The supplied antennas
are connected.
F
12V TRIGGER OUT MAIN jack: Allows you to connect
a device with 12V trigger input jack to enable link
operation between the device and the unit. (
)
G
IR IN jack: Connected to the multiroom remote control
kit. (
)
H
Wireless antenna: Used for Wi-Fi connection or when
using a BLUETOOTH enabled device. Adjust their
angles according to the connection status.
90°
180°
180°
I
PRE/LINE OUT ZONE 2 jack, LINE OUT ZONE 3 jack:
Audio output jack connected to the power amplifier and
pre-main amplifier for multi-zone playback in a separate
room.
J
AC INLET: The supplied
power cord is connected.
K
GND terminal: The ground wire of the turntable is
connected.
L
AUDIO IN jacks: Analog audio signals are input.
M
PRE OUT jacks: A power amplifier or subwoofer with
built-in amplifier is connected.
N
Speaker terminals: Speakers are connected. To use
the Multi-zone function, connect the speakers in the
separate room to the ZONE2 speaker terminals.
＊ Special devices or cable connections are necessary to use the
3
,
F
and
G
functions. Contact the specialized stores for more information.
