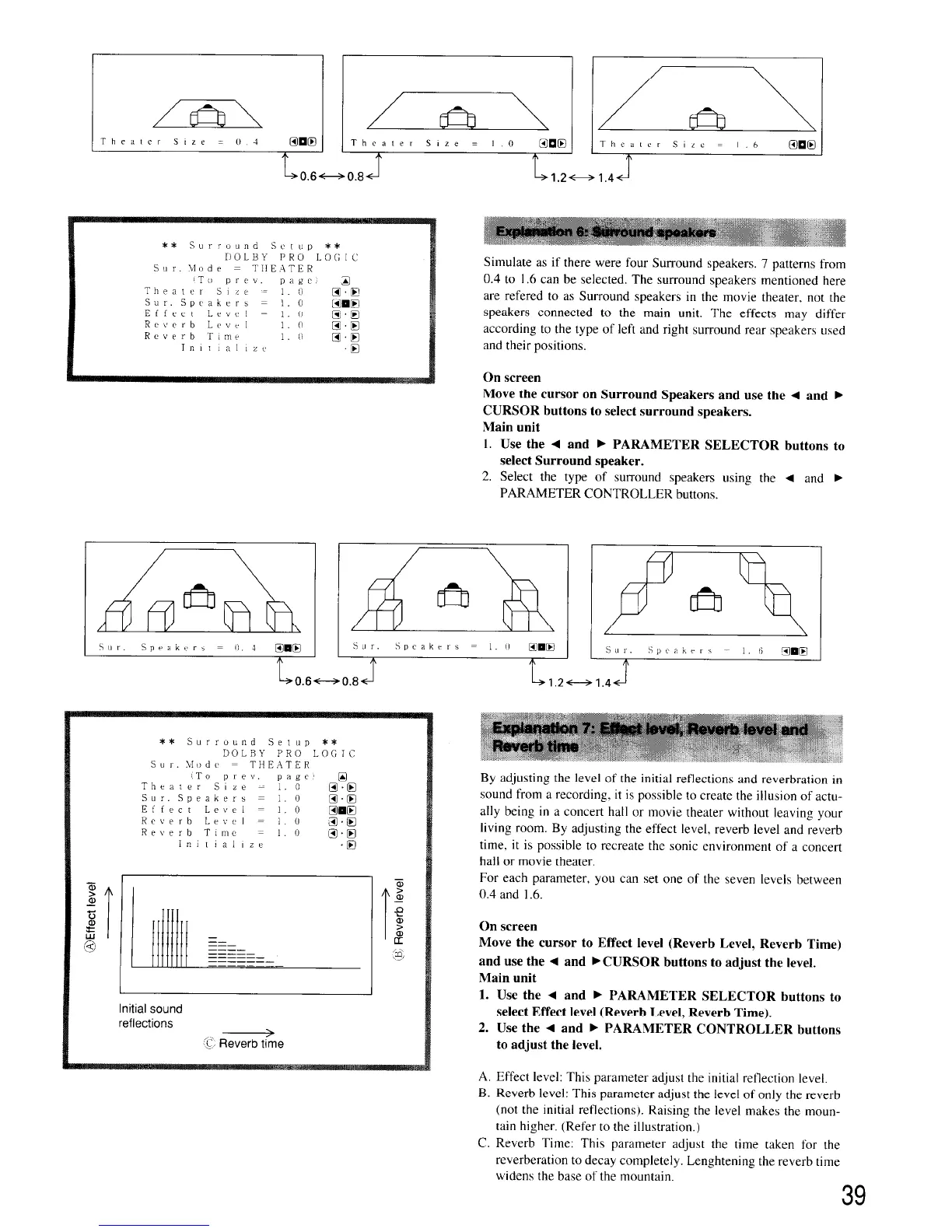

Onkyo TX-SV727 - Explanation 6: Surround Speakers; Explanation 7: Effect Level, Reverb Level and Reverb Time
