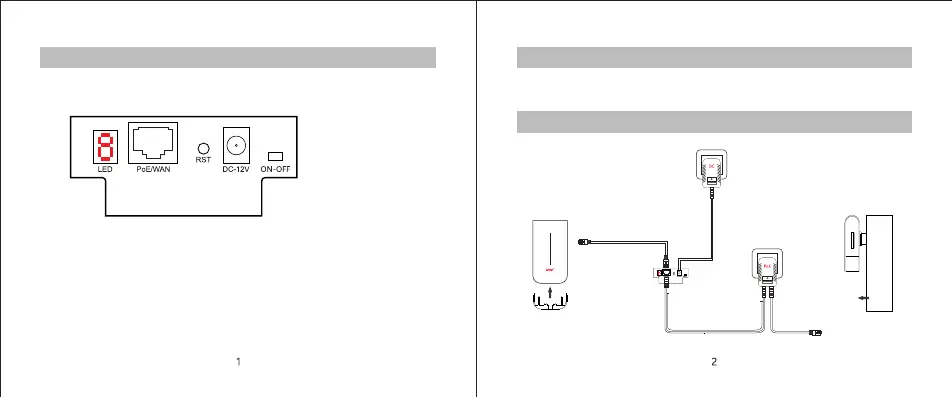

LED: Display the pairing number.
PoE/WAN: transmit data and connect to wired external network.
Reset: Press and release to switch the numbers, long press for 20
seconds to restore factory settings.
ON-OFF: Switch working mode, ON is client mode, OFF is AP mode.
DC-12V: 12V DC power interface.
1.Hardware installation method
CPE interface
2.Installation flow chart
Use a n etwor k cable t o conne ct theWA N to a PC,
rou ter or sw itch ba seon th e netwo rk topo logy.
Com plete d conne ction ,push u p
to re store t heCPE b ack cov er.
Please prepare a long enough network
cable to connectthe PoE adapter and
CPE.Recommend to use a Category5
(or above) shielded network cable with
a ground wire.
Place the CPE to the selected wallposition and
adjust the CPE frontpanel orientation to be
approximately the same as theselected direction.
Wall
Way 2
Way1
3.Hardware installation
Hardware connection-Set up your computer-Login management
interface-Set up your CPE -Test wireless-Set up installation
Connect the WAN of the PoEadapter to the PC,
router or switchbase on the network topology.
To Next Page
