COMPONENTS AND CONTROLS

ENGINE COMPONENTS:

1. Oil llercap with dipstick

2. Oil drain plug

3. Air cleaner cover

4. Fuel stopcock

5. Spark plug cap

6. Engine code

ENGINE COMPONENTS:

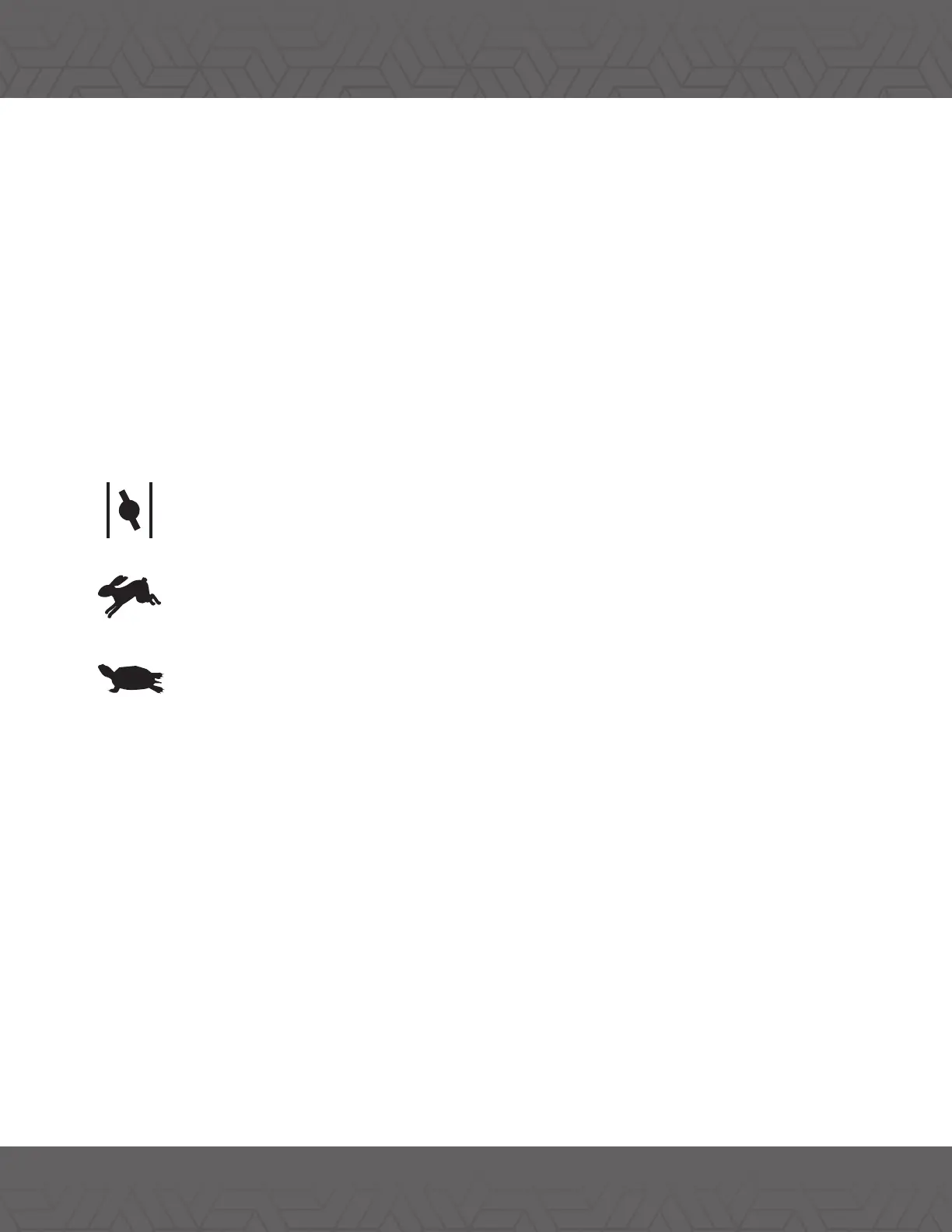

The throttle trigger (generally a lever), tted to the machine, is connected to the engine by a cable.

Consult the machine’s Instructions Manual to identify the throttle trigger and its positions, usually

marked by symbols, corresponding to:

CHOKE: To be used for starting from cold.

FAST: Corresponds to maximum revs; to be used when working.

SLOW: Corresponds to minimum revs.
