19.5” 19.5”
ASSEMBLY

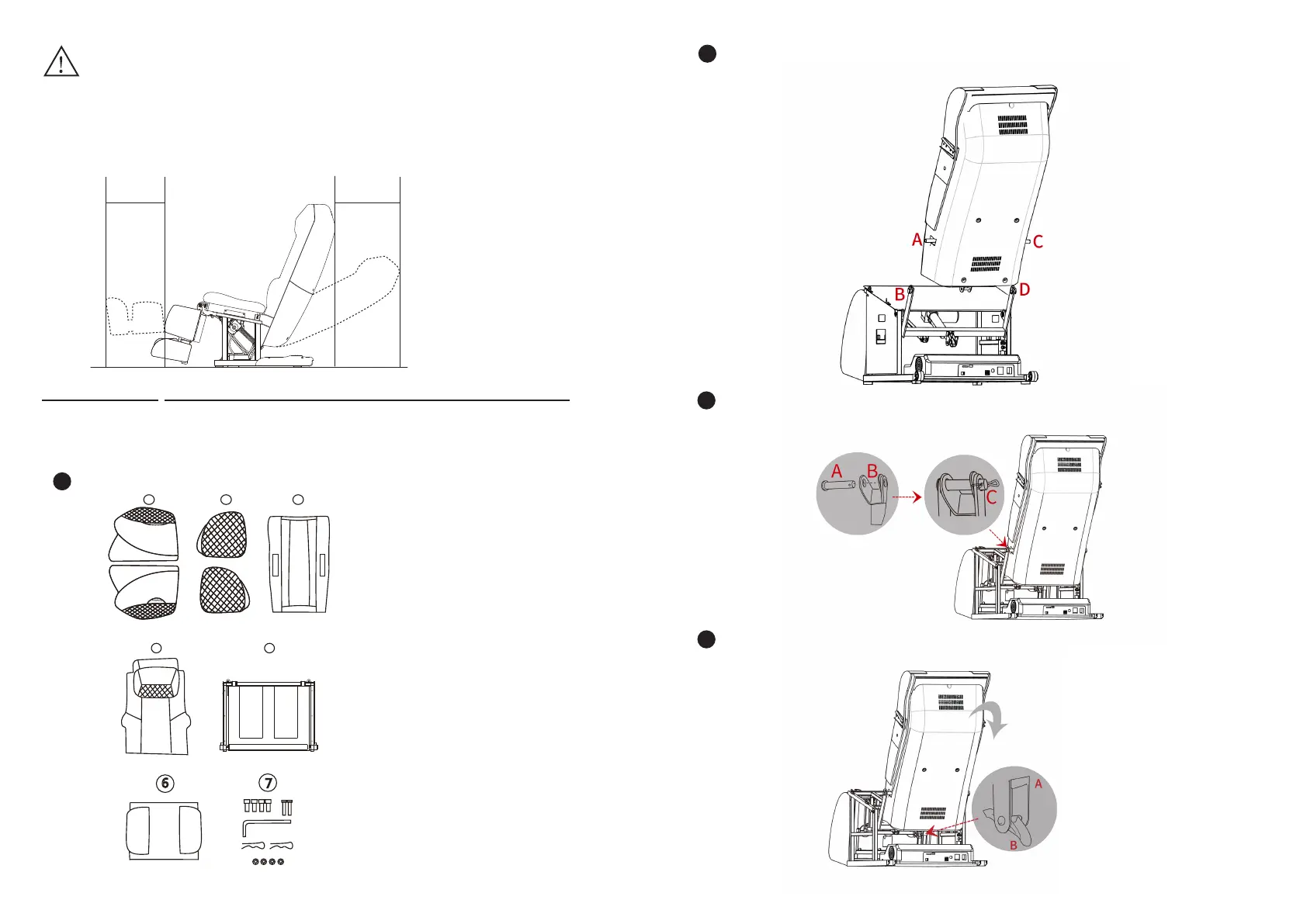

With the backrest reclined backward, the footrest goes up. To avoid collision with any
surrounding objects, a clearance of at least 11.81” at the front and at least 19.5” at the back
should be reserved around the unit.
WARNING
1
Remove the chair parts out of the three cartons:
2
1. Armrest
2. Shouder Unit
3. Backrest
4. Chair Pad
5. Main Unit
6. Seat Cushion
7. Tools:
3
4
4 x Screw
2 x Flat head driver
2 x Allen driver
4 x Flat gasket
05 06
4 5
1 2 3
Place the backrest over the main unit. Securely lock the flat head bolts (A and C) into
both sides (B and D) of the main unit.
Press down the backrest of the main unit , A and B will be locked when a
reminding sound "Ka" is heard
Before installament After installament
Connect the rod flat head rivet (A) with the U stay fork (B), and secure them with a
slit pin (C).
To Next Page
