Optima Scale OP-925 - Specifications

3

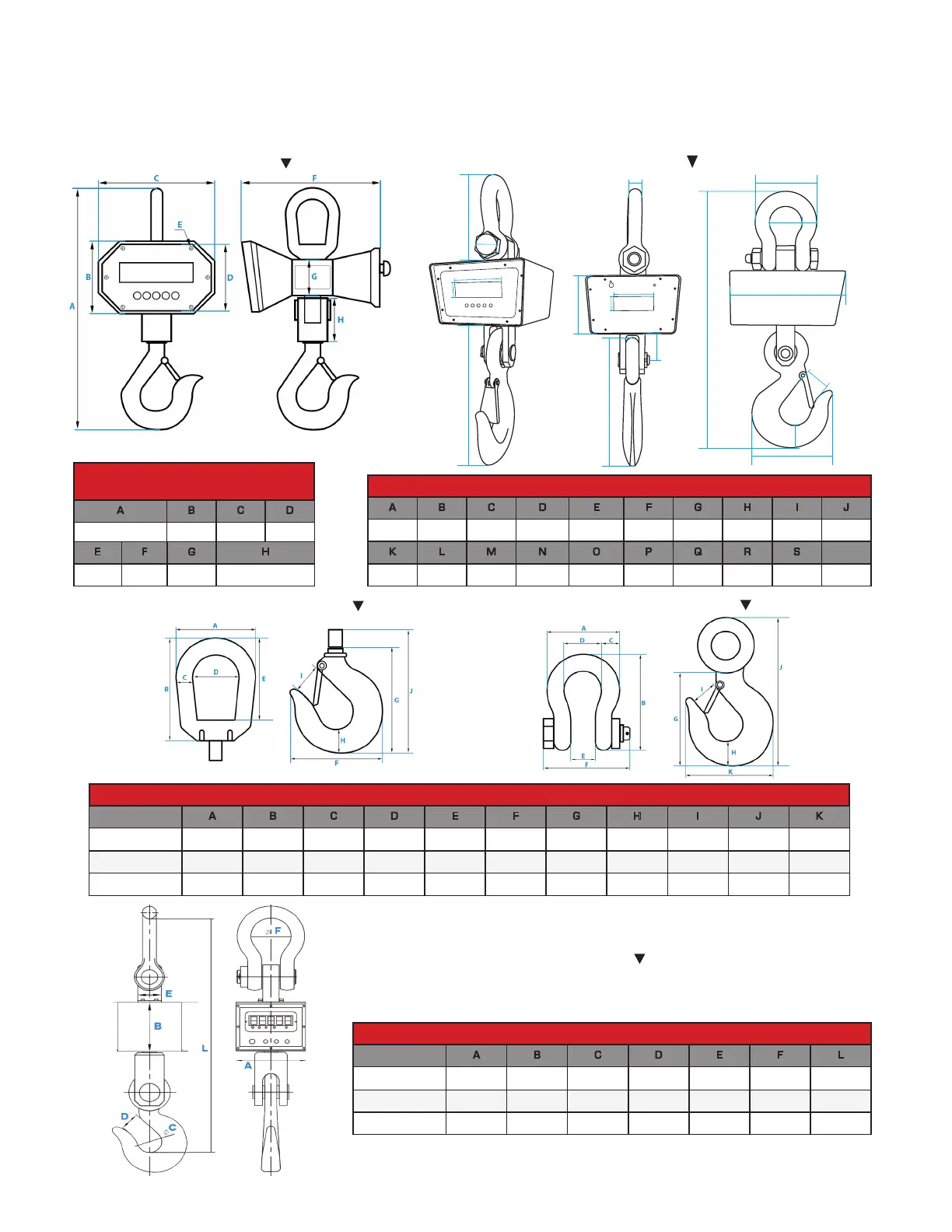

SPECIFICATIONS
SCALE MEASUREMENTS
EXTERIOR DIMS.
6K, 10K, 20K
A B C D
18”; 26”; 29” 6.14” 9.83” 5.65”
E F G H
0.28” 11.2” 2.97” 3.5”;6.5”;8.5”
Up to 10K lbs
Up to 20K+ lbs
HOOK DIMENSIONS
CAPACITY
A B C D E F G H I J K
6,000 lbs 4.52” 5.91” 0.95” 3.58” 4.72” 4.54” 5.36” 1.45” 1.45” 6.06” •
10,000 lbs 5.40” 7” 1.25” 2.95” 1.92” 6.50” 6.40” 1.91” 1.65” 9.50” 6”
20,000 lbs 6” 8” 1.40” 3.21” 2.21” 7.25”
EXTERIOR DIMS. - 40,000 LBS
A B C D E F G H I J
5.5” 20” 6” 1.2” 2.9” 7.5” 17” 4.5” 1.95” 5”
K L M N O P Q R S
•
1.6” 40” 9.25” 15.75” 13.25” 5” 2.25” 4” 3.4” •
A
B
C
E
D
F
J
K
G
H
I
L
M
N
O
P Q
R
S
40,000 lbs
60K-100K DIMENSIONS
CAPACITY
A B C D E F L
60,000 lbs 9.29” 6.25” 5.11” 4.72” 8.34” 5.90” 39.05”
80,000 lbs 11.81” 8.46” 5.90” 5.11” 11.81” 8.42” 47.75”
100,000 lbs 11.81” 8.46” 5.90” 5.11” 11.81” 8.42” 47.75”
60K-100K lbs
6K, 10K, 20K
