SOP-TN-002 Rev. Q
T60 Operations and Service Manual
3
32
CABLE TENSIOMETER
PACIFIC SCIENTIFIC
1
16
3
32
1
8
3
16
7
32
1
4
POUNDS TENSION
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
200
125+
125-
5
1
4
3
16
1
16
1
8
SECTION II
SPECIAL SERVICE TOOLS
2-1. SPECIAL SERVICE TOOLS - No special tools are required for service or maintenance of the cable
Tensiometer.
SECTION III
PREPARATION FOR USE, STORAGE, and SHIPMENT
3-1. PREPARATION FOR USE - The cable Tensiometer is shipped by the manufacturer in its own
carrying case and is ready for use, for avoid damage on common use, the operator shall be use the
Wrist Band adjustable, see figure 1.1. Each time the cable Tensiometer is used it shall be removed
from the case and the serial number stamped on the nameplate checked against the serial number on
the tab of the calibration bar.
3-2. PERFORMANCE – The Tensiometer shall be capable for use under extreme conditions of heat or
cold without affecting the accuracy of readings, the operating temperature range are -65⁰F to 160⁰F
(-53⁰C to 71⁰C.)
3-3. STORAGE - When the cable Tensiometer is not in use it must be placed in its carrying case. There
are no special instructions or precautions relative to storage.
3-4. SHIPMENT - If the cable Tensiometer is to be shipped, it shall be placed in its carrying case and
packed in such a manner as to avoid damage by common carrier.

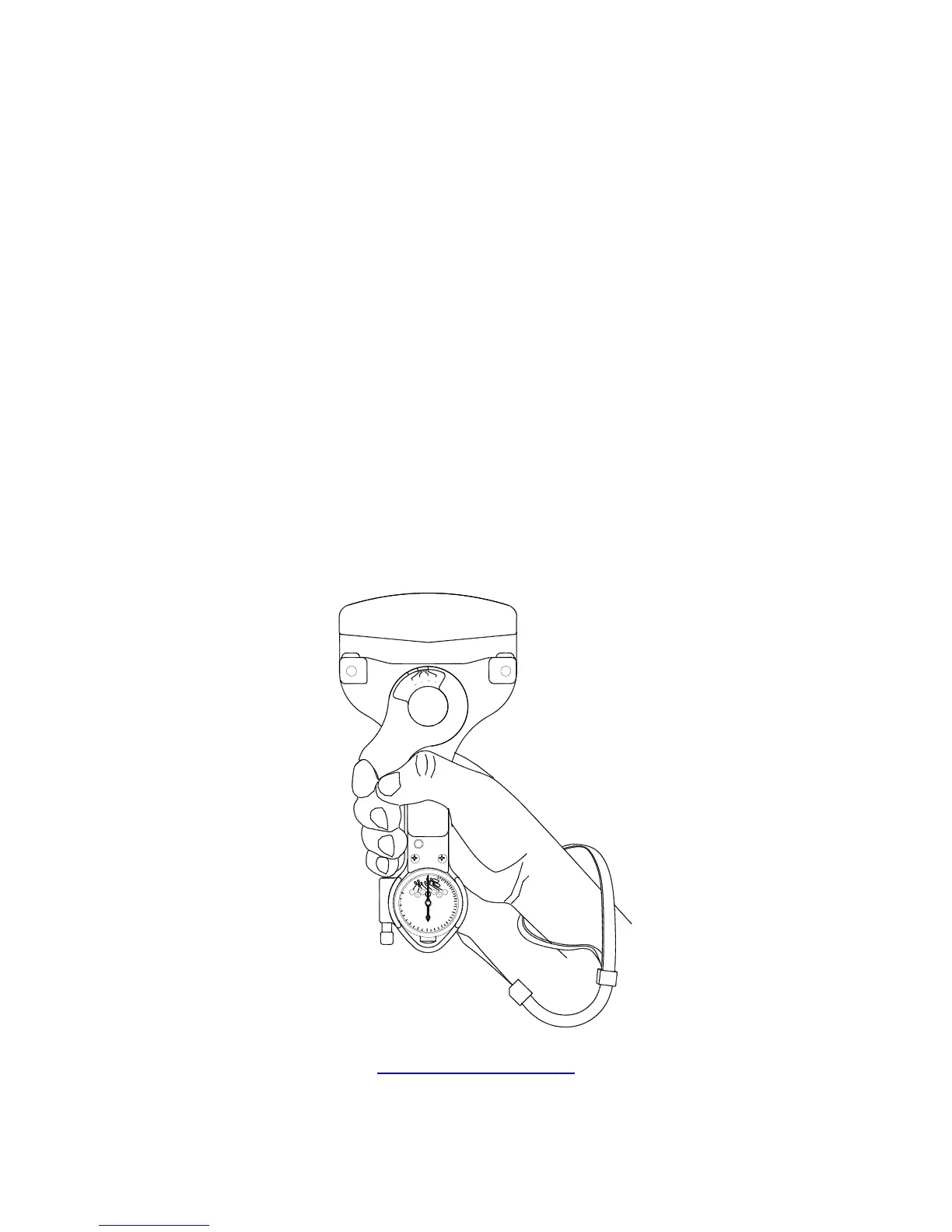

Figure 1.1- Wrist Band
To Next Page
