IT-100 v1.2 5

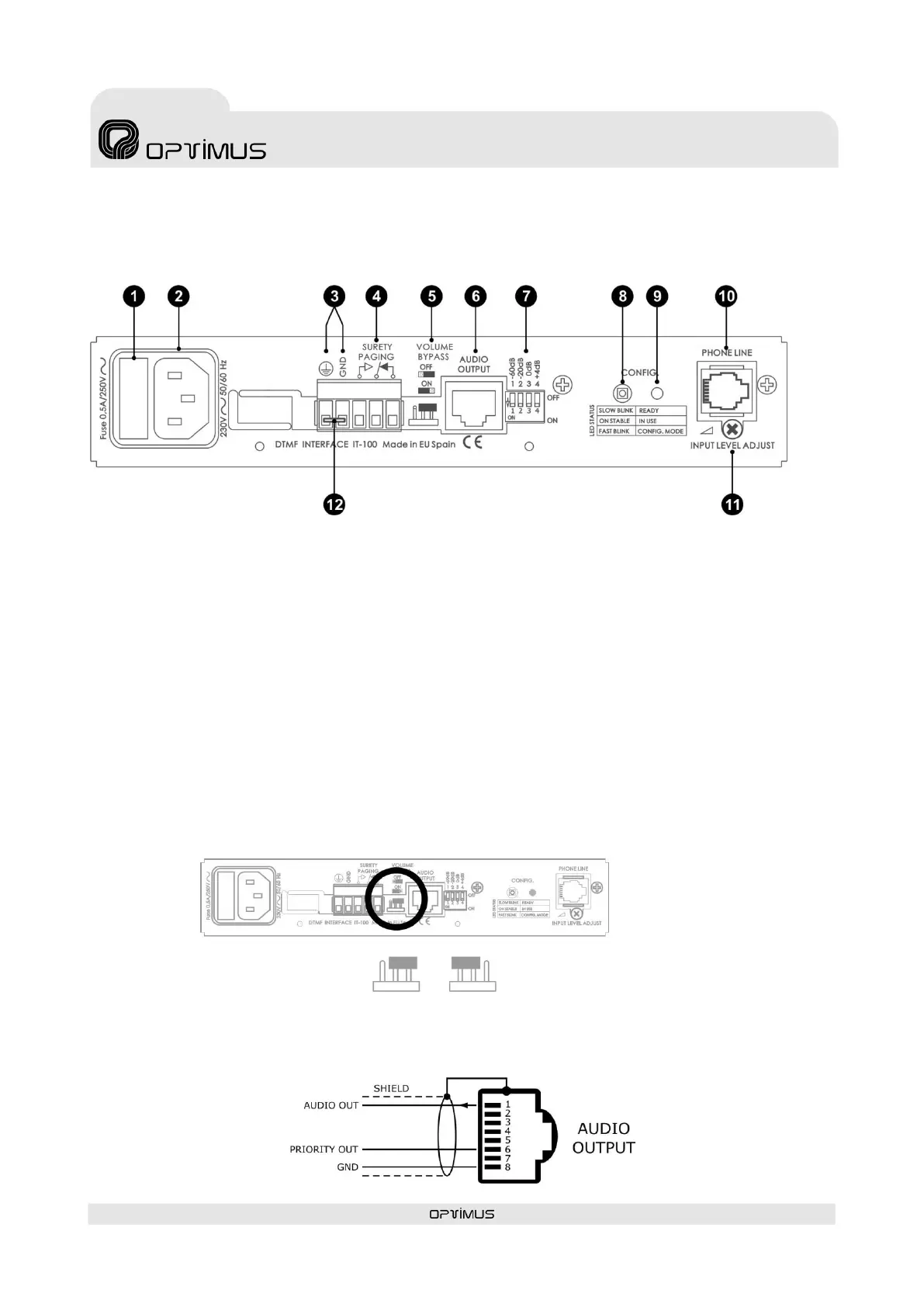

3. REAR VIEW
(1) POWER SUPPLY FUSE: 0.5A fuse (250V AC)
(2) CONNECTION TO THE 230V AC MAINS SUPPLY: Male socket CEE22. For connection to the mains
supply by means of the cable supplied together with the module.
(3) GROUND TO CHASSIS CONNECTION: In all Public Address installations it is very important that
there is one single point of connection between the signal ground connection and the mains supply
ground contact.
If the Public Address installation is composed of several equipment units, their chassis will probably be
joined, either by means of the ground terminal of the mains connection, or because they are fitted in a
rack cabinet.
If the ground connections are also joined by the signal circuits, it is advisable to remove the jumper
between the ground connection and the chassis from all the units except one.
(4) SURETY PAGING: Paging security relay. Switches when a telephone call is made.
(5) VOLUME BYPASS:
(6) AUDIO OUTPUT: Audio output. It has a priority contact.
VOLUME BYPASS OFF
Front volume control enabled
(Default configuration)
VOLUME BYPASS ON
Front volume control disabled
