Optoma EP1691 User Manual

Introduction
9

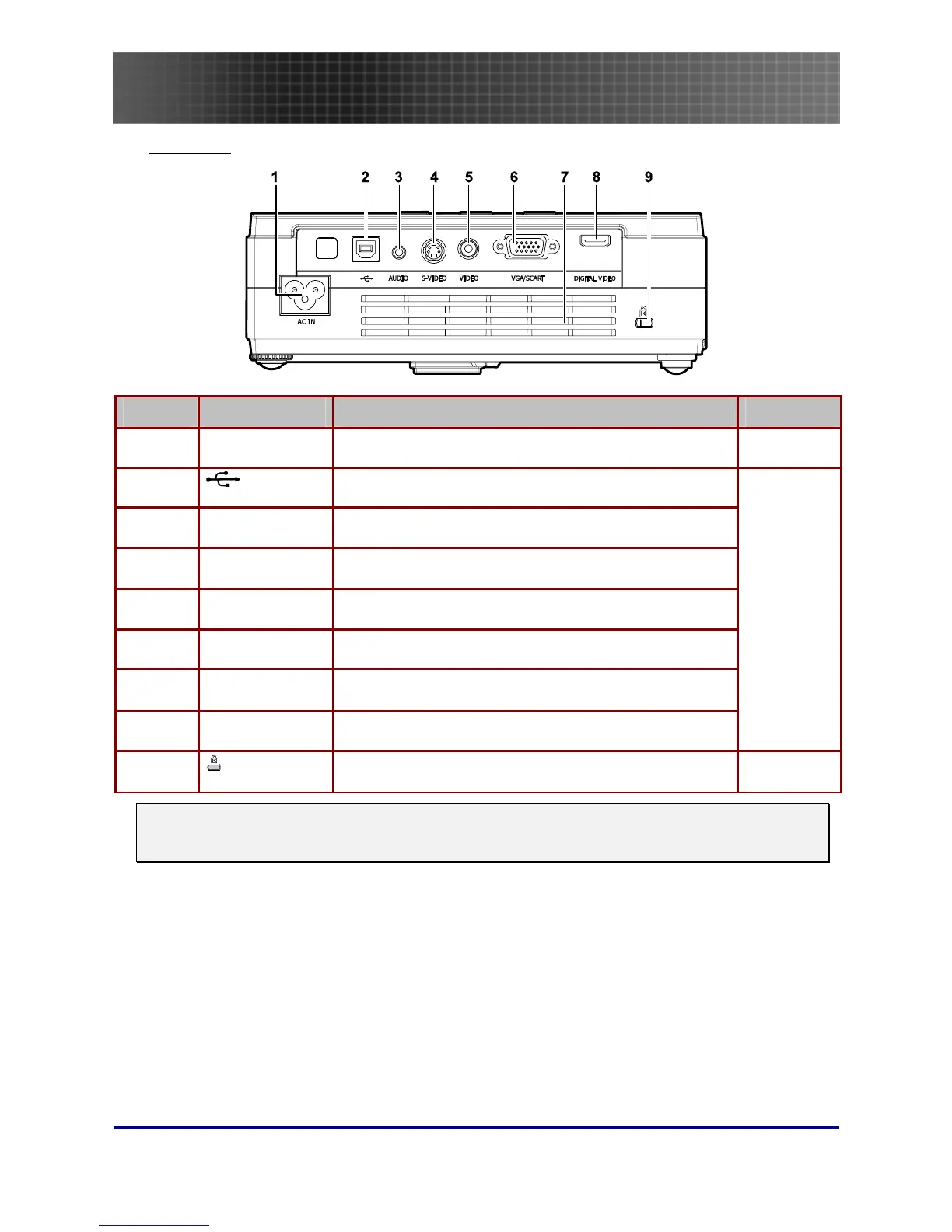

Rear view
ITEM LABEL DESCRIPTION SEE PAGE:
1.
AC IN (Power) Connect the supplied power cord
16
2.
(USB)
Connect the USB cable from a computer
3.
AUDIO Connect the audio cable from an audio input device.
4.
S-VIDEO Connect the composite or S-video cable from a video de-
vice
5.
VIDEO Connect a composite video cable from a video device.
6.
VGA/SCART Connect a VGA cable from a computer
7.
Ventilation
opening
Do not obstruct to keep the projector cool.
8.
DIGITAL VIDEO Connect a DIGITAL VIDEO cable from any video source
9.
(Security Lock)
Secure to permanent object with a Kensington® Lock
system
45
Note:
If your video equipment has both S-video and RCA jacks (composite video) connect to the S-video
connector. S-video provides a better quality signal.

Optoma EP1691 Specifications

Display

display technology	Single 0.65” DDR DMD DLP
native resolution	1280 x 768
maximum resolution	1680 x 1050

Brightness and Contrast

brightness	2500 ANSI Lumens
contrast ratio	2500:1
uniformity	85%

Lamp

lamp life (standard)	2000 Hours
lamp life (eco)	3000 Hours
lamp power	200W

Projection

aspect ratio	16:9
image size (diagonal)	0.79 to 9.43 m
projection distance	1.2 to 12.0 m

Power

power supply	AC Input 100-240V, 50 to 60 Hz
power consumption	250 Watts
power consumption (standby)	<10 Watts

Weight and Dimensions

weight	1.45 kg
dimensions	220 x 71 x 178 mm
