Optoma HD65 - Installation; Connecting the Projector

12
English
Installation
12V
TRIGGER
DVD player, Set-top Box
HDTV receiver
VGA, DVI
Video Output
S-Video Output

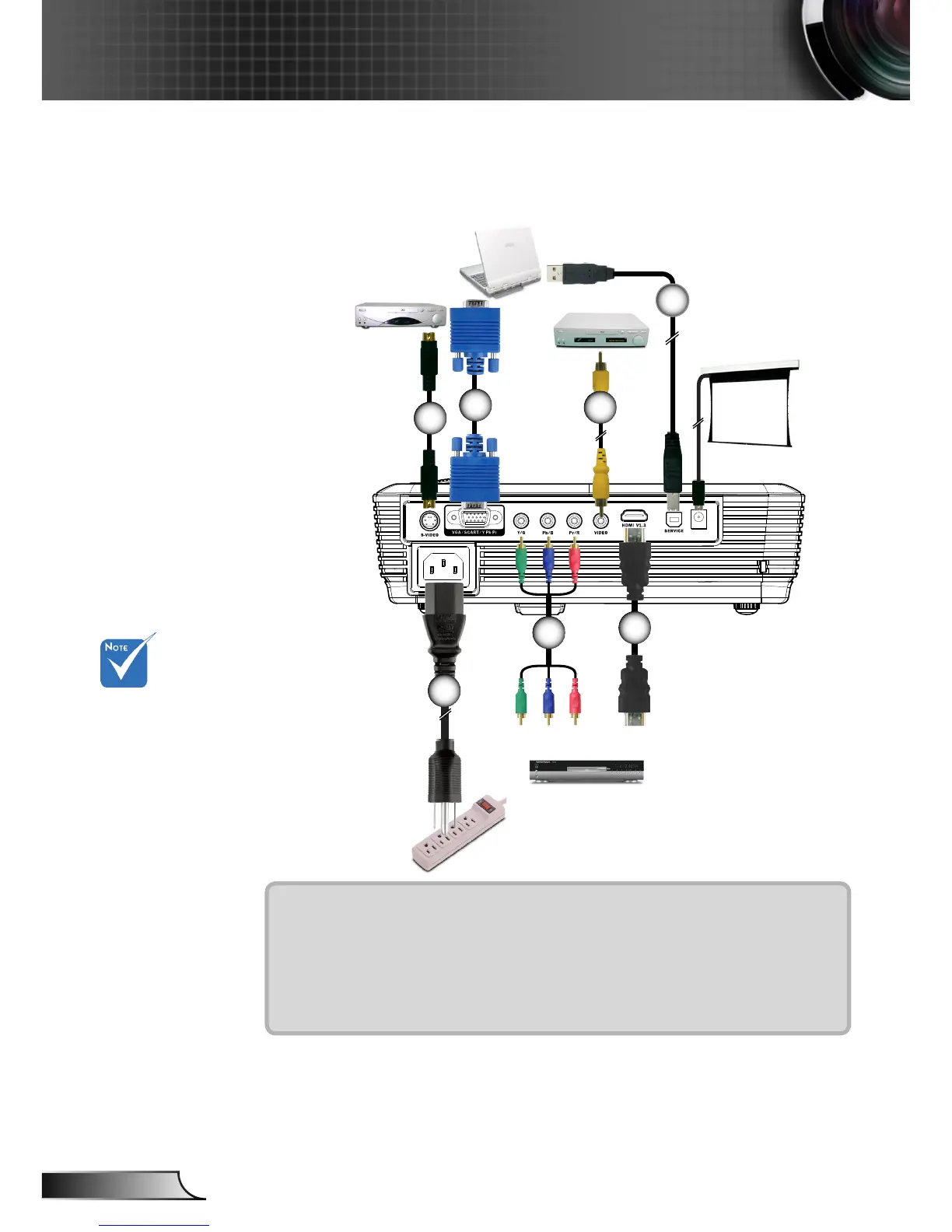

Connecting the Projector
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
1...............................................................................................................Power Cord
2..................................................................S-Video Cable (EMEA and Asia only)
3........................................................................................VGA Cable (EMEA only)
4........................................................................RCA Component Cable for YPbPr
5........................................................Composite Video Cable (Asia and US only)
6......................................................................HDMI Cable (Optional accessories)
7..........................................................................USB Cable (Optional accessories)
1
3
2
6
5
7
4
