SETUP AND INSTALLATION

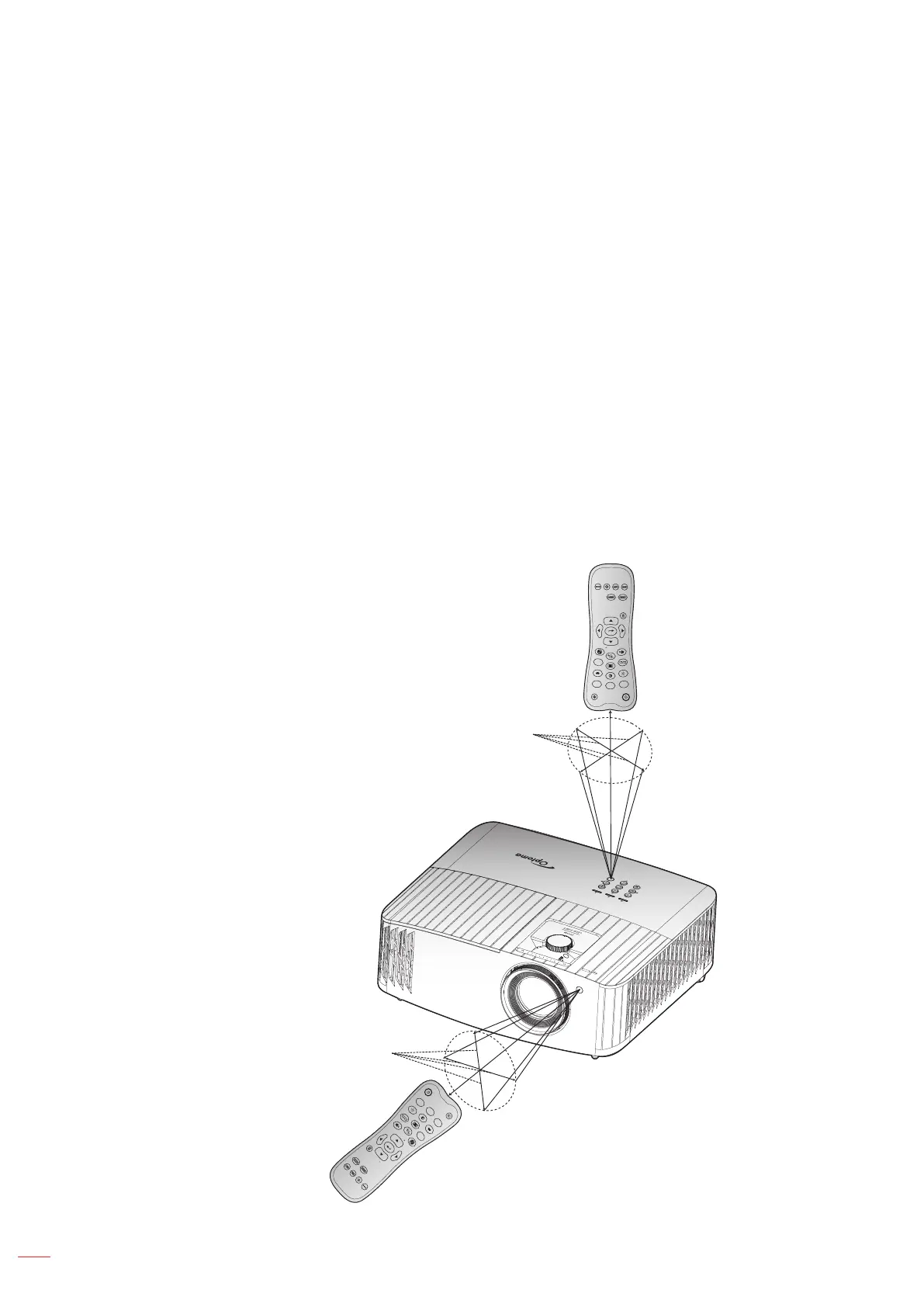

Effective range
Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an
angle within 30° perpendicular to the projector’s IR remote control sensors to function correctly. The distance
between the remote control and the sensor should not be longer than 7 meters (~22 feet).
Note: When pointing the remote control directly (0 degrees angle) on the IR sensor, the distance between the
remote control and the sensor should not be longer than 10 meters (~32 feet).
 Make sure that there are no obstacles between the remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
 Make sure the IR transmitter of the remote control is not being shined by sunlight or uorescent lamps
directly.
 Please keep the remote controller away from uorescent lamps for over 2 meters or the remote
controller might become malfunction.
 If the remote control is close to Inverter-Type uorescent lamps, it might become ineffective from time
to time.
 If the remote control and the projector are within a very short distance, the remote control might
become ineffective.
 When you aim at the screen, the effective distance is less than 7 meters from the remote control to the
screen and reecting the IR beams back to the projector. However, the effective range might change
according to screens.
ON
OFF
Menu
VGA1
HDMI1
User2
Cont rast
Aspe ct ra tio
DB
Volu me
Sour ce
Re-s ync
User1
Brig htnes s
Keys tone
Mute
User3
Mode
3D
Slee p Tim er
Volu me
HDMI2
VGA2
Video
YPbPr
ON
OFF
Menu
VGA1
HDMI1
User2
Cont rast
Aspe ct ra tio
DB
Volu me
Sour ce
Re-s ync
User1
Brig htnes s
Keys tone
Mute
User3
Mode
3D
Slee p Tim er
Volu me
HDMI2
VGA2
Video
YPbPr
Approx. ±15°
Approx. ±15°

Optoma UHD42 Specifications

General

Native aspect ratio	16:9
Projection distance	1.2 - 8.1 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31 - 135 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	500000:1
Screen size compatibility	34.1 - 302.4 \
Projector native resolution	2160p (3840x2160)
Keystone correction, vertical	-40 - 40 °
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Focus	-
Offset	105 %
Throw ratio	1.21:1 - 1.59:1
Zoom capability	Yes
Focal length range	12.81 - 16.74 mm
Vertical lens shift range	0 - 10 %
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA)
DVI port	No
HDMI version	1.4a/2.0
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	0
Noise level	26 dB
Number of OSD languages	10
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Gaming
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	305 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	220 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Remote control type	IR
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3900 g
