USING THE PROJECTOR
Powering on / off the projector
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr
or
ON
OFF
Menu
VGA1
HDMI1
User2
Contrast
Aspect ratio
DB
Volume
Source Re-sync
User1
Brightness
Keystone
Mute
User3
Mode
3D
Sleep Timer
Volume
HDMI2
VGA2 Video YPbPr

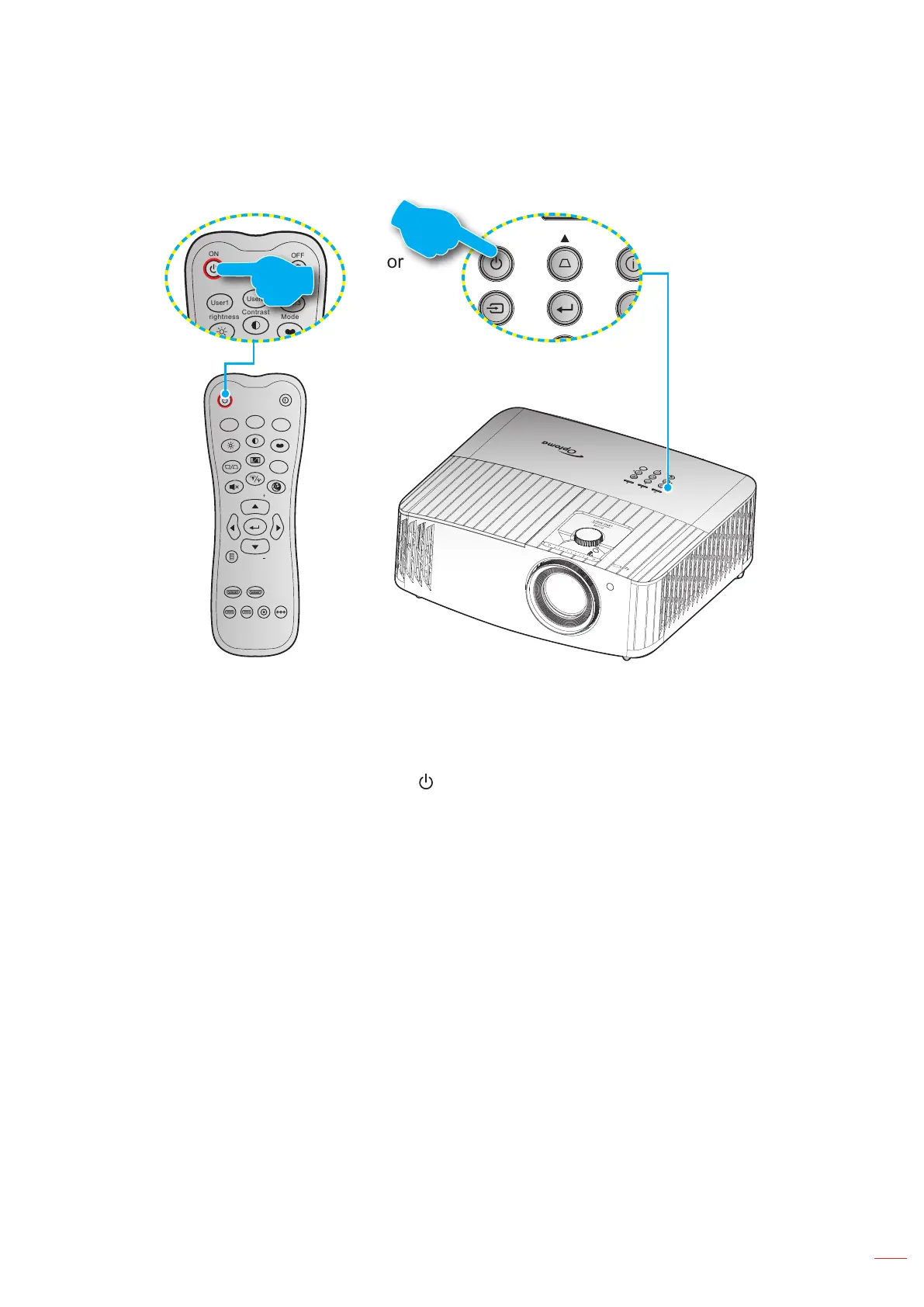

Powering on
1. Securely connect the power lead and signal/source cable. When connected, the On/Standby LED will
turn red.
2. Turn on the projector by pressing the “ ” button on the projector keypad or the remote control.
3. A start up screen will display in approximately 10 seconds and the On/Standby LED will be ashing
blue.
Note: The rst time the projector is turned on, you will be prompted to select the preferred language, projection
orientation, and other settings.

Optoma UHD42 Specifications

General

Native aspect ratio	16:9
Projection distance	1.2 - 8.1 m
Vertical scan range	24 - 120 Hz
Horizontal scan range	31 - 135 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (typical)	500000:1
Screen size compatibility	34.1 - 302.4 \
Projector native resolution	2160p (3840x2160)
Keystone correction, vertical	-40 - 40 °
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	10000 h
Focus	-
Offset	105 %
Throw ratio	1.21:1 - 1.59:1
Zoom capability	Yes
Focal length range	12.81 - 16.74 mm
Vertical lens shift range	0 - 10 %
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1600 (WQXGA)
DVI port	No
HDMI version	1.4a/2.0
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	0
Noise level	26 dB
Number of OSD languages	10
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS
RMS rated power	10 W
Placement	Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Gaming
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	305 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	220 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 85 %
Remote control type	IR
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	270 mm
Width	315 mm
Height	118 mm
Weight	3900 g
